  Home - Products -DVI Splitter

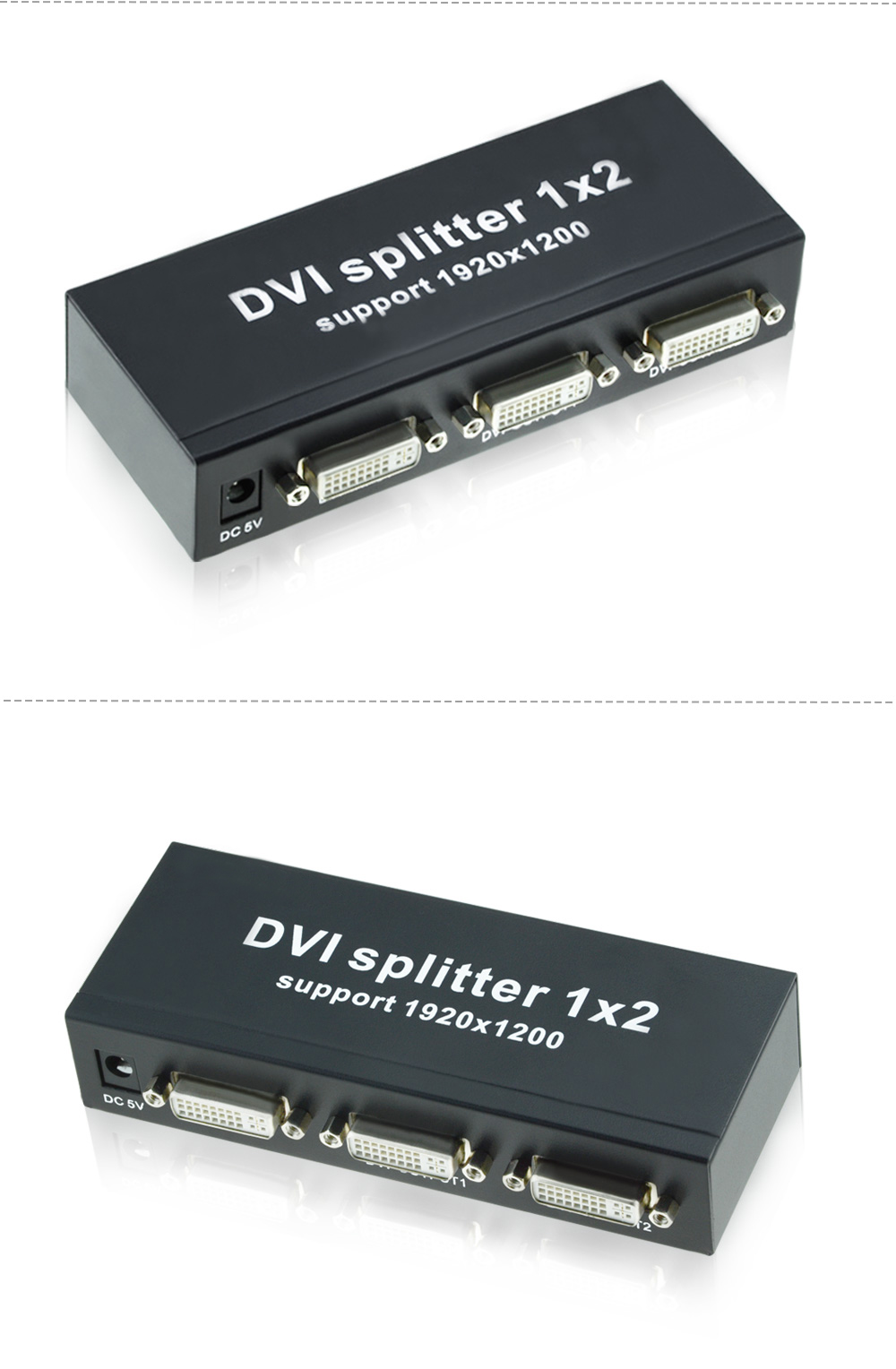

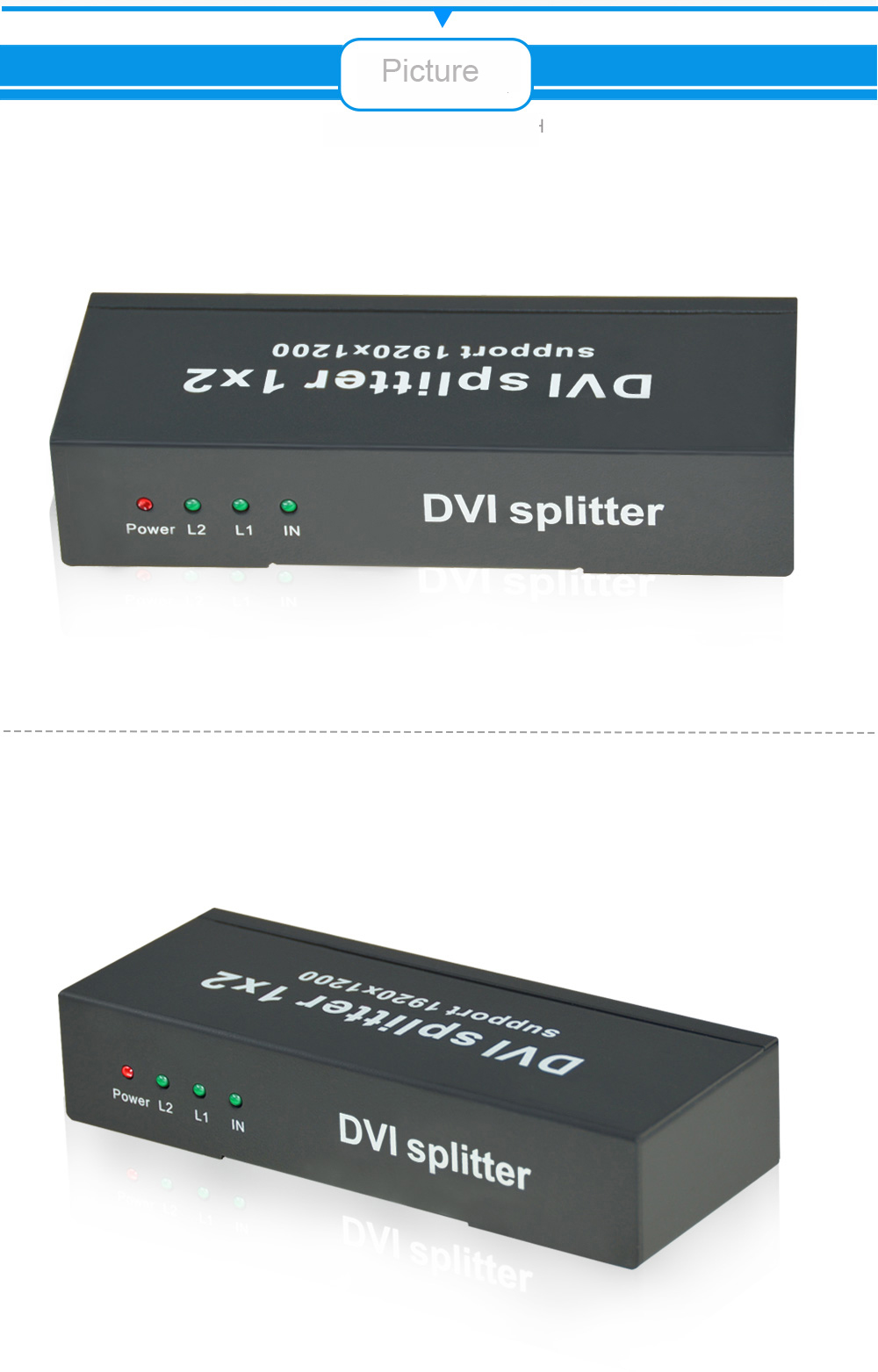

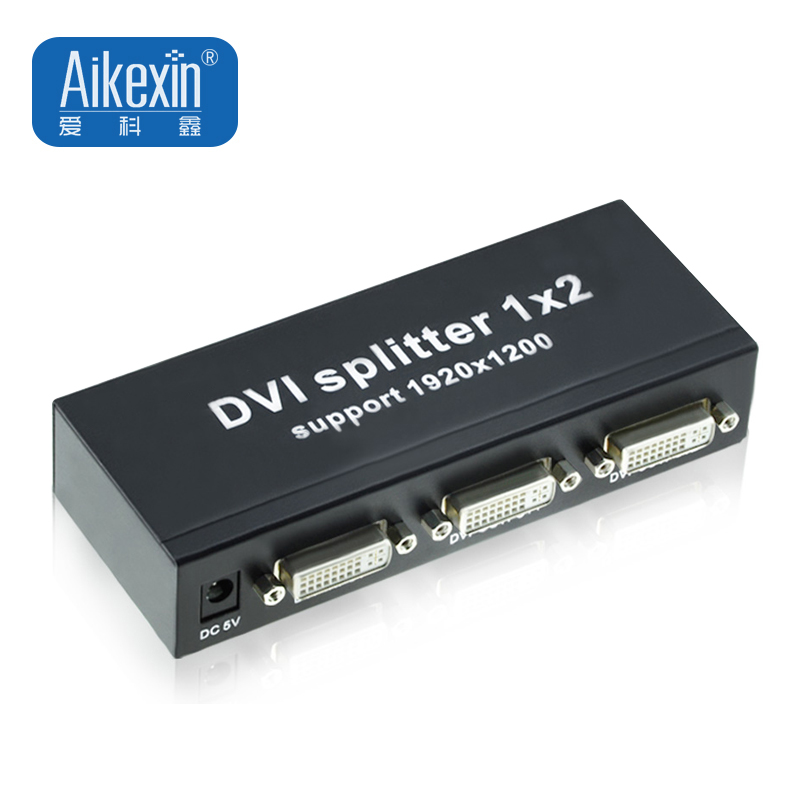

DVI102

DVI Splitter 1x2

Introduction:
2 Port DVI Splitter 1 in 2 out, 1x2 Splitter DVI Divisor 1 to 2 dvi splitter Support Resolution up to 1080p.The DVI splitter can allow multiple video display units connected to one DVI Source and display the same HD picture at the same time. So that you can share one signal source, greatly reduce the cost of system.

Description

Feature: 2 Port DVI Splitter 1 in 2 out, 1x2 Splitter DVI Divisor 1 to 2 dvi splitter Support Resolution up to 1080p

The DVI splitter can allow multiple video display units connected to one DVI Source and display the same HD picture at the same time. So that you can share one signal source, greatly reduce the cost of system.

1.1x DVI-D input and 2x DVI-D output

2.Support DVI-D signal transmission, resolution up to 1920*1200

3.Support for long distance signal transmission

4. Installs in minutes, No loss of quality

5.Supports wide range voltage DC input (DC5V)

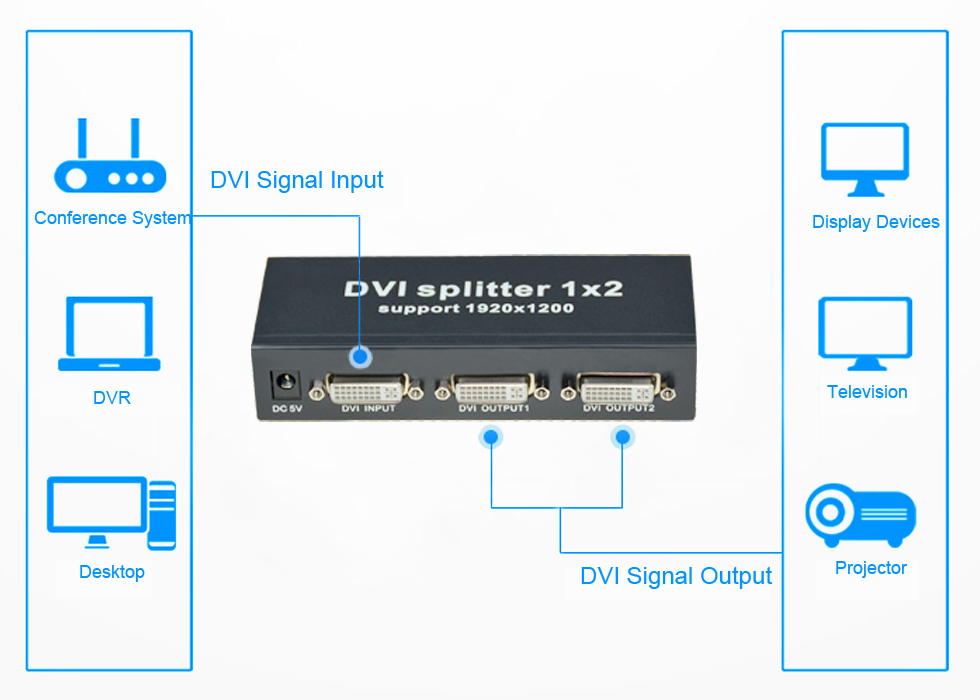

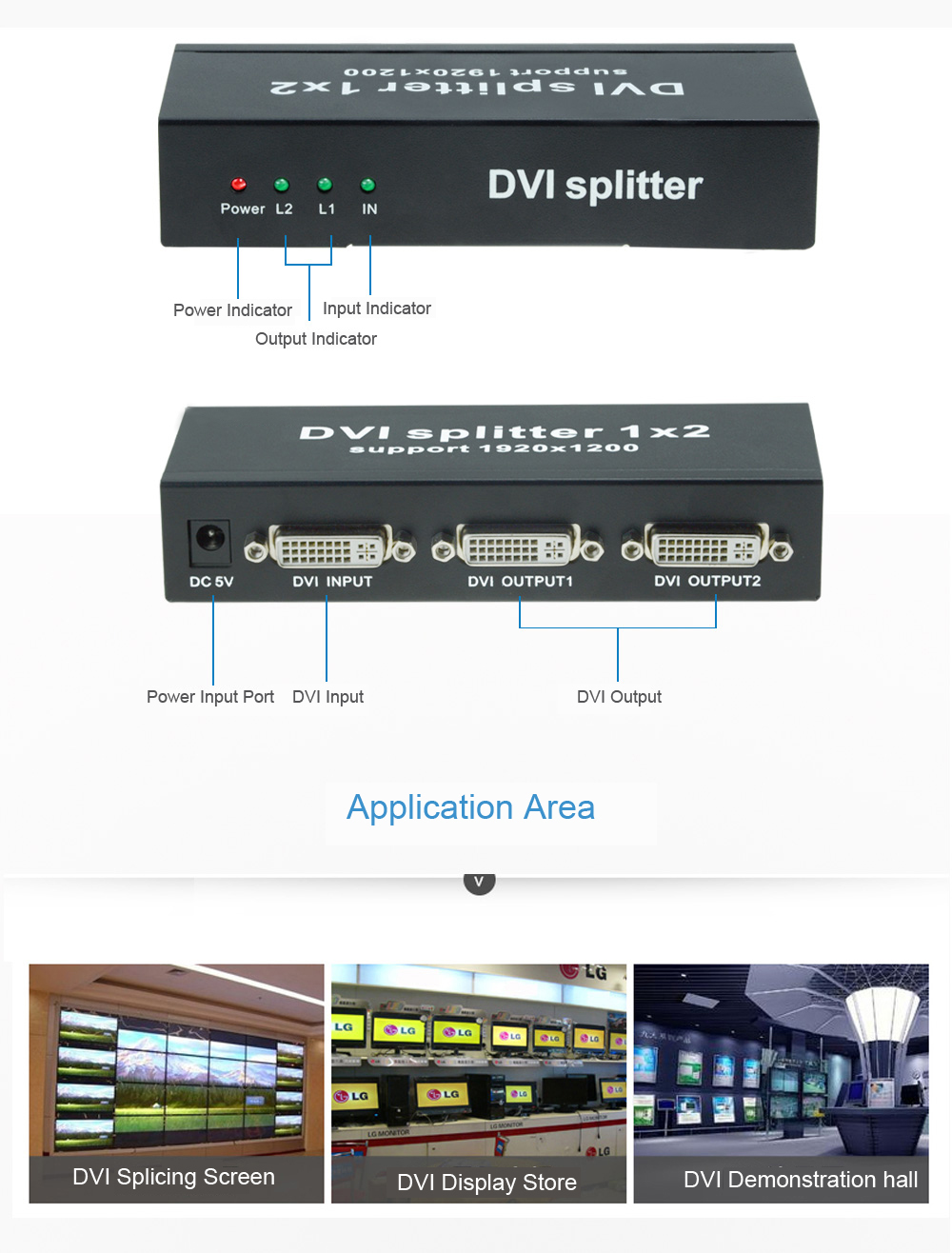

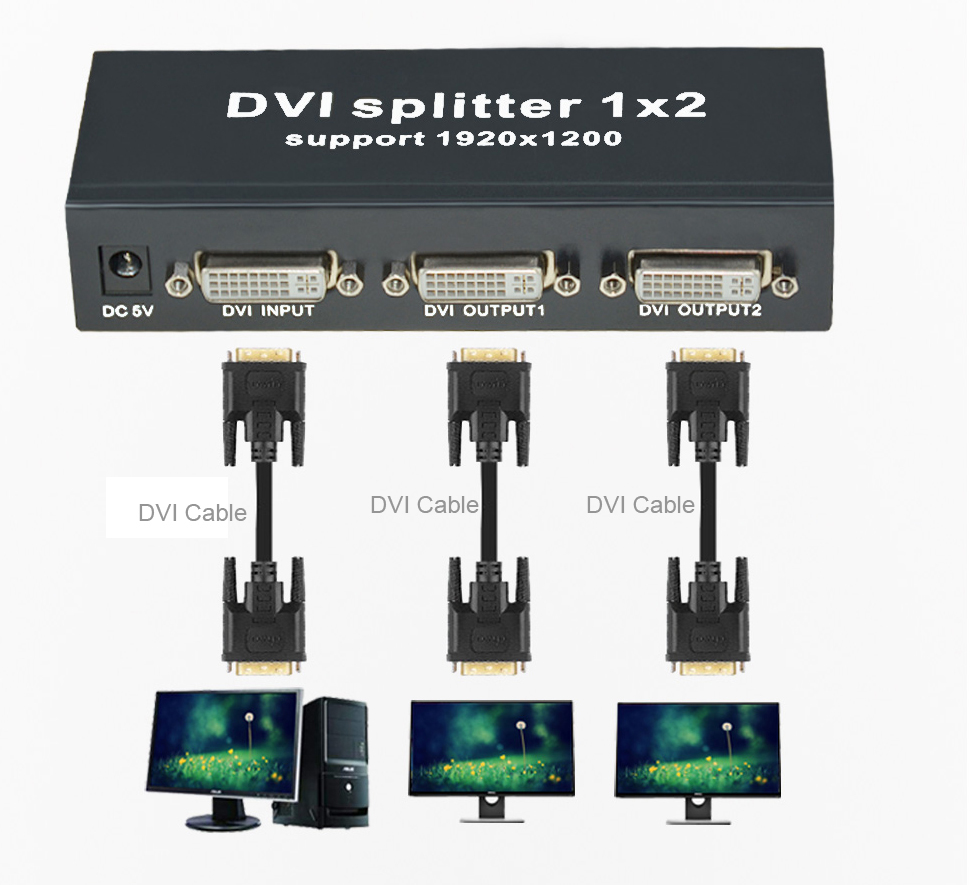

OPERATIONG AND CONNECTION:  2 Port DVI Splitter 1 in 2 out, 1x2 Splitter DVI Divisor 1 to 2 dvi splitter Support Resolution up to 1080p

1.Connect one DVI-D cable from a DVI signal source into the input port of splitter.

2.Connect DVI-D cables from TV/Monitor into the DVI output ports of splitter.

3.Connect DC plug of AC adapter to DC jack and inserted into the power socket.

SPECIFICATIONS: 2 Port DVI Splitter 1 in 2 out, 1x2 Splitter DVI Divisor 1 to 2 dvi splitter Support Resolution up to 1080p

DVI interface type ………………………….................................................................... Dual link DVI-D

Single link input/output resolution …………………………...............................up to 1920x1080@60Hz

Maxsignal bandwidth………………………………………………………….……………………..340MHz

Max baud rate…………………….………………….………………….………………3.4Gbps Serial Link

Input/Output TMDS signal ………….……………………………….……………….0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..……………………. 5Volts p-p (TTL)

DVI input cable distance…………………………………………≤10m AWM 20276 DVI standard cable

DVI output cable distance………………………………………..≤10m AWM 20276 DVI standard cable

Max working current ………………………………………….……….…….…….0.8A/5V

Power adapter …………………AC 100V-240V 50HZ/60Hz, DC5V/2A(DVISP002M1/DVISP004M1)

Operating Temperature range ……..…………….……………………………………………. -5 to +45

Storage Temperature range……………………………………………………………………. -15 to +55

Operating Humidity range ………………………….….……….……….10 to 90%RH (No Condensation)

Storage Humidity range………………………….….……….……………5 to 95%RH (No Condensation)

Case Dimension (L x W x H) ………………………………….………….145x60x30mm

Weight …….…………………………….………………………………………….…...225g

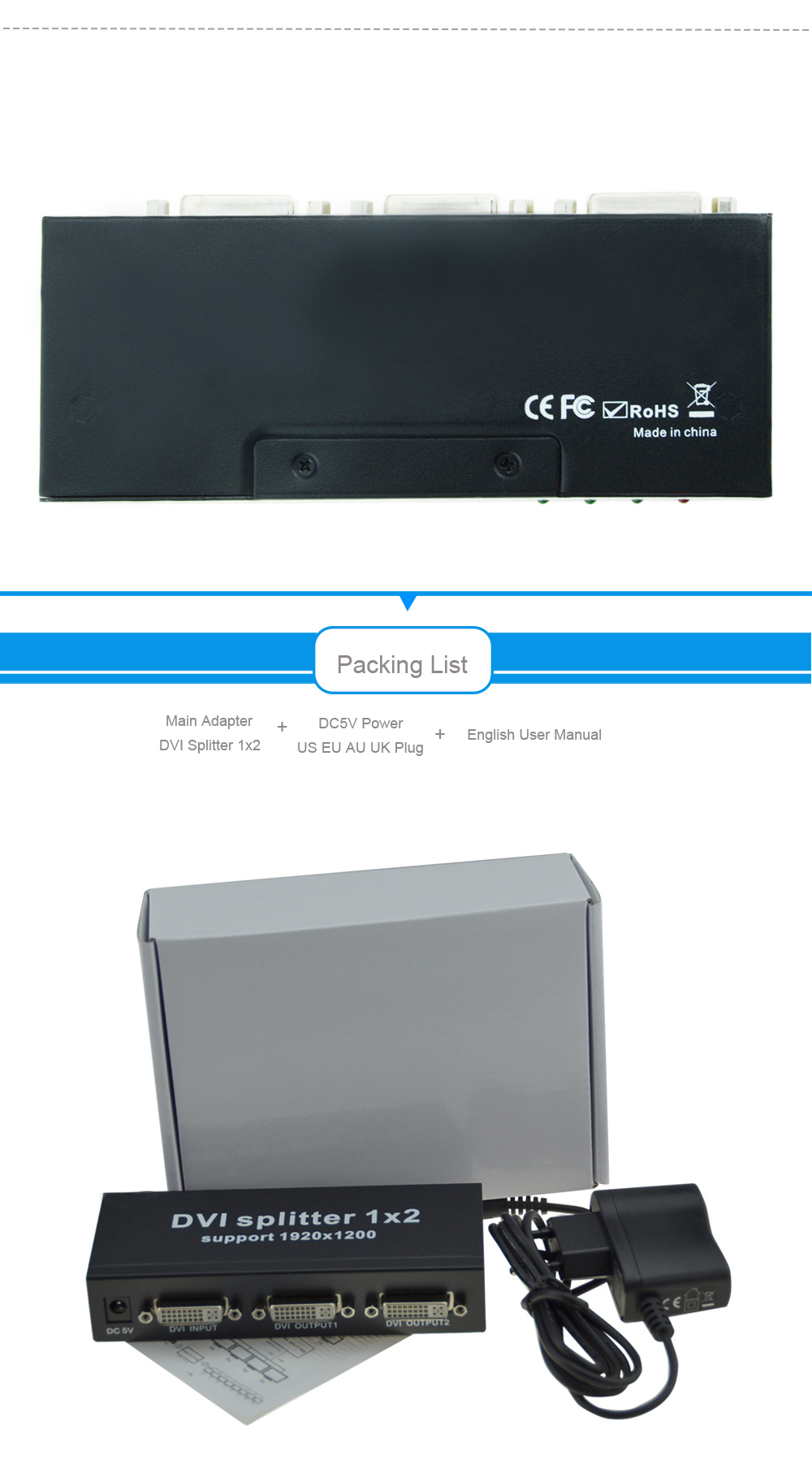

Packing List:  2 Port DVI Splitter 1 in 2 out, 1x2 Splitter DVI Divisor 1 to 2 dvi splitter Support Resolution up to 1080p

1.Main unit            1pcs

2. DC power adapter    1pcs

3.User manual         1pcs
