  Home - Products -DVI Splitter

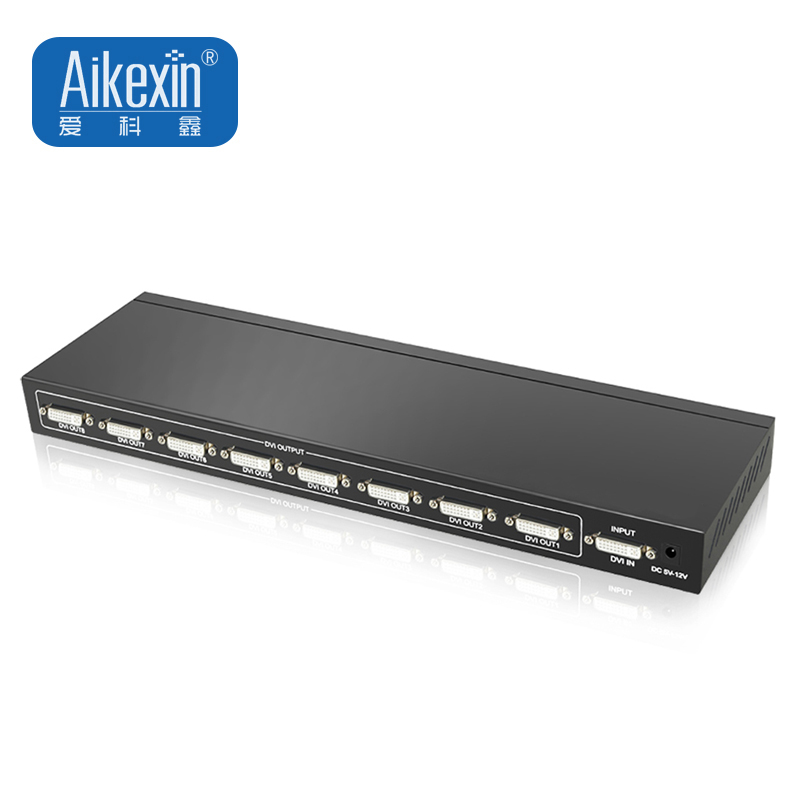

DVI108

8 Port DVI Splitter

Introduction:
The DVI splitter can allow multiple video display units connected to one DVI Source and display the same HD picture at the same time. So that you can share one signal source, greatly reduce the cost of system.

Description

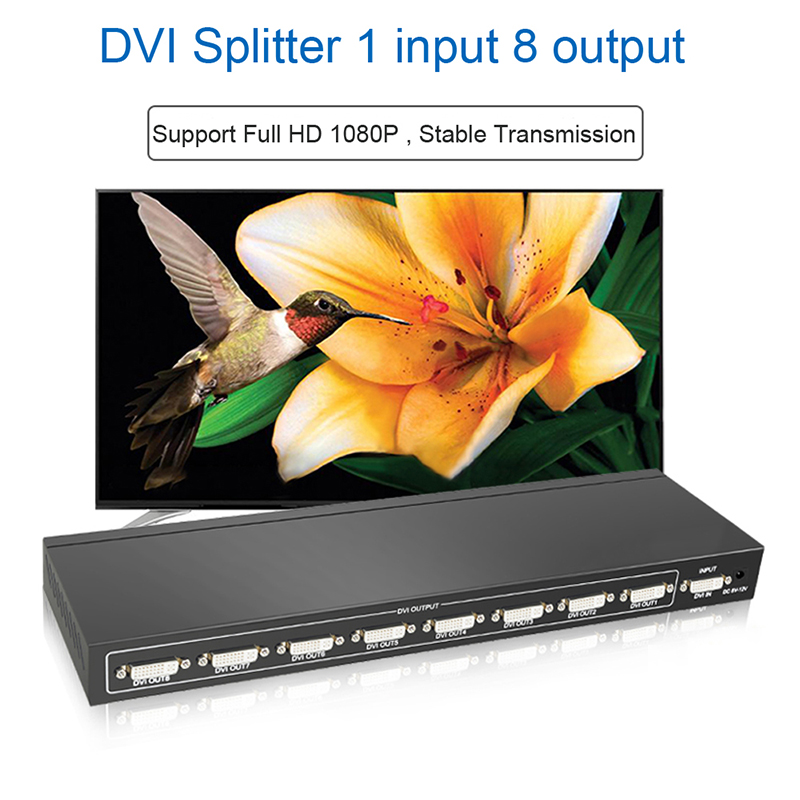

 8 Port DVI Splitter,DVI Splitter 1X8 Dual Link DVI-D Up to 1920x1440 dvi video Splitter support 3D 1080P with Power Supply















Feature:
The DVI splitter can allow multiple video display units connected to one DVI Source and display the same HD picture at the same time. So that you can share one signal source, greatly reduce the cost of system.

1.1x DVI-D input and 8x DVI-D output
2.Support DVI-D signal transmission, resolution up to 1920*1440
3.Support for long distance signal transmission
4. Installs in minutes, No loss of quality
5.Supports wide range voltage DC input (DC5V)

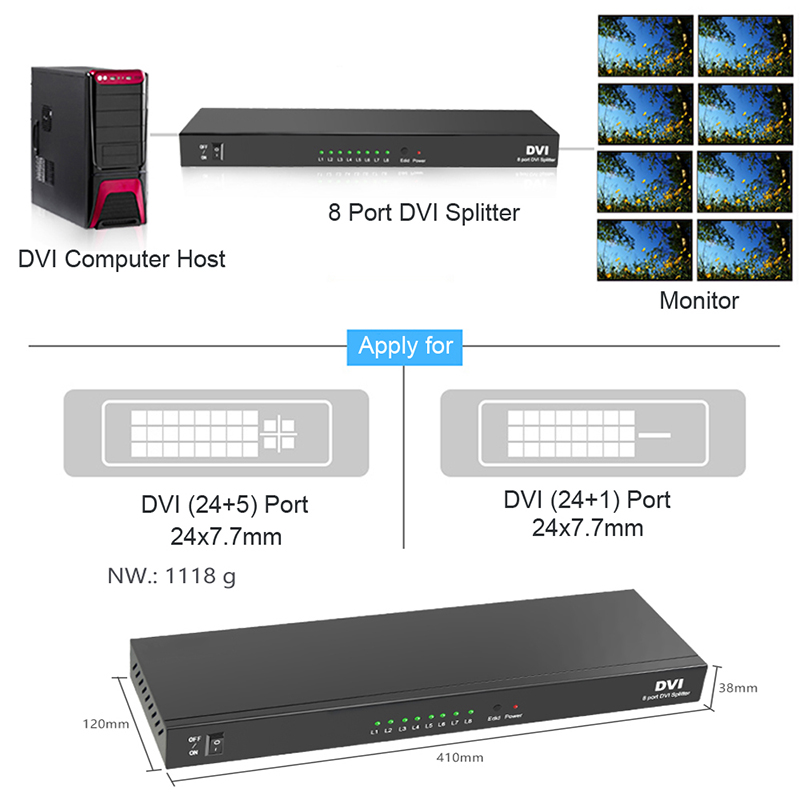

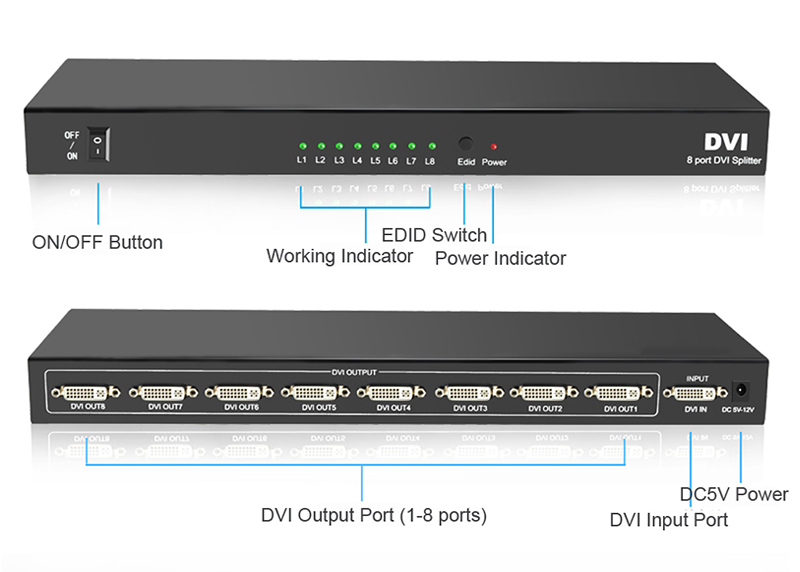

OPERATIONG AND CONNECTION:
1.Connect one DVI-D cable from a DVI signal source into the input port of splitter.
2.Connect DVI-D cables from TV/Monitor into the DVI output ports of splitter.
3.Connect DC plug of AC adapter to DC jack and inserted into the power socket.

SPECIFICATIONS:
DVI interface type: Dual link DVI-D
Single link input/output resolution:up to 1920x1440@60Hz
Maxsignal bandwidth:340MHz
Max baud rate:3.4Gbps Serial Link
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
DVI input cable distance:≤10m AWM 20276 DVI standard cable
DVI output cable distance:≤10m AWM 20276 DVI standard cable
Max working current:0.8A/5V
Power adapter:AC 100V-240V 50HZ/60Hz, DC5V/2A(DVISP002M1/DVISP004M1)
Operating Temperature range: -5 to +45
Storage Temperature range:-15 to +55
Operating Humidity range:10 to 90%RH (No Condensation)
Storage Humidity range:5 to 95%RH (No Condensation)
Case Dimension (L x W x H) :222x80x30mm
Weight:421g

Packing List:
1.Main unit-DVI Splitter 1x8           1pcs
2.DC5V power adapter    1pc    ( US EU UK AU Power Supply for your choice )
3.User manual         1pc
