  Home - Products -Digital Converter

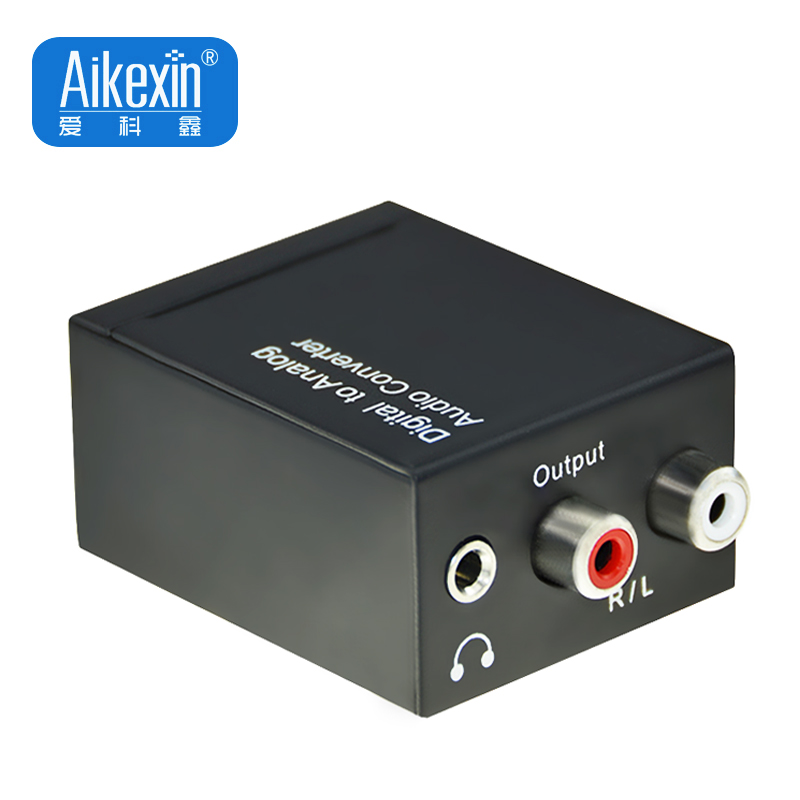

DK201A

Digital to Analog Audio Converter

Introduction:
This digital to analog audio converter is designed for either house or professional audio switching.
Connect to TV with a Toslink cable (also called Digital SPDIF or Optical Cable) or Coaxial cable.
Connect to amplifier with a RCA Audio cable or headphone with a 3.5mm Stereo Jack cable simultaneously
This Converter is small in size and quite easy to install.

Description

Digital to Analog Audio Converter,Mini DAC Optical SPDIF Coaxial to RCA L/R 3.5mm Audio Converter with 3.5mm Audio/AUX

This digital to analog audio converter is designed for either house or professional audio switching.
Connect to TV with a Toslink cable (also called Digital SPDIF or Optical Cable) or Coaxial cable.
Connect to amplifier with a RCA Audio cable or headphone with a 3.5mm Stereo Jack cable simultaneously
This Converter is small in size and quite easy to install.



Features:
1. Converts Coaxial or Toslink Digital Audio Signals to Analog L/R RCA & 3.5mm Jack Audio Simultaneously (Not Support Reversed)
2. Support Connect to an amplifier via standard RCA jacks or a headphone via 3.5mm jack cable
3. Supports sampling rate at 32KHz, 44.1KHz, 48KHz and 96KHz
4. 24-bit SPDIF incoming bit stream on left and right channels
5. Provides electromagnetic-noise-free transmission



NOTE:When connected to the Toslink and Coaxial cables at the same, the product will give priority to Toslink input
This converter doesn't support Dolby Digital



Specifications:
Color: Black
Weight(g): 81g
Dimension: 51.5mm x 41mm x 25.5mm
Consumption: 0.5W (Max)
Powered by USB Power Cable(Power Adapter is Not Included)

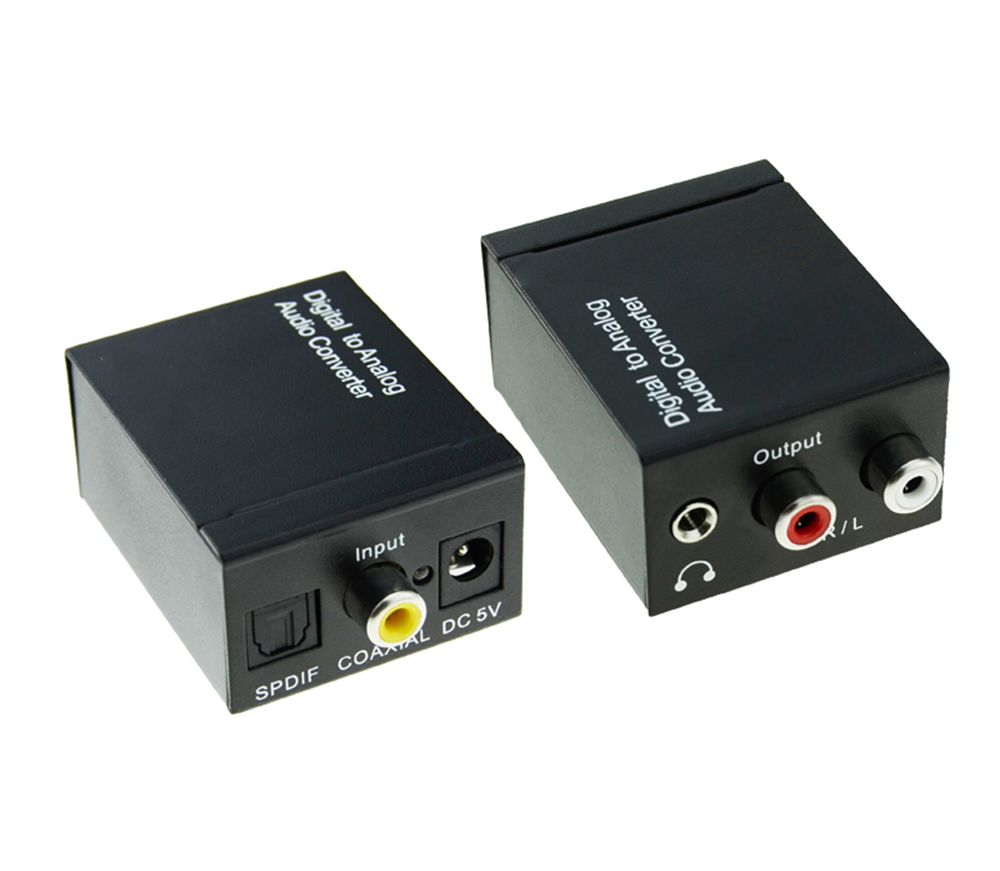

Input Audio Connector: Toslink, RCA (Coaxial)
Output Audio Connector: RCA(R/L), 3.5mm Jack



Package List:
1 x Digital to Analog Audio Converter
1 x Toslink Cable (Optical cable)
1 x USB Power Cable
1 x User Manual
