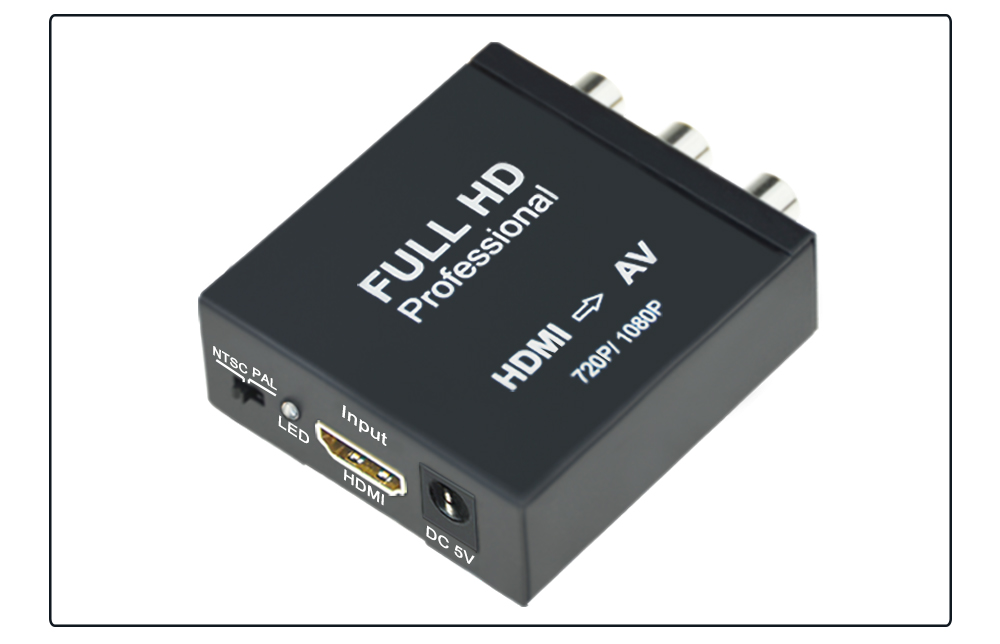

DK003PM

HDMI to AV Converter

Introduction:
The HDMI to AV signal converter in metal which will convert HDMI video signal or audio signal to AV(CVBS)composite video signal and the FL/FR stereo audio signals, while support DVI system sideline signals.To help users convert the high quality of the HDMI video signal into normal CVBS signal(standard-definition 480i, 576i).
So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.

Description

Model: DK003KM-HDMI to AV Metal Case
Description:    HDMI to AV Converter,HDM Input to RCA Composite CVBS AV Output HDMI2AV HDMI2RCA Audio Video Converter support 1080p,3D
The HDMI to AV signal converter in plastic or metal which will convert HDMI video signal or audio signal to AV(CVBS)composite video signal and the FL/FR stereo audio signals, while support DVI system sideline signals.To help users convert the high quality of the HDMI video signal into normal CVBS signal(standard-definition 480i, 576i).
So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.

Features:  HDMI to AV Converter,HDM Input to RCA Composite CVBS AV Output HDMI2AV HDMI2RCA Audio Video Converter support 1080p,3D
1. No need to install drivers, portable,flexible, plug and play.
2. Low power:
3. Output the audio synchronization with video.
4. High bandwidth capability support 1920x1080@60Hz.
5. Compatible HDMI 1.3.

Specifications:
 HDMI to AV Converter,HDM Input to RCA Composite CVBS AV Output HDMI2AV HDMI2RCA Audio Video Converter support 1080p,3D

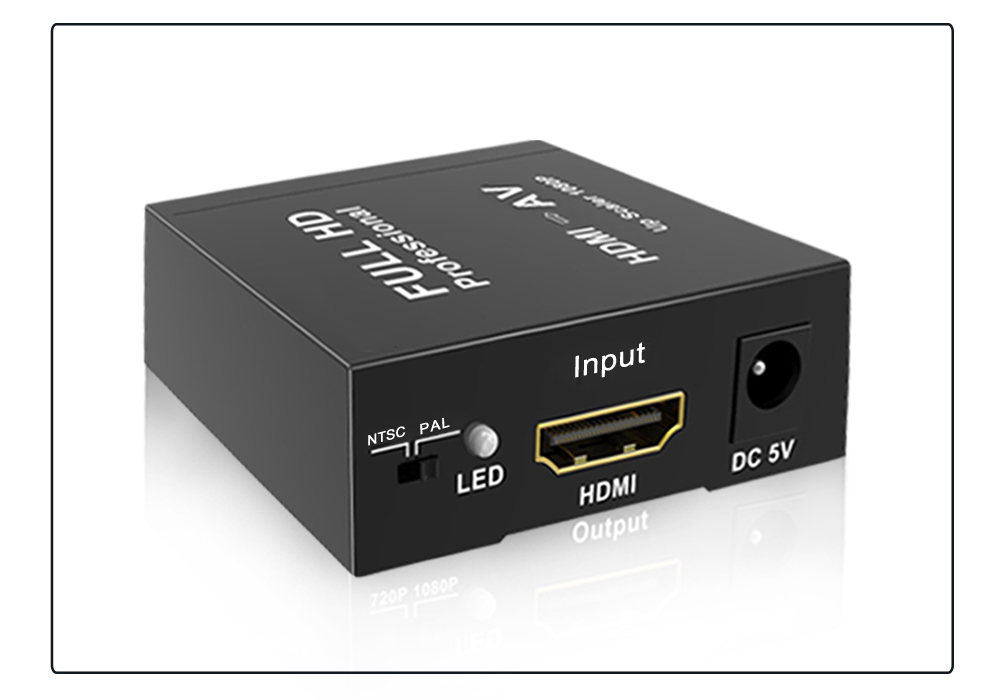

Input ports: HDMI type female

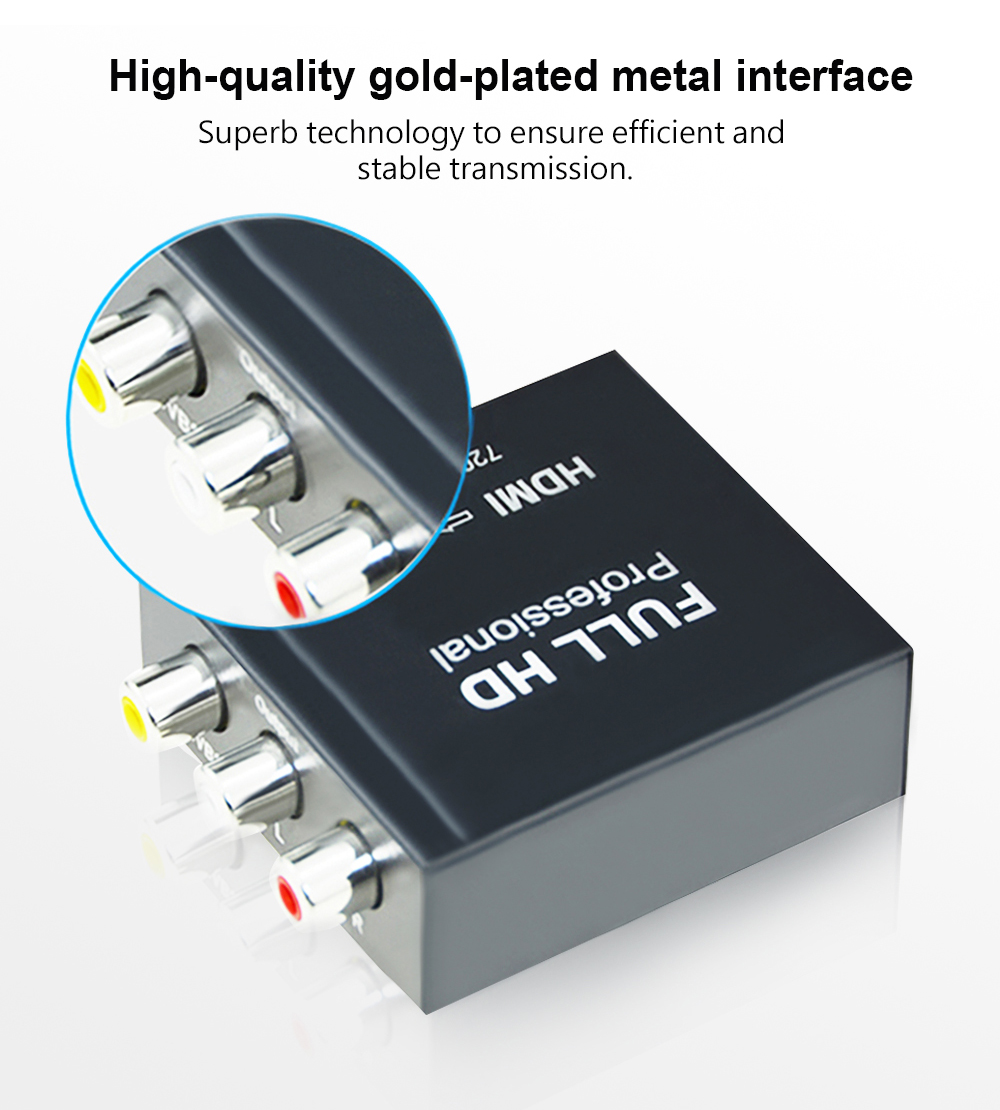

Output ports: AV RCA (Yellow, White, Red).
Dimensions: 60 x 55 x 21mm for HDMI to AV Converter in metal.
Package Weight:81g for HDMI to AV Converter in metal
Color:Black,
b

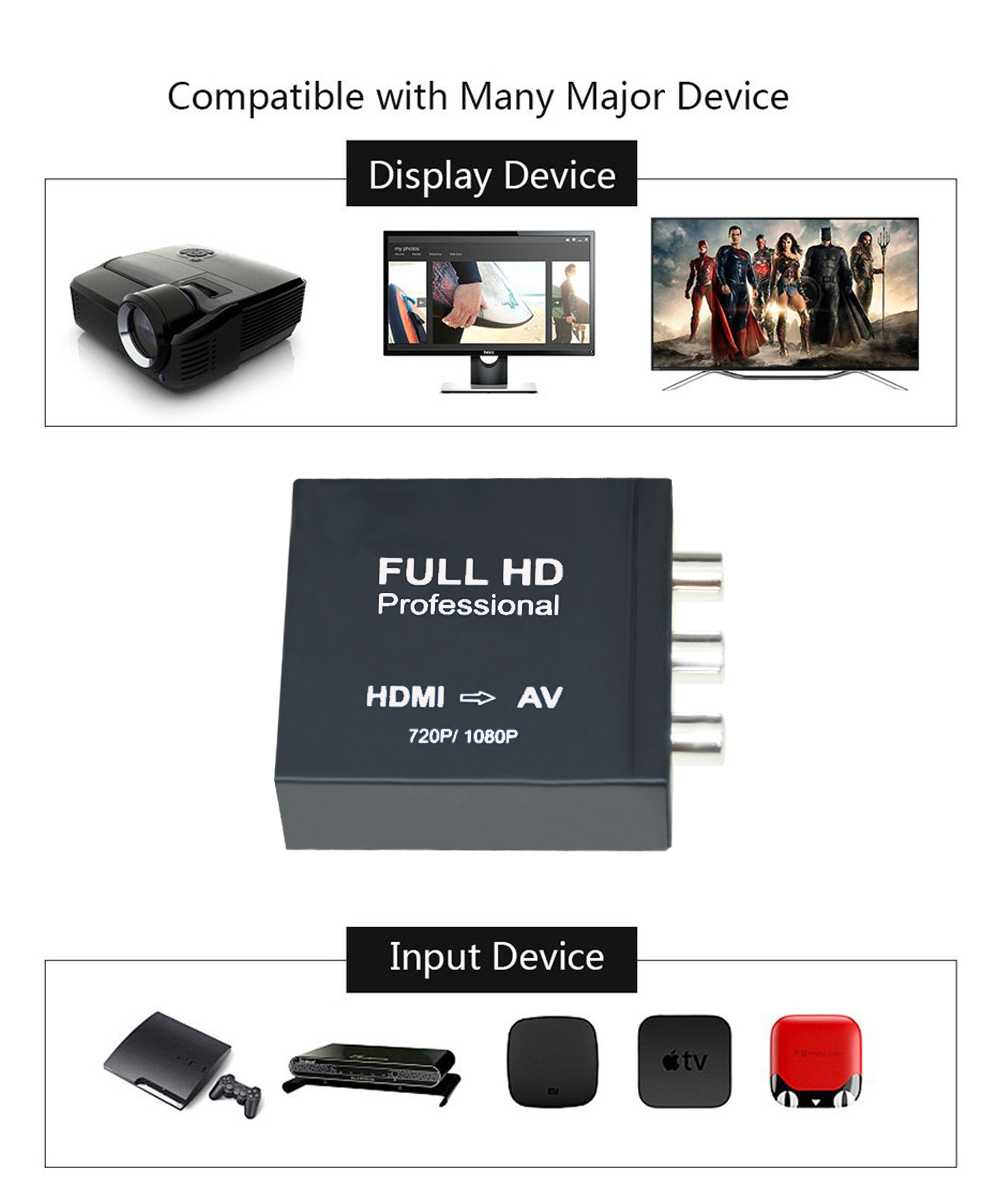

Application Example: HD camera, HD DVD, Displayer, Earphone, Projection

Resolution Support:
640x480at60Hz,800x600at60Hz,1024x768at60Hz,1280x720at60Hz,1280x1024at60Hz,1360x768at60Hz,1600x1200at60Hz,1920x1080at60Hz.180i/60Hz,480p/60Hz,576i/60Hz,576p/60Hz,720p50/60Hz,1080I50/60Hz,1080p/60Hz.
CVBS output:PAL, NTSC_M, and NTSC_J.

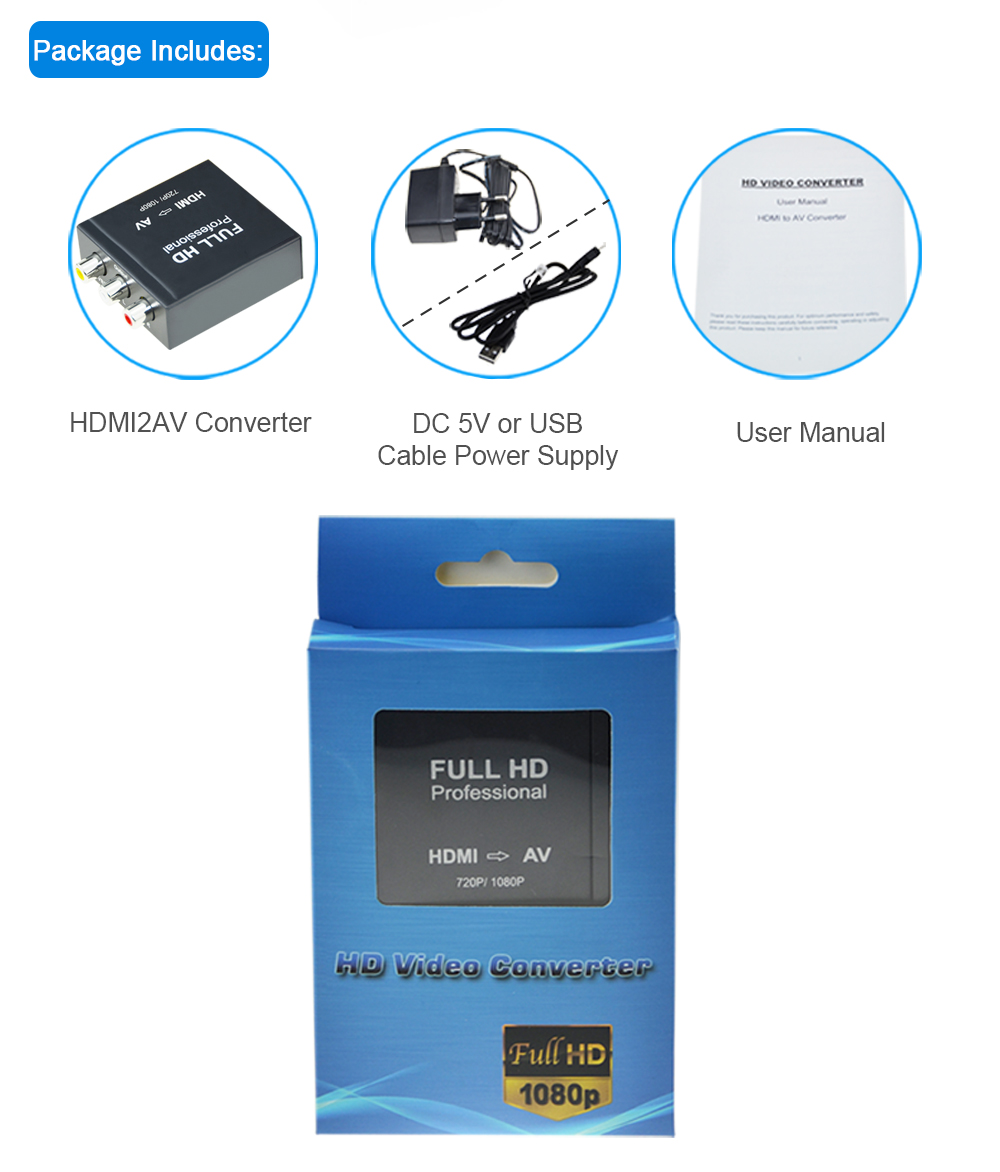

Package List:  HDMI to AV Converter,HDM Input to RCA Composite CVBS AV Output HDMI2AV HDMI2RCA Audio Video Converter support 1080p,3D
HDMI to AV converter in Metal case
DC Power supply
English User Manual
