  Home - Products -HDMI Converter


DK003KM

HDMI to AV Converter

Introduction:
The HDMI to AV signal converter in metal which will convert HDMI video signal or audio signal to AV(CVBS)composite video signal and the FL/FR stereo audio signals, while support DVI system sideline signals.To help users convert the high quality of the HDMI video signal into normal CVBS signal(standard-definition 480i, 576i).
So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.

Description

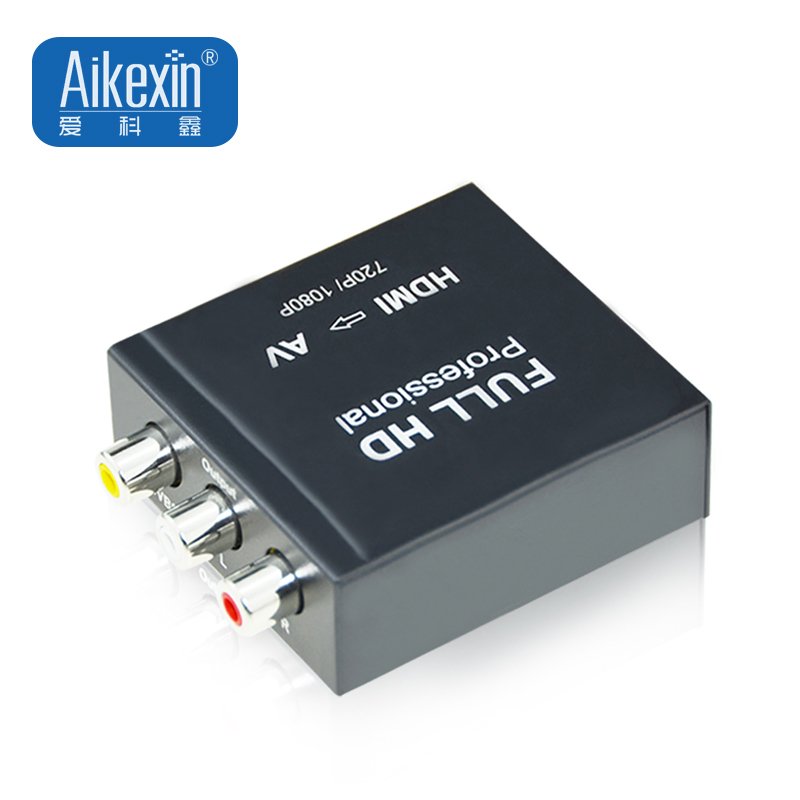

Model: DK003KM-HDMI to AV Metal Case

Description:
The HDMI to AV signal converter in plastic or metal which will convert HDMI video signal or audio signal to AV(CVBS)composite video signal and the FL/FR stereo audio signals, while support DVI system sideline signals.To help users convert the high quality of the HDMI video signal into normal CVBS signal(standard-definition 480i, 576i).
So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.

Features:
1. No need to install drivers, portable,flexible, plug and play.
2. Low power:
3. Output the audio synchronization with video.
4. High bandwidth capability support 1920x1080@60Hz.
5. Compatible HDMI 1.3.

Specifications:

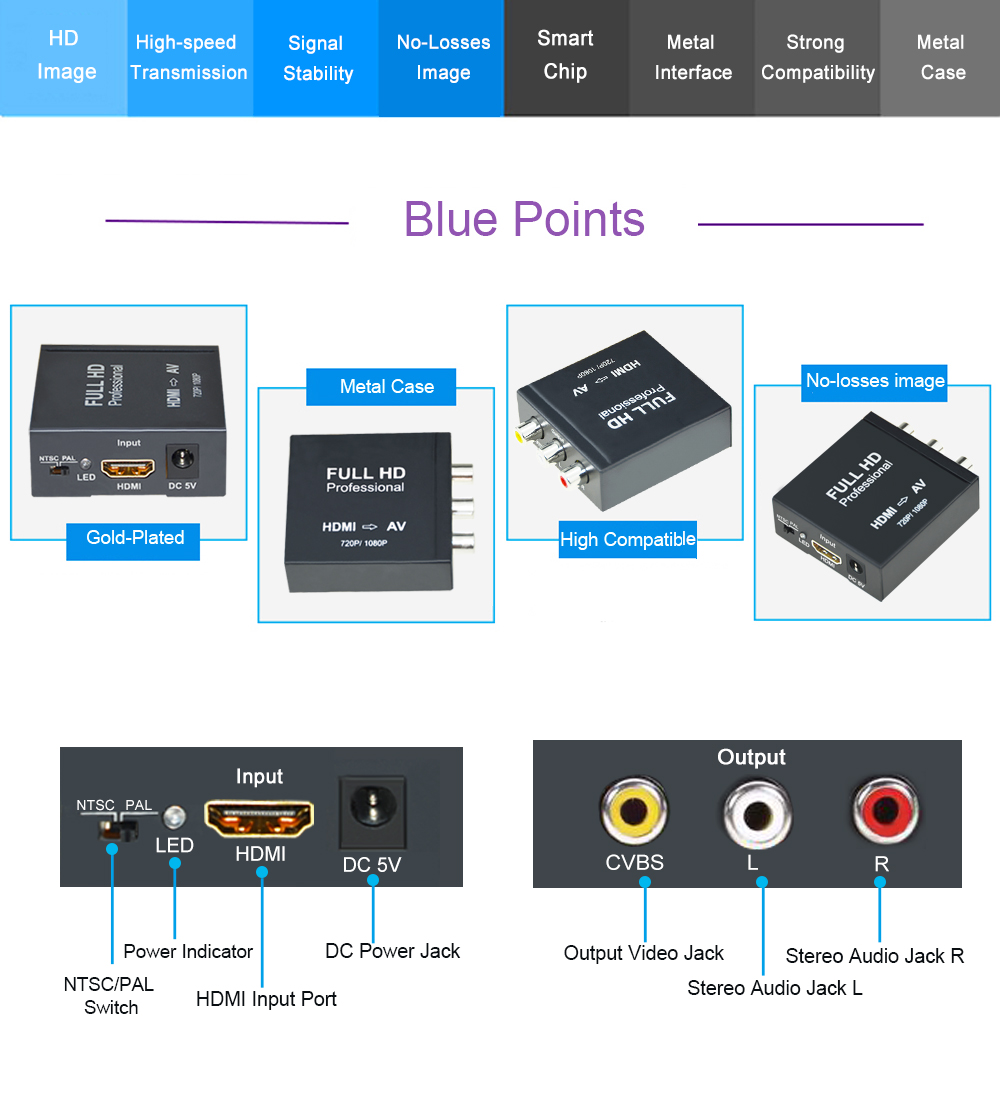

Input ports: HDMI type female
Output ports: AV RCA (Yellow, White, Red).
Dimensions: 60 x 55 x 21mm for HDMI to AV Converter in metal.
Package Weight:81g for HDMI to AV Converter in metal
Color:Black

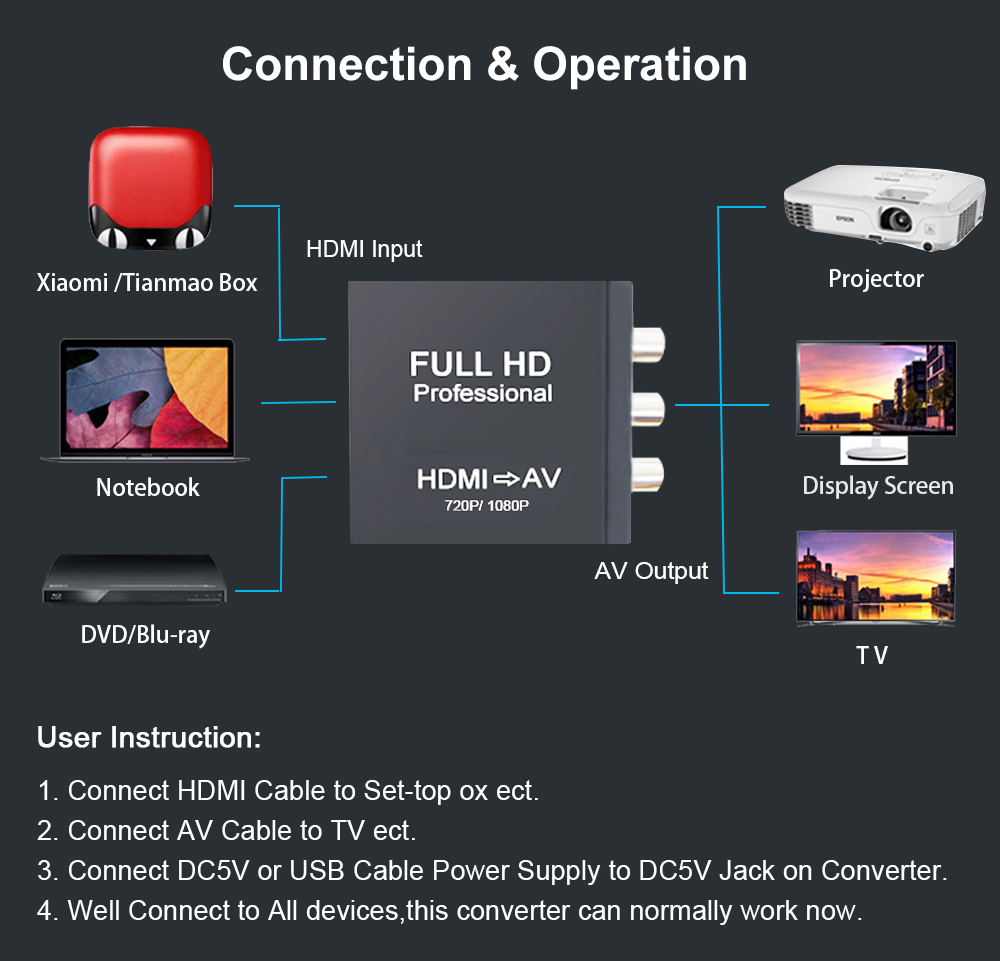

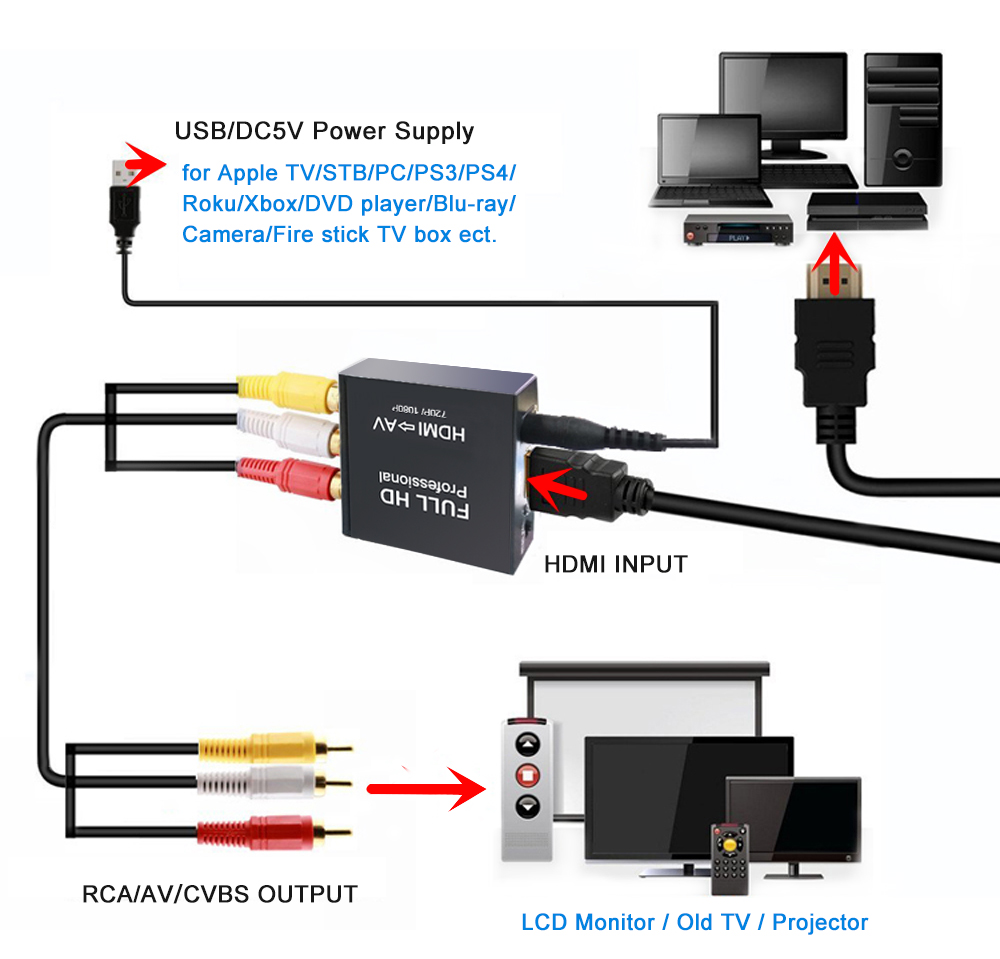

Application Example: HD camera, HD DVD, Displayer, Earphone, Projection

Resolution Support:
640x480at60Hz,800x600at60Hz,1024x768at60Hz,1280x720at60Hz,1280x1024at60Hz,1360x768at60Hz,1600x1200at60Hz,1920x1080at60Hz.180i/60Hz,480p/60Hz,576i/60Hz,576p/60Hz,720p50/60Hz,1080I50/60Hz,1080p/60Hz.
CVBS output:PAL, NTSC_M, and NTSC_J.


Package List:
HDMI to AV converter in Metal case
DC Power supply
English User Manual
