  Home - Products -HDMI Matrix

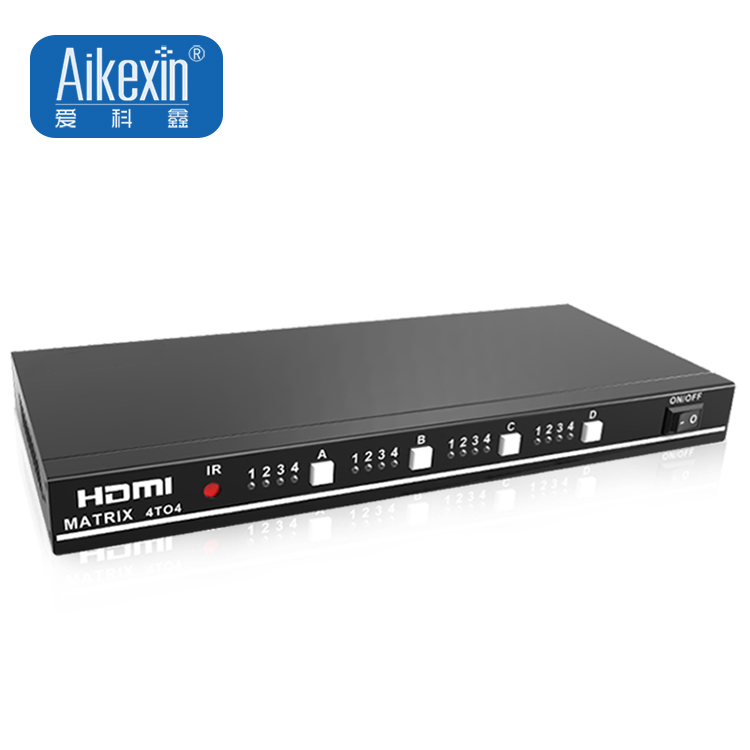

DK404

HDMI True Matrix 4X4

Introduction:
The 4x4 HDMI matrix access to four HDMI sinks, using four HDMI sources. The matrix allows four HDMI devices to be switched or split easily to four HDMI compatible monitors or projectors. The Matrix can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.



Description

4x4 HDMI True Matrix 4 input 4 output HDMI Switch Splitter 1.3b support 1920x1080 at 60Hz,RS232 & Remote Control Switcher

INTRODUCTION :
The 4x4 HDMI matrix access to four HDMI sinks, using four HDMI sources. The matrix allows four HDMI devices to be switched or split easily to four HDMI compatible monitors or projectors. The Matrix can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

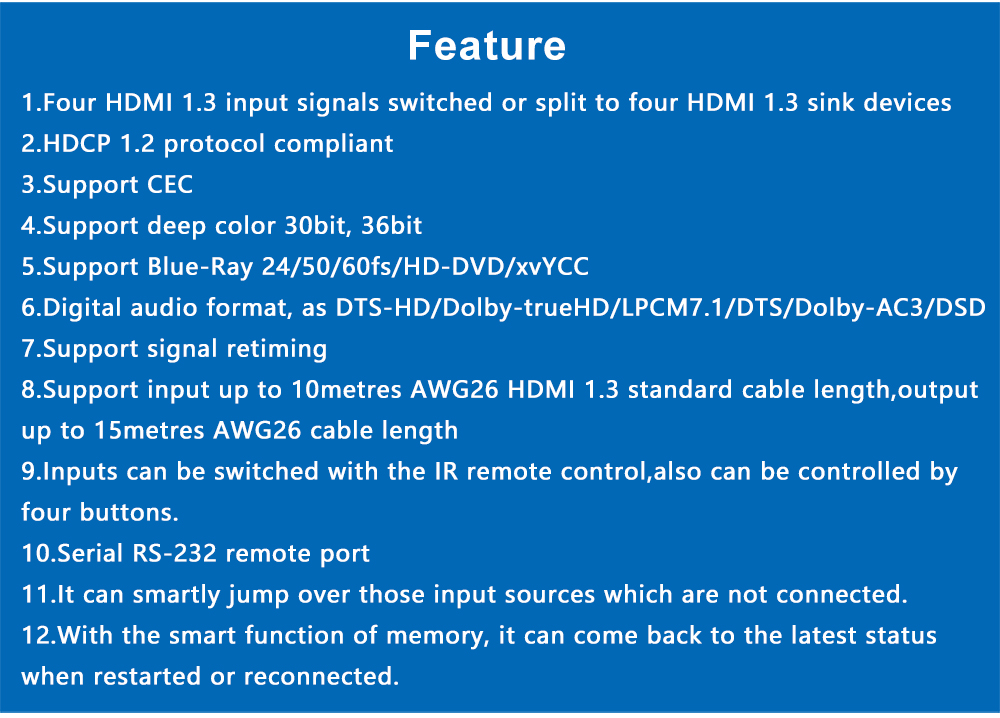

FEATURE:

1.Four HDMI 1.3 input signals switched or split to four HDMI 1.3 sink devices
2.HDCP 1.2 protocol compliant
3.Support CEC
4.Support deep color 30bit, 36bit
5.Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
6.Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
7.Support signal retiming
8.Support input up to 10metres AWG26 HDMI 1.3 standard cable length,output up to 15metres AWG26 cable length

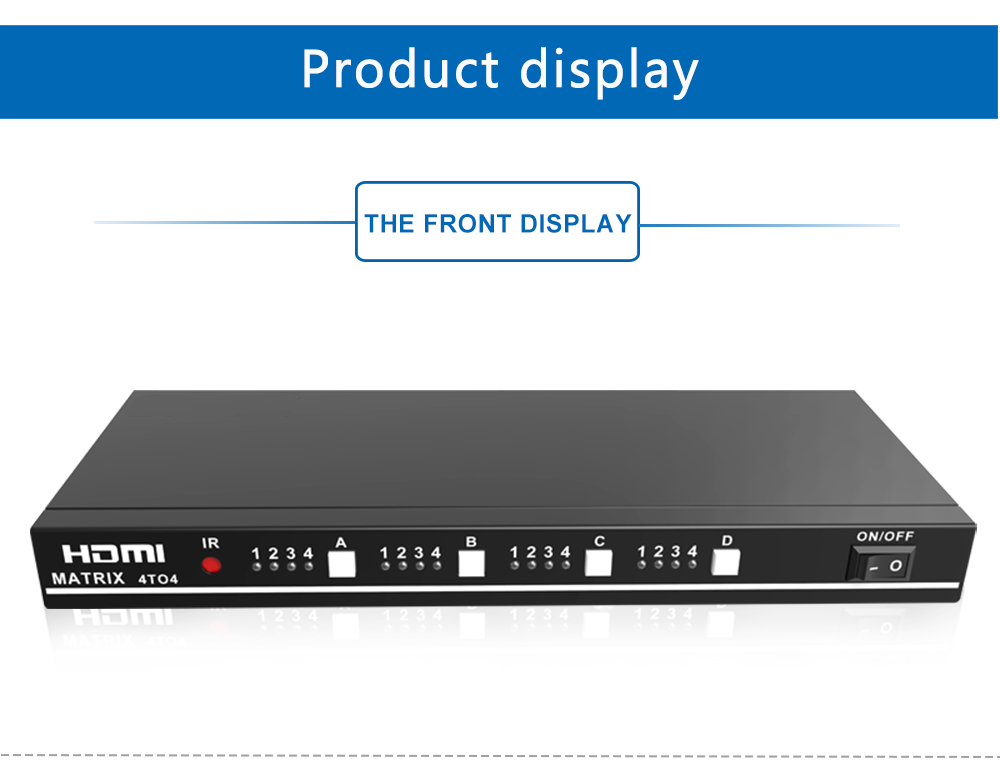

9.Inputs can be switched with the IR remote control,also can be controlled by four buttons.

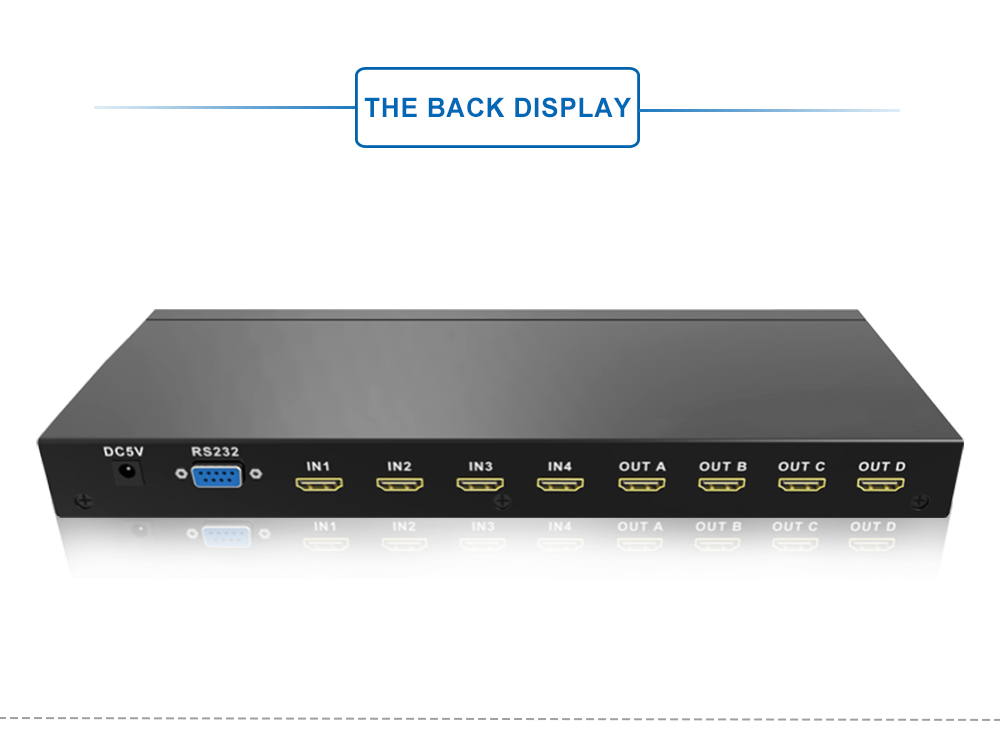

10.Serial RS-232 remote port
11.It can smartly jump over those input sources which are not connected.
12.With the smart function of memory, it can come back to the latest status when restarted or reconnected.
13.No loss of quality
14.Installs in minutes
15.Need DC5V power supply

SPECIFICATION:
HDMI resolution:24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio color format:36bit
Support audio format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max baud rate:2.25GBPS
Input and output TMDS signal:0.5~1.5Volts p-p
Input and output DDC signal:5Volts p-p (TTL)
Input cable distance:≤10m HDMI AWG26
Output cable distance:≤15m AWG26 HDMI standard cable
Max working current:2.0A
Power adapter format Input:input:AC(50HZ, 60HZ) 100V-240V;output: DC5V
Operating Temperature range:(-15 to +55℃)
Working humidity range:5 to 90%RH (No Condensation)
Dimension (L x W x H):310*150*36mm)
Weight:1800g

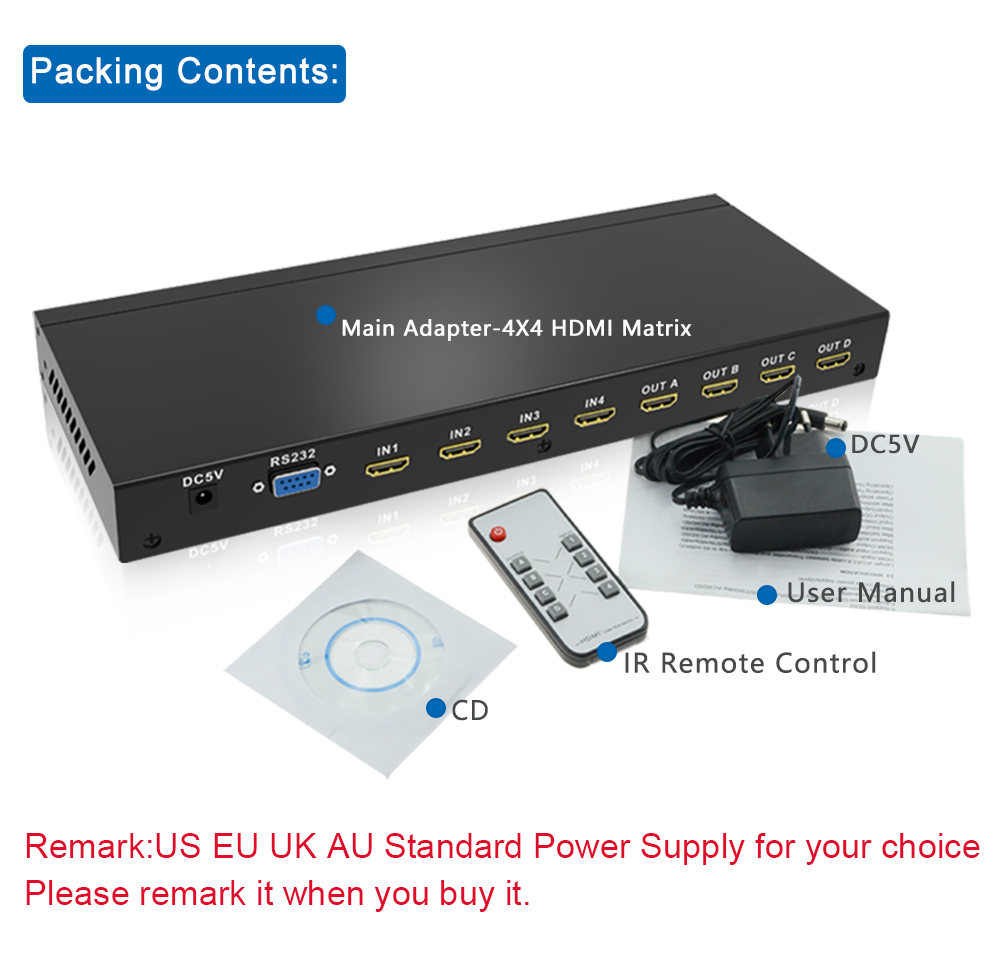

Package list:

1. Main Adapter- 4x4 HDMI Matrix
2.IR Remote Control
3.English User Manual
4.CD
5.DC5V Power Adapter
