  Home - Products -SDI Splitter

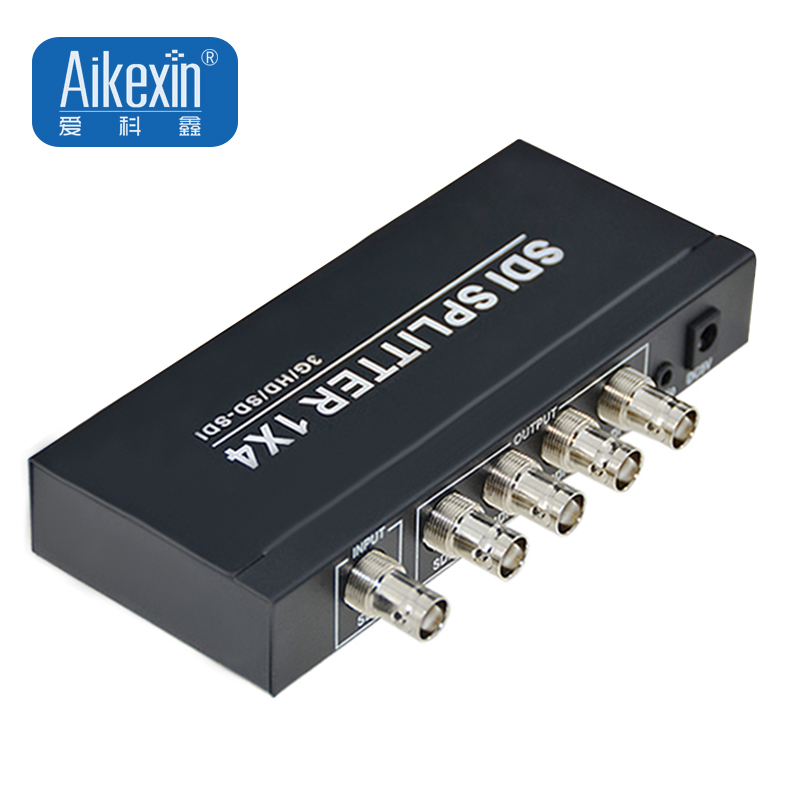

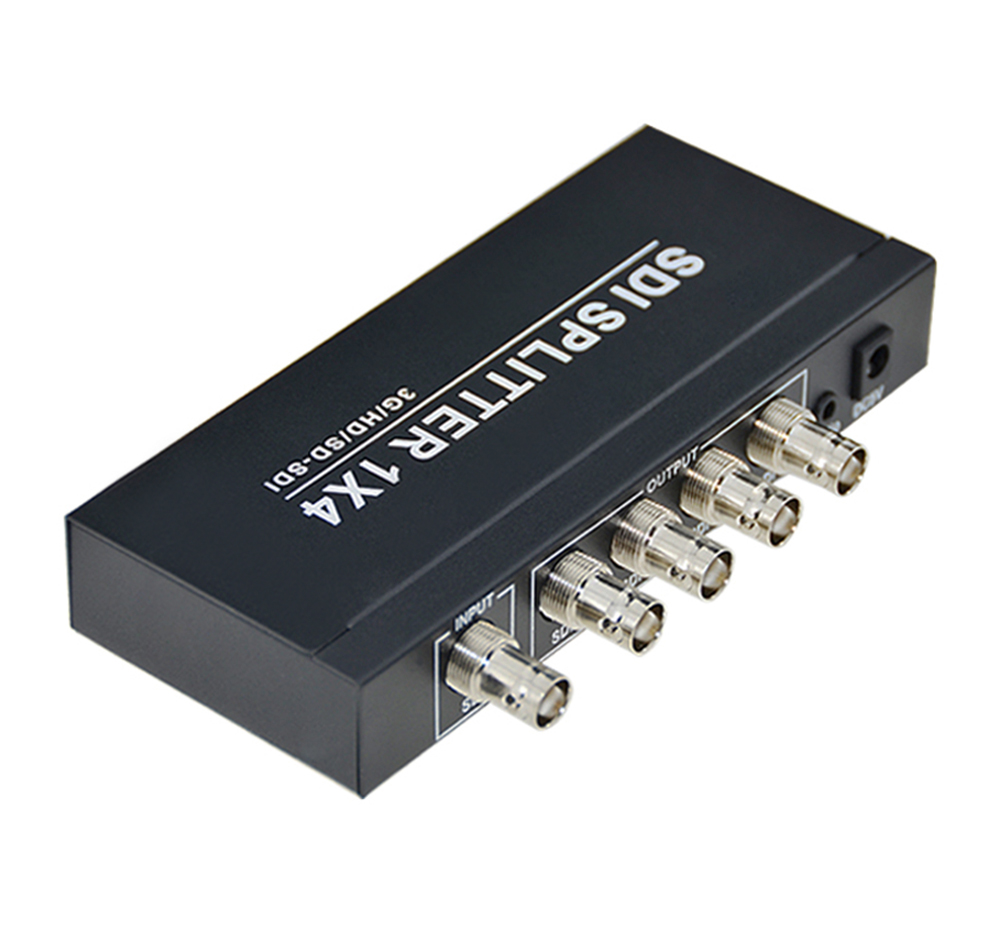

SDI104

SDI Splitter 1x4

Introduction:

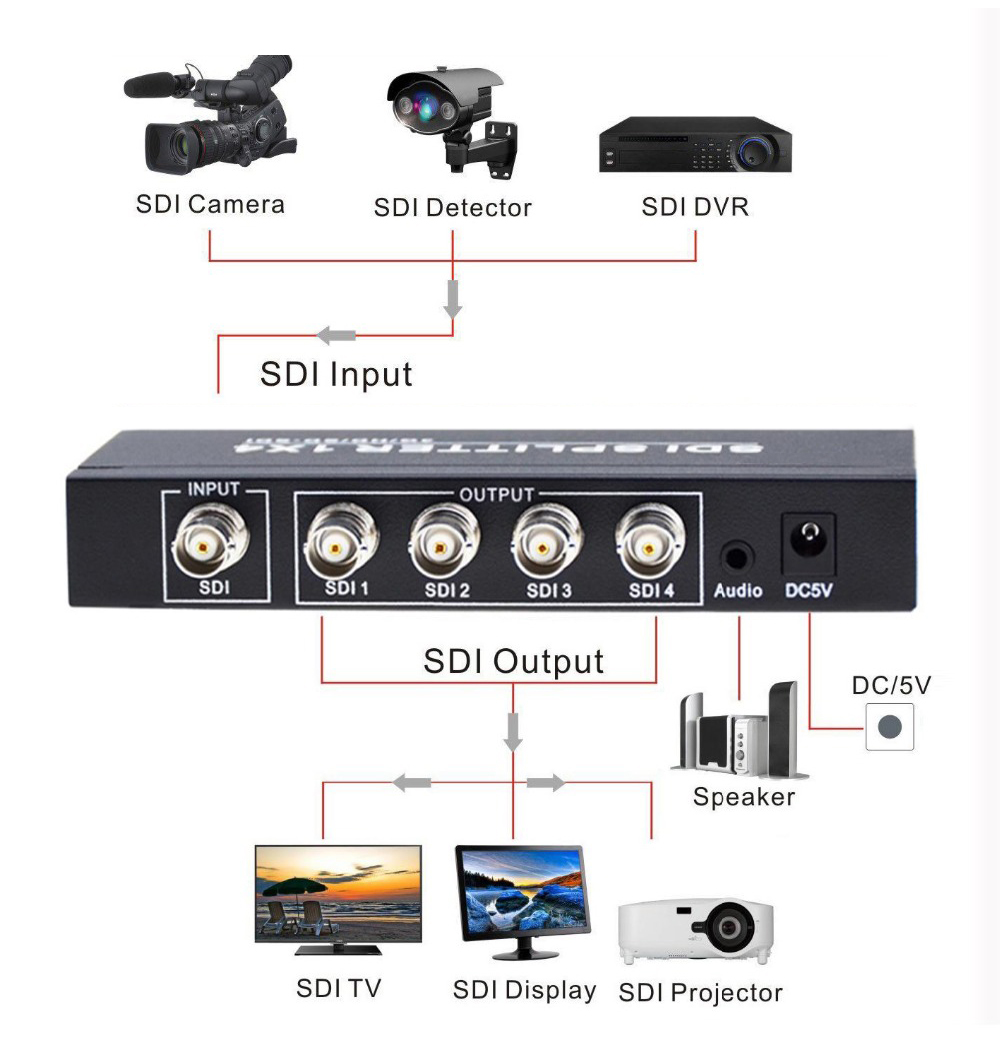

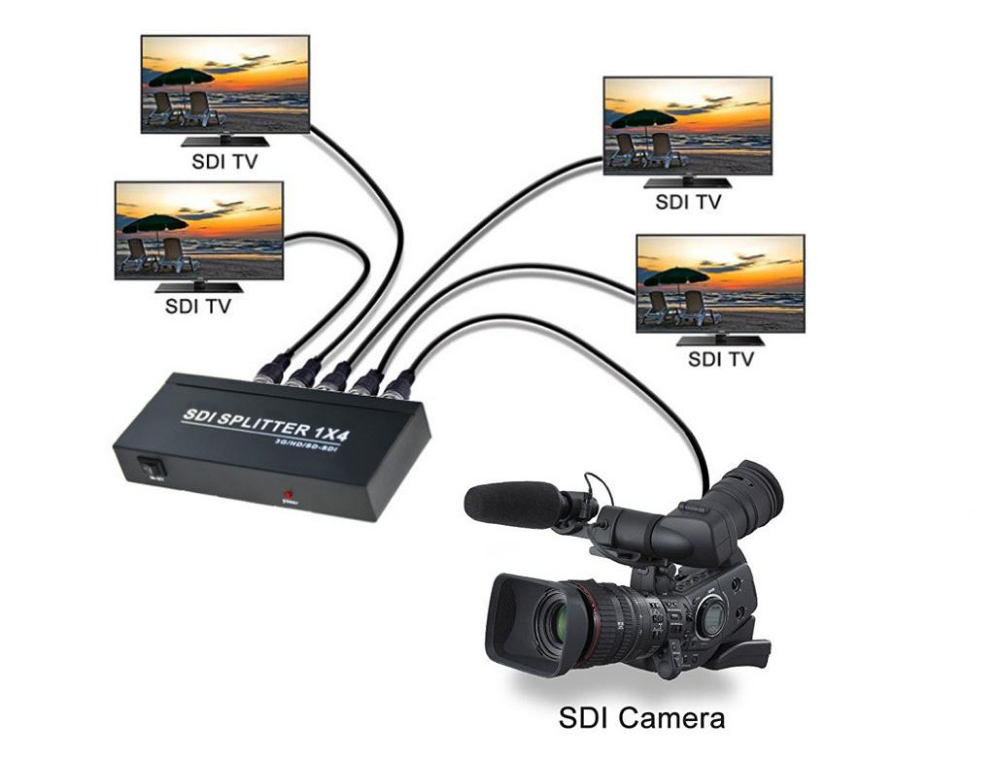

The 1x4 SDI Splitter 1 In to 4 Out SD-SDI HD-SDI 3G-SDI Amplifier Repeater Extender This SDI Splitter distributes one SDI signal to 4 simultaneous SDI outputs. It supports full range of SDI signal formats including SD-SDI, HD-SDI, 3G-SDI with easy operation and high reliability. This splitter can be widely used in SDI broadcast room, no-linear editing field, CCTV security and training showroom etc.

Description

4 port SDI Splitter 1x4 HD/3G/SD SDI Splitter,Splitter SDI BNC Divisor 1 input 4 output

The 1x4 SDI Splitter 1 In to 4 Out SD-SDI HD-SDI 3G-SDI Amplifier Repeater Extender This SDI Splitter distributes one SDI signal to 4 simultaneous SDI outputs. It supports full range of SDI signal formats including SD-SDI, HD-SDI, 3G-SDI with easy operation and high reliability. This splitter can be widely used in SDI broadcast room, no-linear editing field, CCTV security and training showroom etc.
Features:4 port SDI Splitter 1x4 HD/3G/SD SDI Splitter, Splitter SDI BNC Divisor 1 input 4 output
1.SDI splitter function
   After 3 installation is done,the splitter can start normal working.It can support SD-SDI(270Mbps),HD-SDI(1.485Gbps) and 3G-SDI(2.97Gbps) and distribute to 4 simultanous SDI outputs.
2. SDI repeaterfunction
   This splitter provides equalized and re-cloked transmission,and supports signal input and output distances of up to 400meters for SD-SDI signal,200meters for HD-SDI signal and 100meters for 3G-SDI signal.
Note:Tested by Belden 1694A cable,the distance may vary if by cables of different specification.
3. Wide valtage design
   SDI splitter applies wide votage inside design.It can support DC 5V~30V voltage input (lowest power is 5V) and is more suitable for projects.
4. Intelligent design

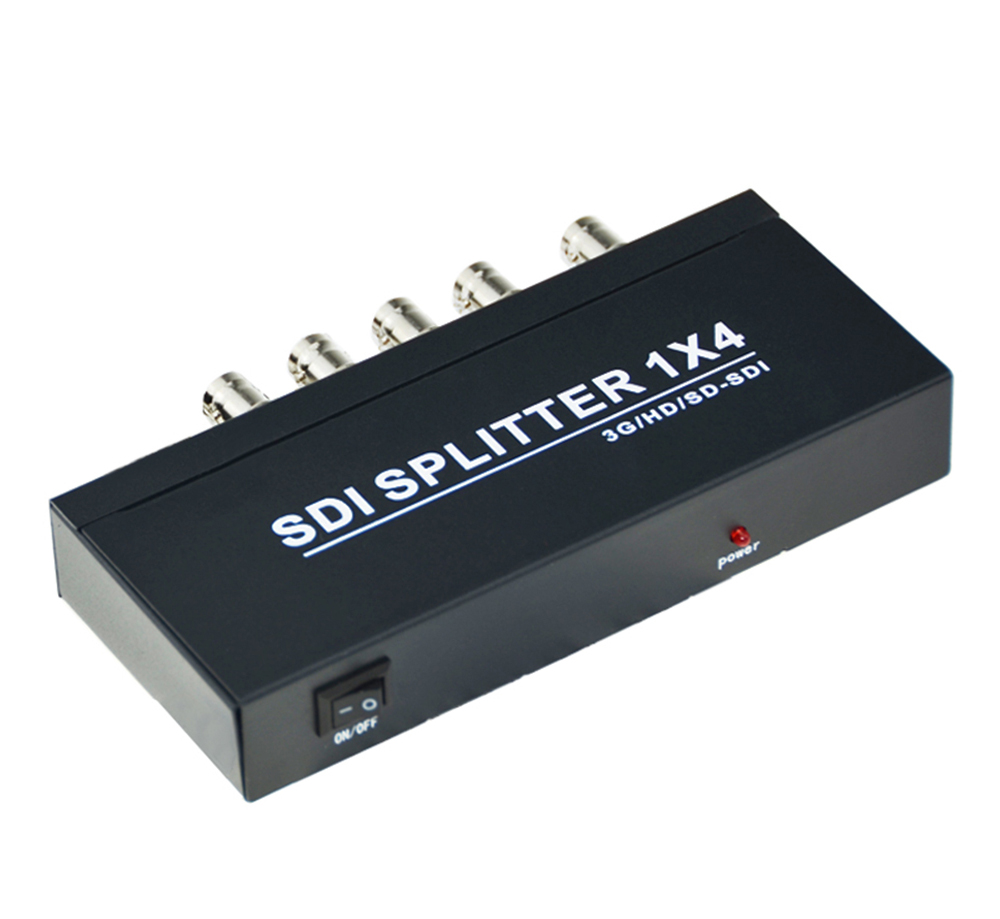

   It is plug and play and can detect SDI signal automatically.Indicator LED turns blue when correct SDI signal inputs,turns red when no signal or incorrect signal inputs and allows project customer to find the problem easily.


Features:4 port SDI Splitter 1x4 HD/3G/SD SDI Splitter, Splitter SDI BNC Divisor 1 input 4 output
1.SDI splitter function
   After 3 installation is done,the splitter can start normal working.It can support SD-SDI(270Mbps),HD-SDI(1.485Gbps) and 3G-SDI(2.97Gbps) and distribute to 2 simultanous SDI outputs.
2. SDI repeaterfunction
   This splitter provides equalized and re-cloked transmission,and supports signal input and output distances of up to 400meters for SD-SDI signal,200meters for HD-SDI signal and 100meters for 3G-SDI signal.
Note:Tested by Belden 1694A cable,the distance may vary if by cables of different specification.
3. Wide valtage design
   SDI splitter applies wide votage inside design.It can support DC 5V~30V voltage input (lowest power is 5V) and is more suitable for projects.
4. Intelligent design
   It is plug and play and can detect SDI signal automatically.Indicator LED turns blue when correct SDI signal inputs,turns red when no signal or incorrect signal inputs and allows project customer to find the problem easily.

Specifications:4 port SDI Splitter 1x4 HD/3G/SD SDI Splitter,Splitter SDI BNC Divisor 1 input 4 output

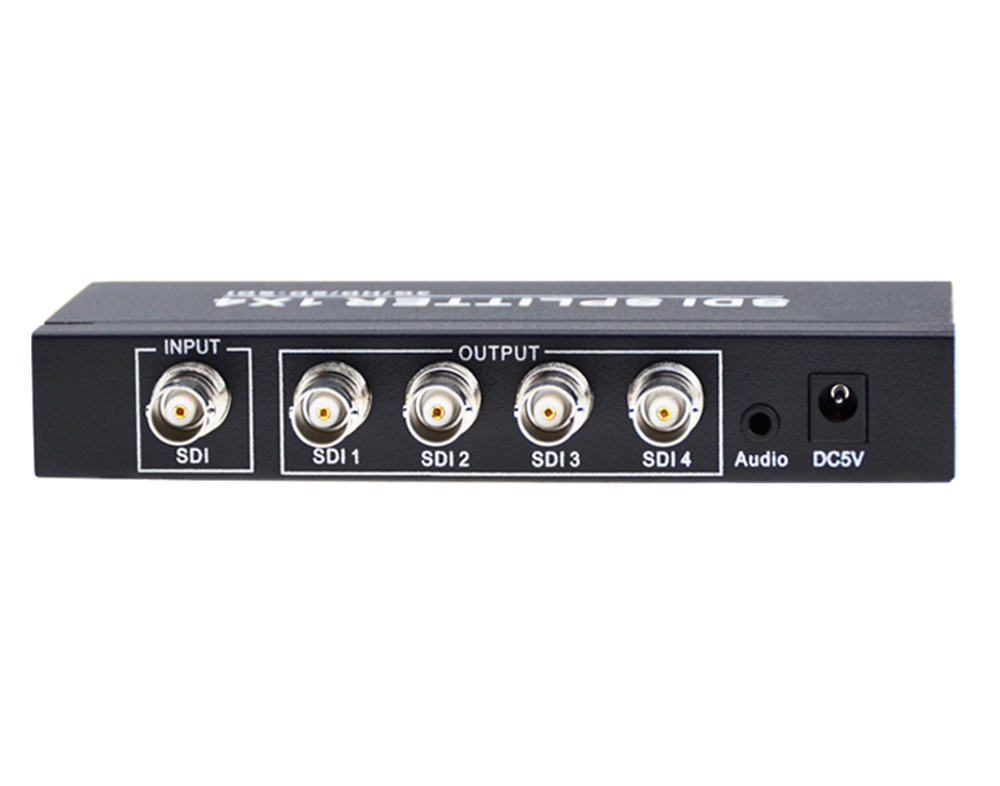

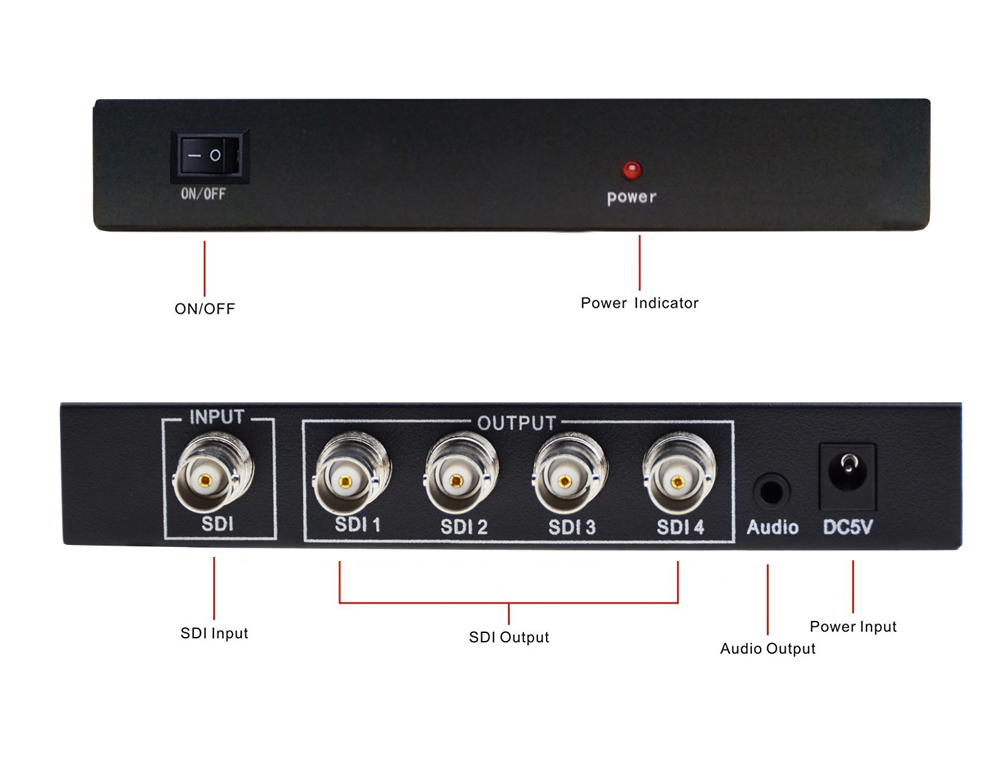

1. SDI input: BNC x 1 (HD-SDI/SD-SDI/3G-SDI)
2. SDI output: BNC x 4 (HD-SDI/SD-SDI/3G-SDI)
3. SDI standard: Compatible with 3G-SDI,SMPTE 424M,HD-SDI SMPTE292M and SD-SDI SMPTE259-C
4. SDI signal format: SD-SDI/HD-SDI/3G-SDI
5. SDI speed rate: 270~2970MB/s
6. SDI Impedance: 75
7. SDI input resolution: 480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ,  1080P@60HZ;
8. SDI output resolution: 480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ,  1080P@60HZ;
9. SDI signal output amplitude: 800mVp-p
10. Power consumption: <250mA (DC 5V)
11. Power: DC 5V  (Support 5V~30V Voltage Input)
12. Working temperature: 0~60

Package Included:4 port SDI Splitter 1x4 HD/3G/SD SDI Splitter,Splitter SDI BNC Divisor 1 input 4 output
1 x SDI 1x4 BNC Splitter
1 x power supply(US,EU,UK,AU)
1 x User manual
