6 Port HDMI 1.4 Switch Switcher,6 in 1 out HDMI Switch 6x1 support 4Kx2K 2160P HDCP with Audio Extractor,ARC,SPDIF

INTRODUCTION:

The device is one 6 Port HDMI Audio Extractor with support 1080p,3D and 4KX2K,which can switch easily 6 HD Sources to one HD Display.Also any of the input sources support the audio \extract by the SPDIF and

3.5mm audio output channel.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES:

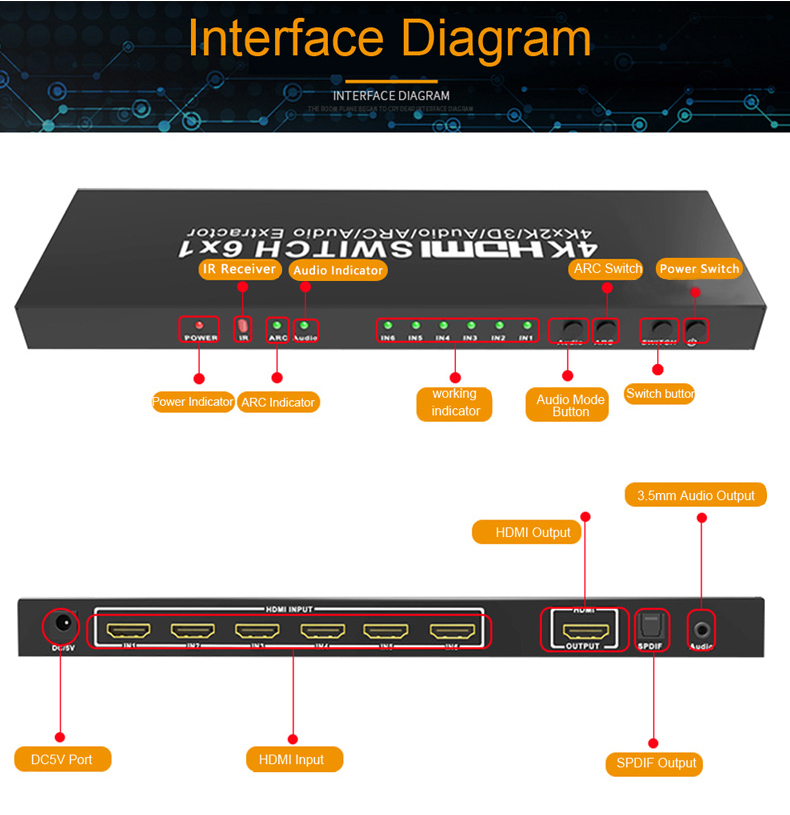

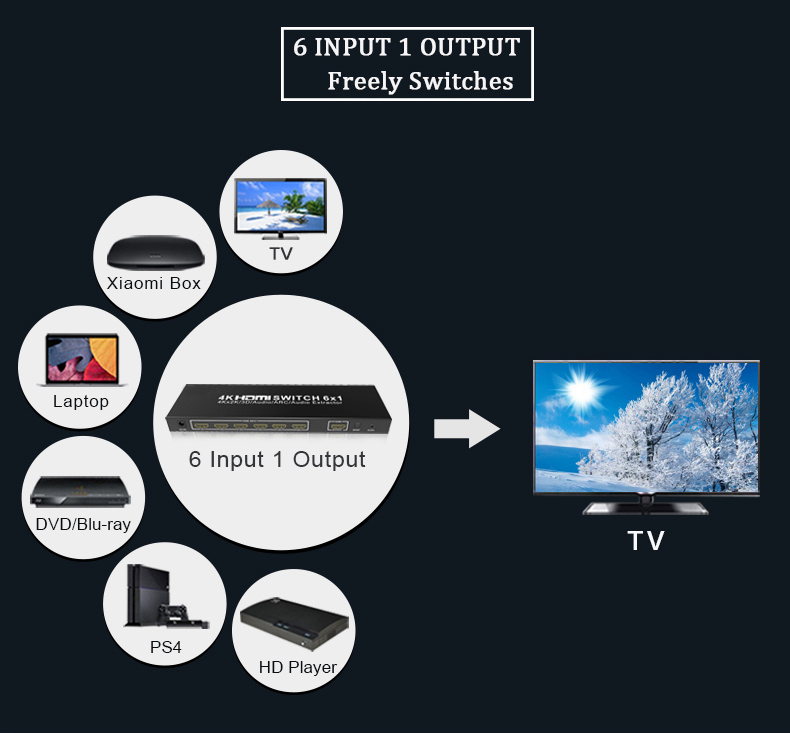

1. Six HDMI input switch freely to one HDMI output.

2. Any input HD Source can do audio extract by the SPDIF or 3.5mm audio  output port.

3. Support Full HD 1080P, Full 3D,4K*2K(3840x2160/30Hz)

4.Support ARC Function: Without adding one extra HDMI Cable, it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV  receives the audio and video content;

5.HDMI to achieve the synchronization of audio signal separation.

6. Support input up to 10metres using AWG26 HDMI standard cable length,output up to 15metres using AWG26 cable length

7. IR Remote can do switch to the Input sources, and also you can press the

8. Led Status Light allows the user to know the working status easily.

9. No loss of quality

10. Installs in minutes

11. Need DC5V power supply

SPECIFICATIONS :

HDMI resolution …...................4KX2K/1080p/1080i/720p/576p/576i/480p/480i

Support video color format ………..........................24bit/deep color 30bit,36bit

Audio output………………………..........................3.5mm Audio+optical SPDIF

Max transmission bandwidth……………………….......................... 300MHz

Max baud rate……………………………...........................................9.0Gbps

Input/Output TMDS signal ……………………….......................... 0.5~1.5Volts p-p

Input/Output DDC signal …………….............................. 5Volts p-p (TTL)

Input cable distance.……....................................≤10m AWG26 HDMI standard cable

Output cable distance….......................................................≤15 AWG26 HDMI standard cable

Max working current……………........................................................500mA

Power Adapter format......................................................input AC(50HZ-60HZ)100-240V;Output DC5V

Operating Temperature range....………............................ (-10 to +55℃)

Storage Temperature range………............................................... -20 to +60℃

Operating Humidity range……..................................10 to 90%RH (No Condensation)

Storage Humidity range……….............................5 to 95%RH (No Condensation)

Dimension (L x W x H) …………………..............................166X64X24(mm)

Weight…........................................................................275g

Packing List:

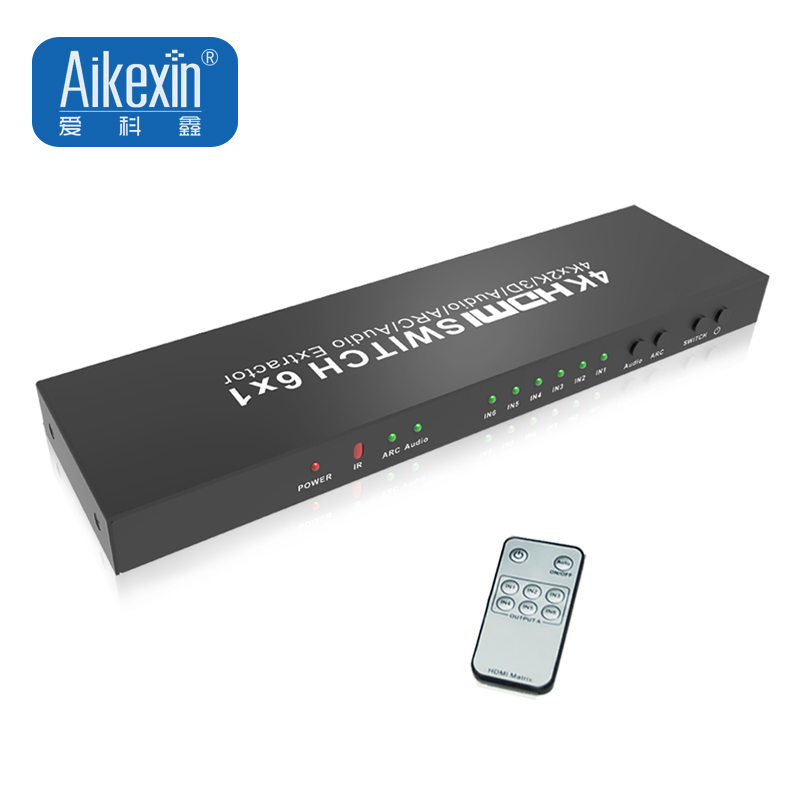

1.Main Adapter- 6x1 HDMI Switch

2.IR Remote Control Switches

3. DC5V Power Supply- US EU UK AU Power Supply for your choice

4.User Manual
