  Home - Products -HDMI Switch

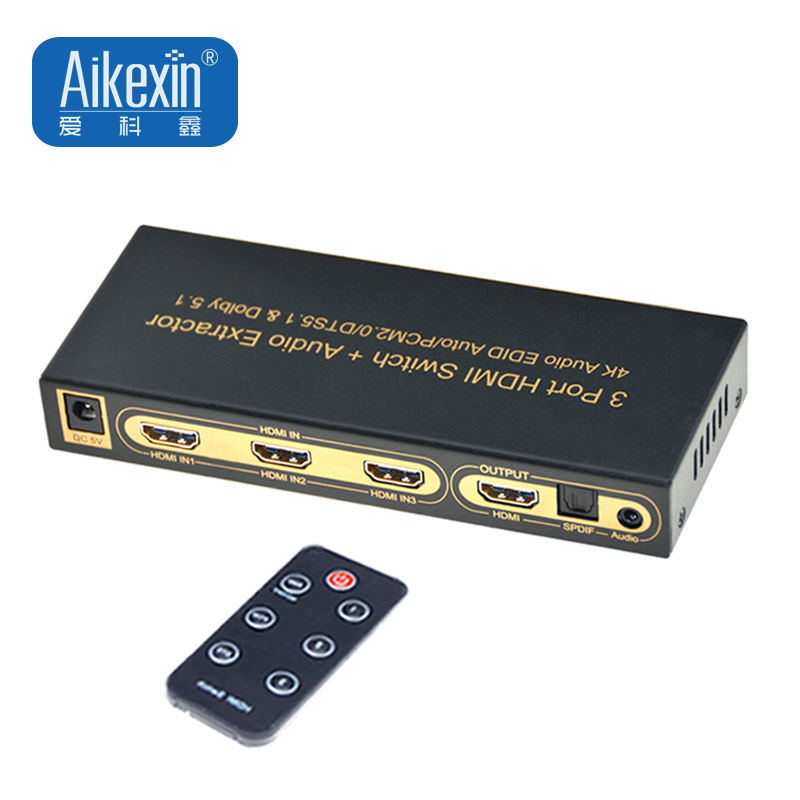

4KDK303B

3 port HDMI Switch

Introduction:
The device is one 3 Port HDMI Audio Extractor Switch with support 1080p,3D and 4KX2K,which can switch easily three HD Sources to one .HD Display.Also any of the inputsources support the audio \extract by the SPDIF and 3.5mm audio output channel. Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Description



 1.0 INTRODUCTION:    3 In 1 Out HDMI 1.4 Switch with Optical,3.5mm Audio Output,STEYR 3 Port HDMI Audio Extractor Switcher 4Kx2K with Remote Control

The device is one 3 Port HDMI Audio Extractor Switch with support 1080p,3D and 4KX2K,which can switch easily three HD Sources to one .HD Display.Also any of the inputsources support the audio \extract by the SPDIF and 3.5mm audio output channel.  Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
STEYR HDMI 1.4 Switch Switcher Box Selector 3 In 1 Out HDMI Audio Extractor Splitter with Optical SPDIF, Audio ,Remote Control
2.0 FEATURES:    3 In 1 Out HDMI 1.4 Switch with Optical,3.5mm Audio Output,STEYR 3 Port HDMI Audio Extractor Switcher 4Kx2K with Remote Control

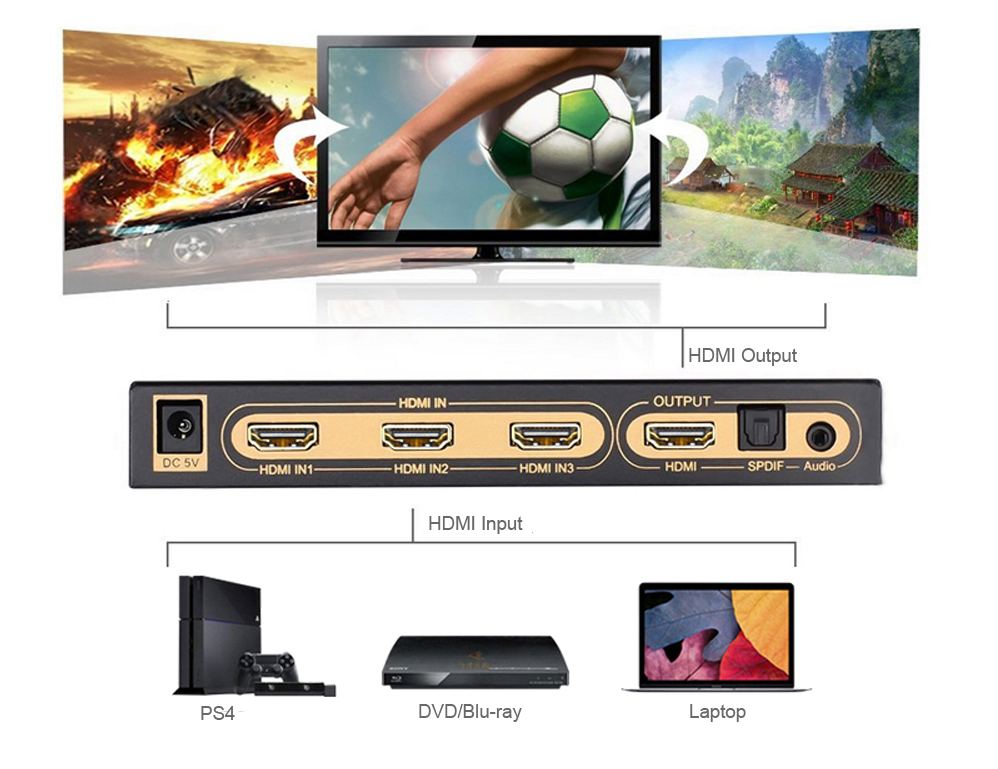

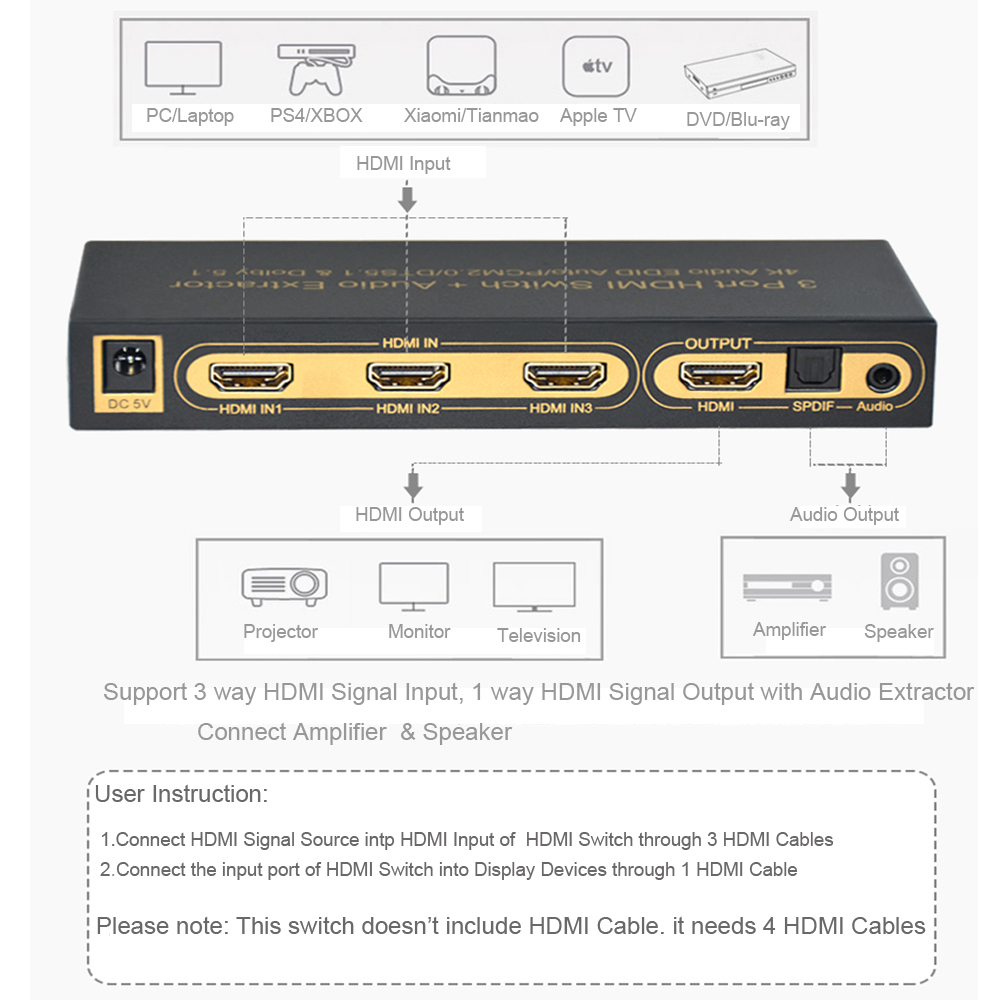

1. Three HDMI input switch freely to one HDMI output.
2. Any input HD Source can do audio extract by the SPDIF or 3.5mm audio    output port.
3. Support Full HD 1080P, Full 3D,4K*2K(3840x2160/30Hz)
4.Support ARC Function: Without adding one extra HDMI Cable, it can reverse the  audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV   receives the audio and video content;
5.HDMI to achieve the synchronization of audio signal separation.
6.There are EDID AUTO /PCM2.0 / DTS5.1&Dolby5.1 three kinds of audio mode options;

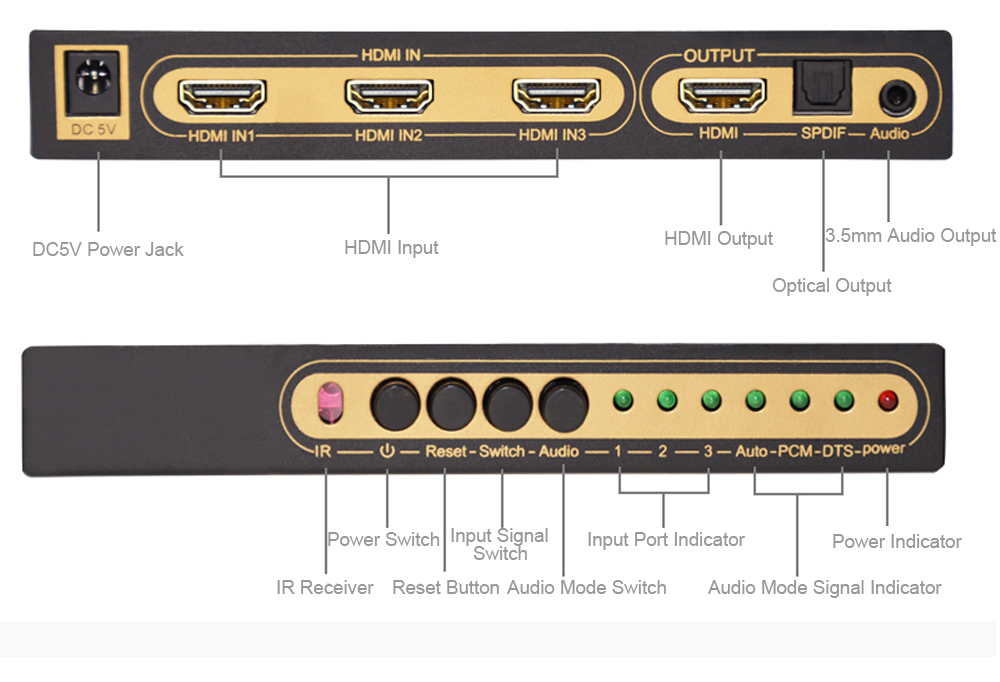

7. LED indication: when source or sink is working, LED related will go bright.
8. Support input up to 10metres using AWG26 HDMI standard cable length,output up to 15metres using AWG26 cable length
 9. IR Remote can do switch to the Input sources, and also you can press the
10. Led Status Light allows the user to know the working status easily.
11. No loss of quality
12. Installs in minutes
STEYR HDMI 1.4 Switch Switcher Box Selector 3 In 1 Out HDMI Audio Extractor Splitter with Optical SPDIF, Audio ,Remote Control
3.0 SPECIFICATIONS:    3 In 1 Out HDMI 1.4 Switch with Optical,3.5mm Audio Output,STEYR 3 Port HDMI Audio Extractor Switcher 4Kx2K with Remote Control

HDMI resolution …...................4KX2K/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ………..........................24bit/deep color 30bit,36bit
Audio output………………………..........................3.5mm Audio+optical SPDIF
Max transmission bandwidth….……….....……............................…….. 300MHz
Max baud rate……………………………....................................……….9.0Gbps
Input/Output TMDS signal …………...................……………… 0.5~1.5Volts p-p
Input/Output DDC signal …………….............……….………… 5Volts p-p (TTL)
Input cable distance.…….....................…..≤10m AWG26 HDMI standard cable
Output cable distance….…...................….....≤15 AWG26 HDMI standard cable
Max working current……………..............………………….........…………500mA
Power Adapter format................input AC(50HZ-60HZ)100-240V;Output DC5V
Operating Temperature range....……….............…………....…… (-10 to +55℃)
Storage Temperature range………..…………..............…………… -20 to +60℃
Operating Humidity range……...................….10 to 90%RH (No Condensation)
Dimorage Humidity range………..............…….…5 to 95%RH (No Condensation)

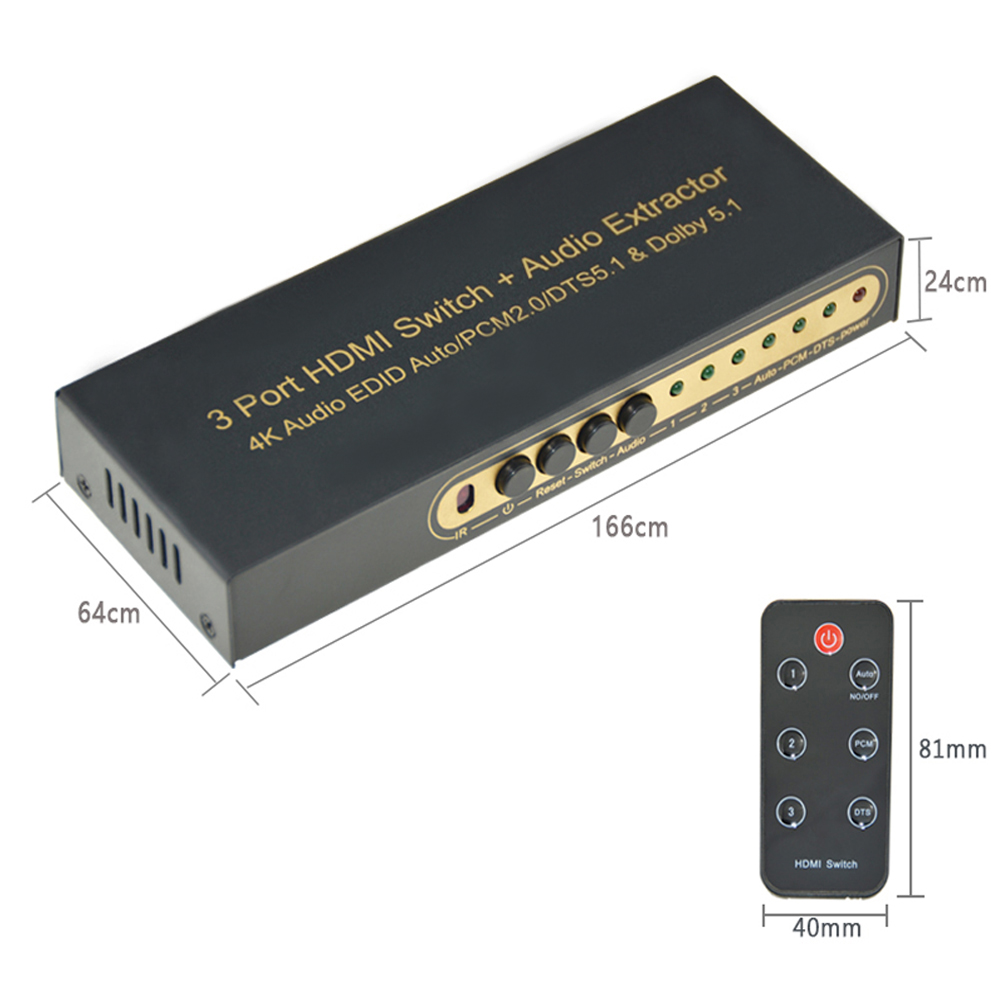

ension (L x W x H) …………………...............…………..…166X64X24(mm)
Weight…..……………….....................….............….……..…………………275g
STEYR HDMI 1.4 Switch Switcher Box Selector 3 In 1 Out HDMI Audio Extractor Splitter with Optical SPDIF, Audio ,Remote Control

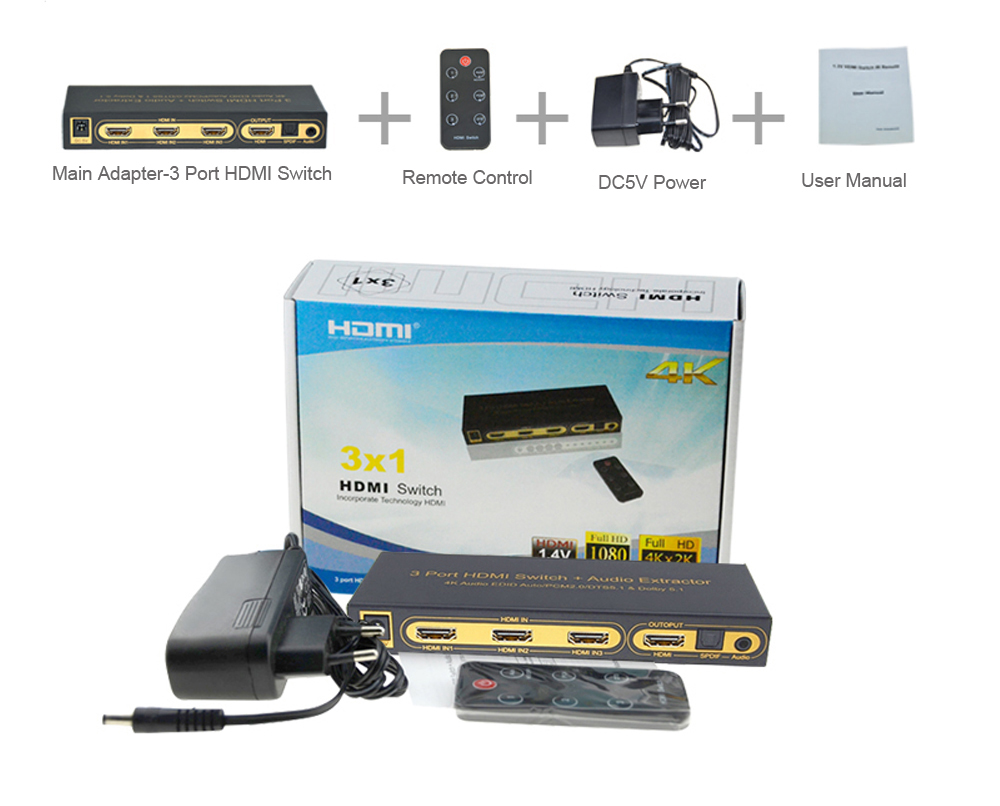

Packge List:  3 In 1 Out HDMI 1.4 Switch with Optical,3.5mm Audio Out,STEYR 3 Port HDMI Audio Extractor Switcher 4Kx2K with Remote Control
1.Main Adapter-3 port HDMI Switcher 4K with Audio Extractor
2.Remote Control *1
3.English Manual*1
4.DC5V Power supply*1(EU AU US UK for your choice)
