  Home - Products -HDMI Switch

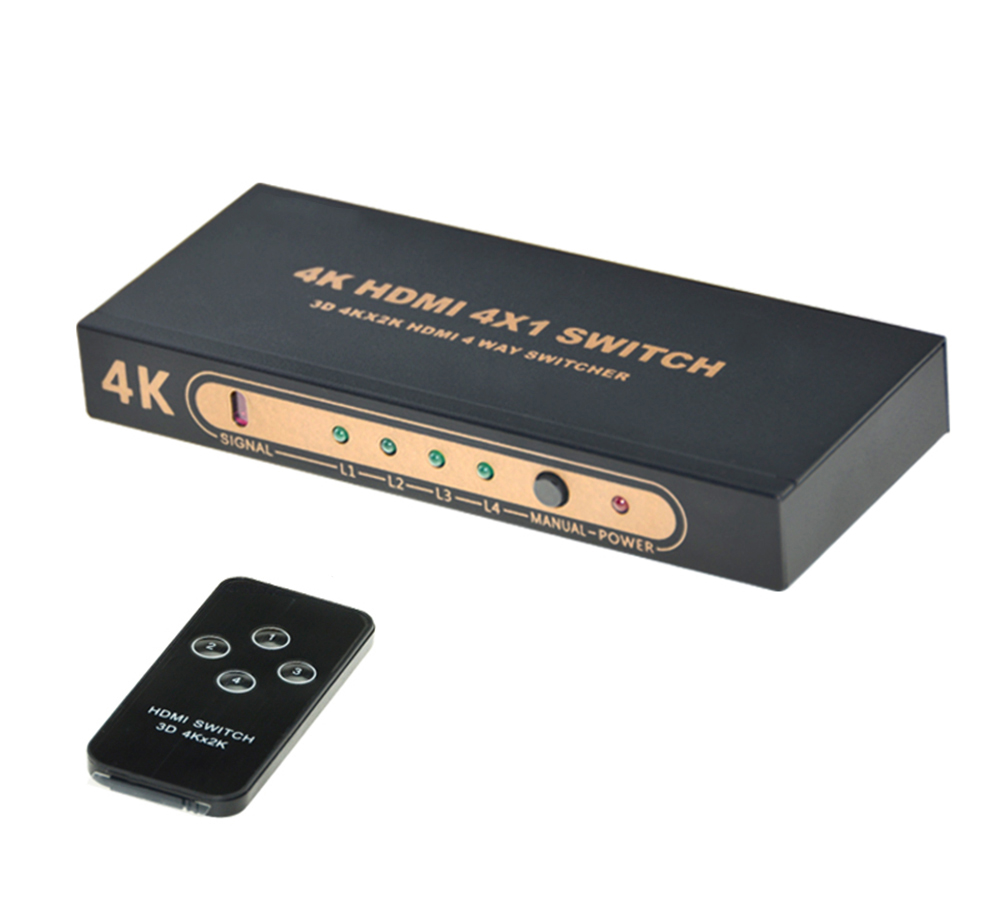

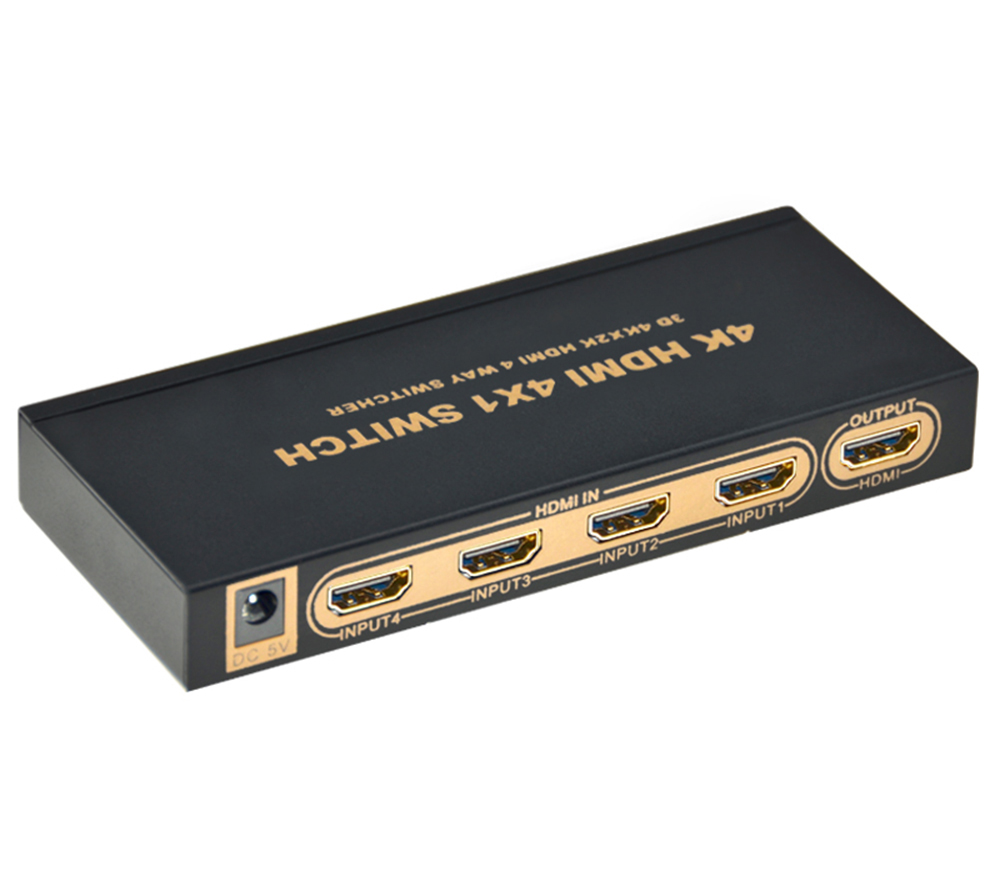

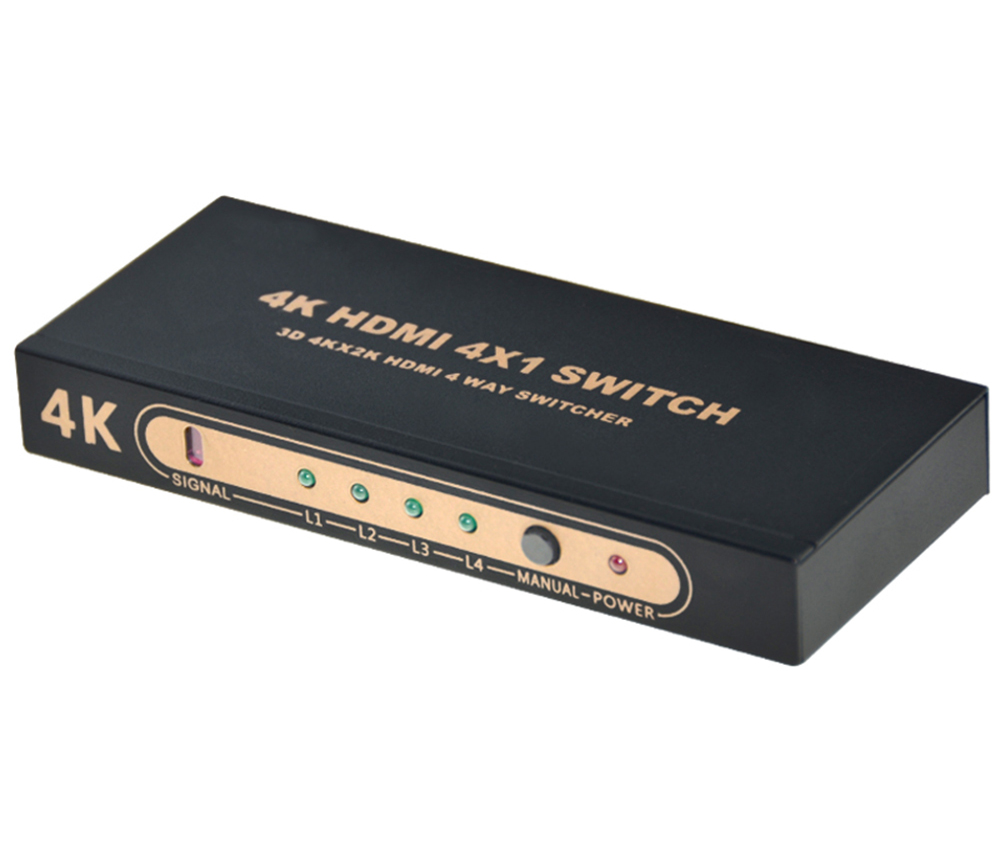

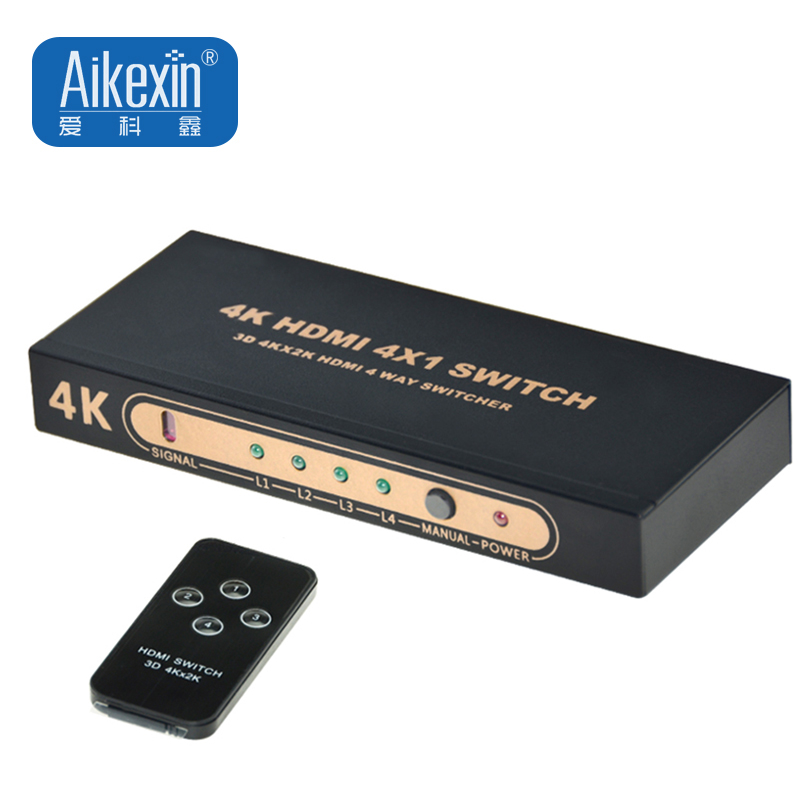

4KDK404

1.4V HDMI Switch 4X1

Introduction:
This HDMI Switch 4x1 V1.4 Support Full 3D 4Kx2K 340Mhz is an HDMI Switch with four inputs. It switch between the multi channel input of the HDMI signal into one HD monitor or projector.It can optimize your home theater system to the best effect.It support full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.4Gbps/340MHz.

Description

HDMI Switch 4K 4 port/5 port HDMI Switcher Switch 4 in 1 out/5 input 1 output with IR remote control in Metal

1.0 INTRODUCTION:  HDMI Switch 4K, 4 port HDMI Switcher Switch 4 in 1 out  with IR remote control in Metal

This HDMI Switch 4x1 V1.4 Support Full 3D 4Kx2K 340Mhz is an HDMI Switch with four inputs. It switch between the multi channel input of the HDMI signal into one HD monitor or projector.It can optimize your home theater system to the best

effect.It support full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.4Gbps/340MHz.

2.0 FEATURES : STEYR HDMI Switch 4K, 4 port HDMI Switcher Switch 4 in 1 out  with IR remote control in Metal

1. Switching is done via itself automatically when signal present on the ports.

2. Support HDCP protocol and applicable to source device and high definition   display device such as DVD and HDTV which have

    HDMI or digital ports  and are compliant with HDCP protocol.

3. Support high resolutions up to 3840*2160, including 480i/p,576p,720i/p,1080i/p and 2160p

4. Support HDMI1.4

5. Extend the transmission distance and improve transmission signal.

6. Compatible with DVI by using HDMI TO DVI adapter.

7. Plug-and-play.

8. Convenient to connect multi-group input signals to display on one HDTV.

9. Save space. Allow several sources to use one high definition display device   simultaneously.

10. Metal casing design and overall shielding without signal interference.

11. Select input port by hand freely.

12. LED indicates signal and power mode.

13. Power supply DC5V.

3.0 SPECIFICATIONS:HDMI Switch 4K, 4 port HDMI Switcher Switch 4 in 1 out  with IR remote control in Metal

HDMI version

HDMI 1.4b

HDMI resolution

Up to 4K x 2K@30Hz, 1080p@60Hz&1080P 3D@24Hz

Support video color format

24/30/36 bit deep color

Support audio format

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth

340MHz

Max baud rate

3.4Gbps

Input cable distance

≤15m AWG26 HDMI standard cable

Output cable distance

≤20m AWG26 HDMI standard cable

Max working current

300mA

Power adapter format Input

AC (50HZ, 60HZ) 100V-240V; Output: DC5V

Operating Temperature

(-15 to +55°C) range

Dimension (L x W x H)

145x62.5x20 (mm)

Weight

224g

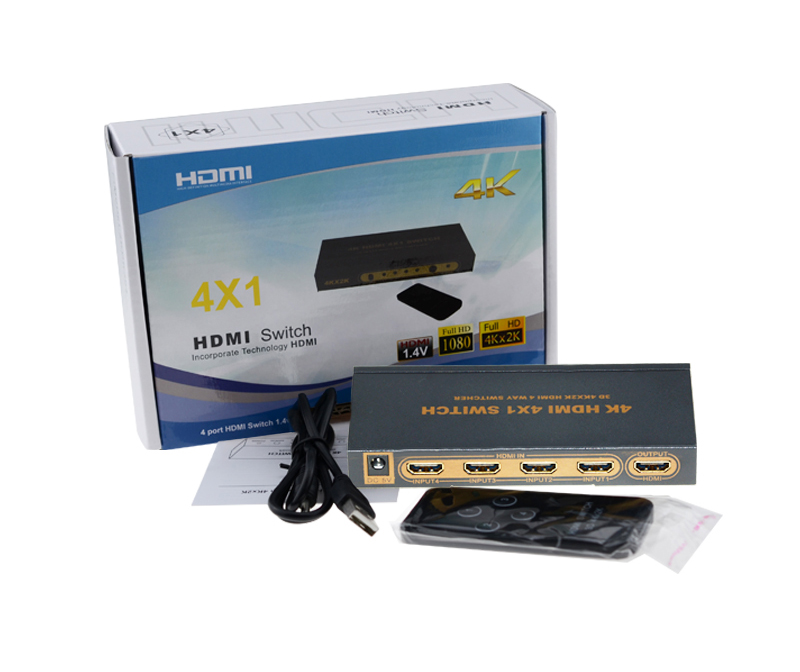

4.0 Package Contents: HDMI Switch 4K, 4 port HDMI Switcher Switch 4 in 1 out  with IR remote control in Metal

1. HDMI Switch 4x1...................................................................1 Piece

2. 5V DC Power Adapter ................................................ .....1 Piece

3. User Manual.........................................................................1 Piece

4. Remote Control.....................................................................1 Piece
