Introduction

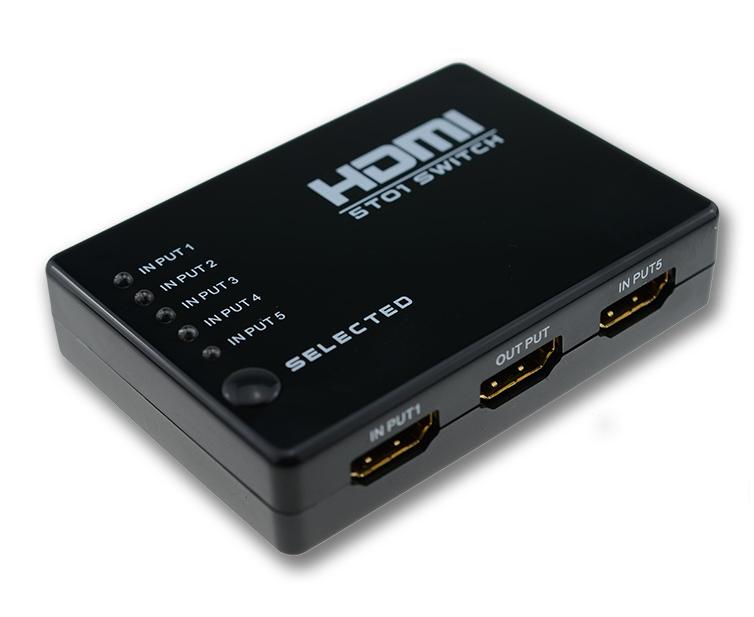

This HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the five sources to display unit.
The output sends the high definition audio/video signals to a high definition display. This kind of the HDMI Amplifier Switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function.
Features
* Multifunctional on switching : intelligent or mechanical
* Support HDMI 1.4, HDCP pass-through.
* Support highest video resolution 4Kx2K.
* High performance up to 2.5Gbps.
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD).
* Support 3D
Specification:
Input DDC Signal 5 volts p-p (TTL)
Maximum Single Link Range 3840x2160
Output Video HDMI 1.4
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 2.5Gbps/250MHz
Interlaced(50&60Hz) 480i,576i,1080i
Progressive(50&60Hz) 480p,576p,720p,1080p
Limited Warranty 1 Year Parts and Labor
Operating Temperature 0 °C to +70°C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10°C to +80°C
Storage Humidity 5% to 90 % RH (no condensation)
Power consumption (Max) 5W
Package include:
* Remote control
* IR Receiver
*USB Cable Power Supply
* Power Adapter
* User Manual
|
