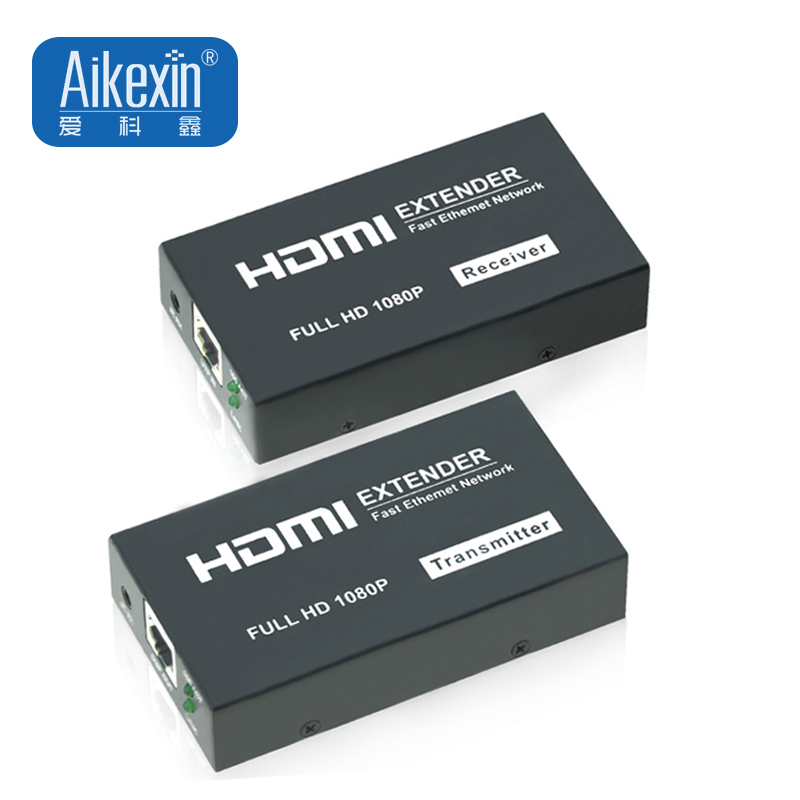

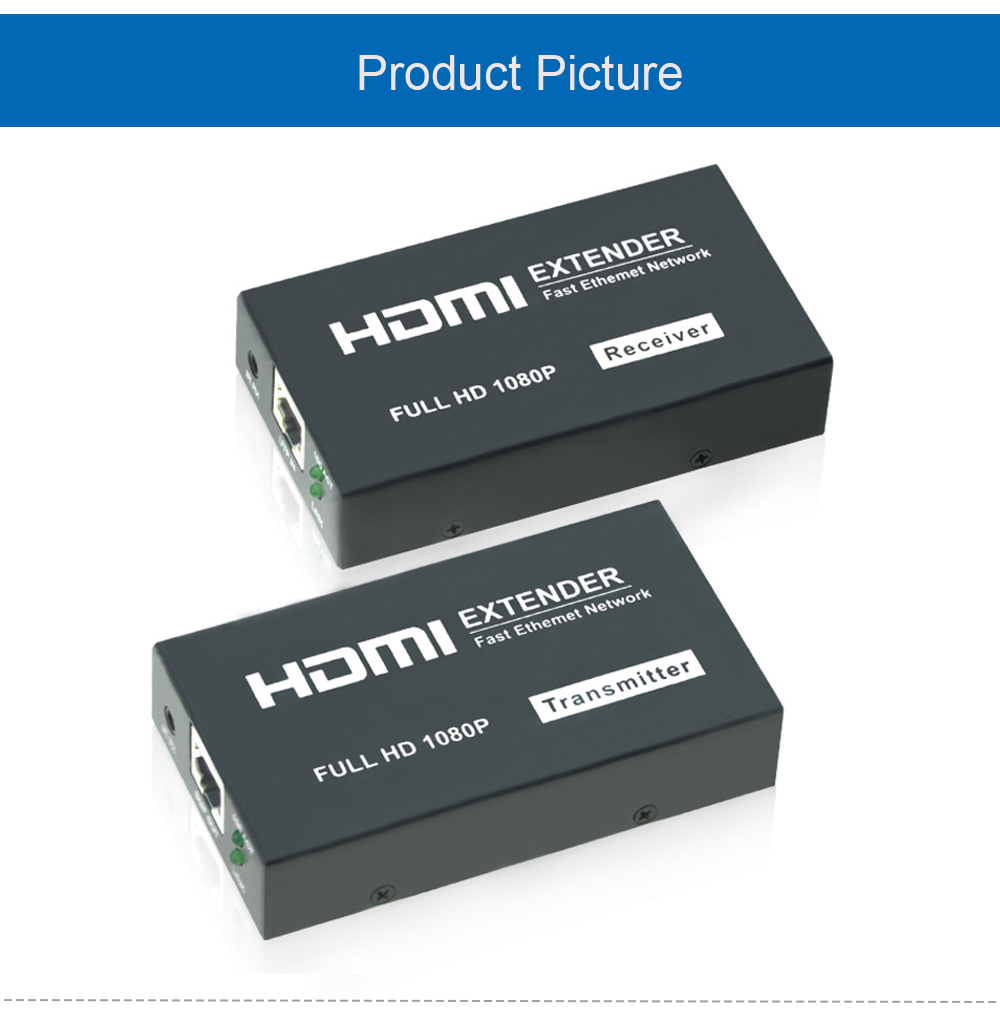

1.Instruction:HDMI IR Extender 120m, 400ft HDMI Network Extender over RJ45 Single Cat 5 Cat6 Splitter with IR (Transmitter+Receiver)
The 120m HDMI Over Ethernet is based on TCP/IP standard. It transmits your HD display with distances up to 120m away from your HDMI or DVI-D source over a single CAT 5e/6 cable. It supports high resolution up to
1080p and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resol-ution with high quality by its good stability and powerful security.
2.Features:HDMI IR Extender 120m,400ft HDMI Network Extender over RJ45 Single Cat 5 Cat6 Splitter with IR (Transmitter+Receiver)
1.HDCP 1.1 & 1.2 protocal compliant;
2. Support 120M Ethernet,following TCP/IP standard;

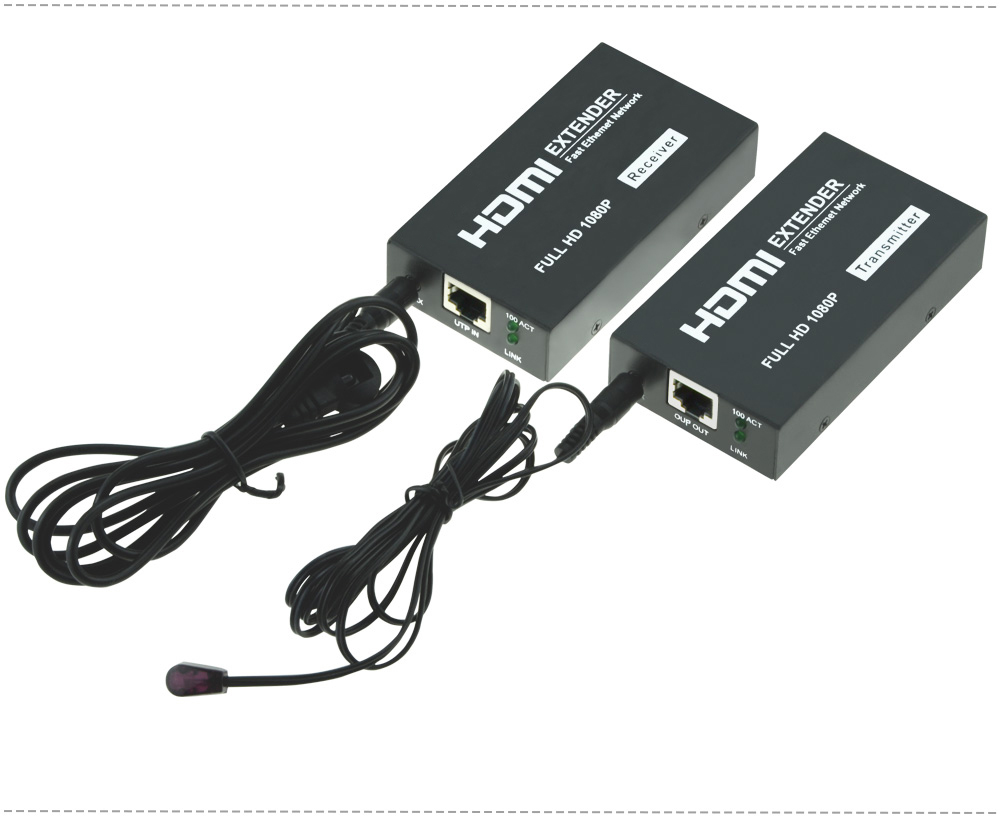

3. IR Extension Function, you can use the Signal source remote to control the
source device at the receiver;
4. Video Input Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i;
5.Support 3D 1080p@60Hz @48bit pixels;
6.Video Out Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i;
7.Audio format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

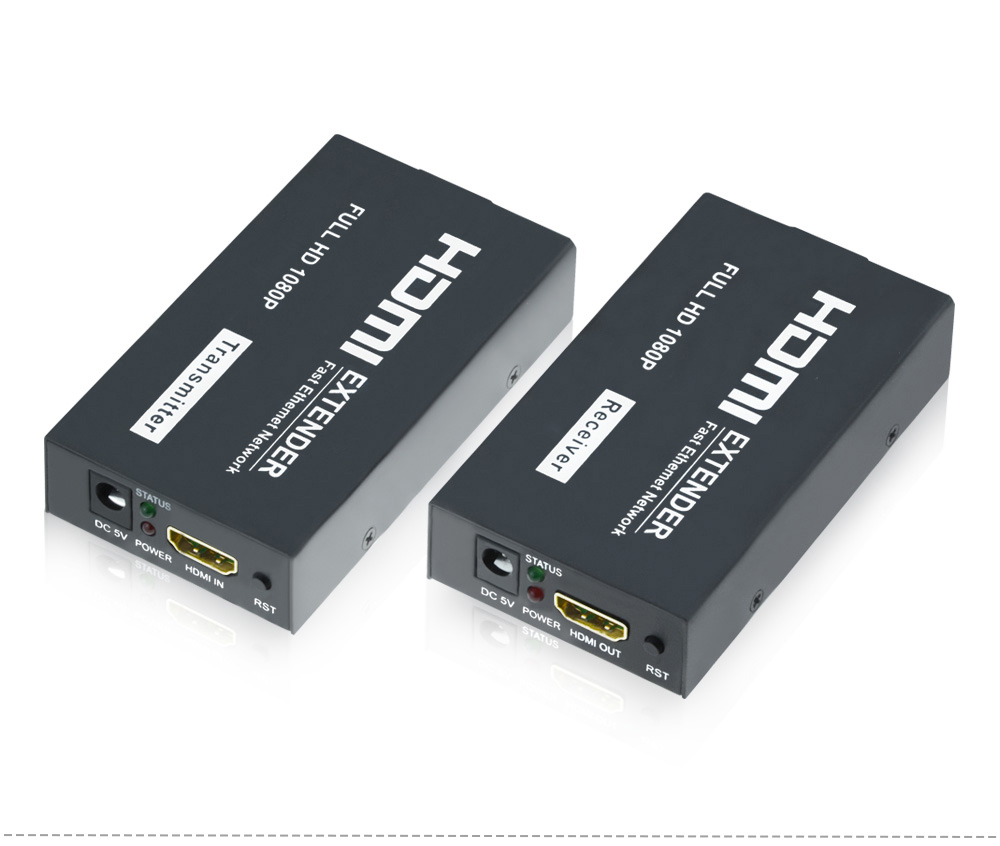

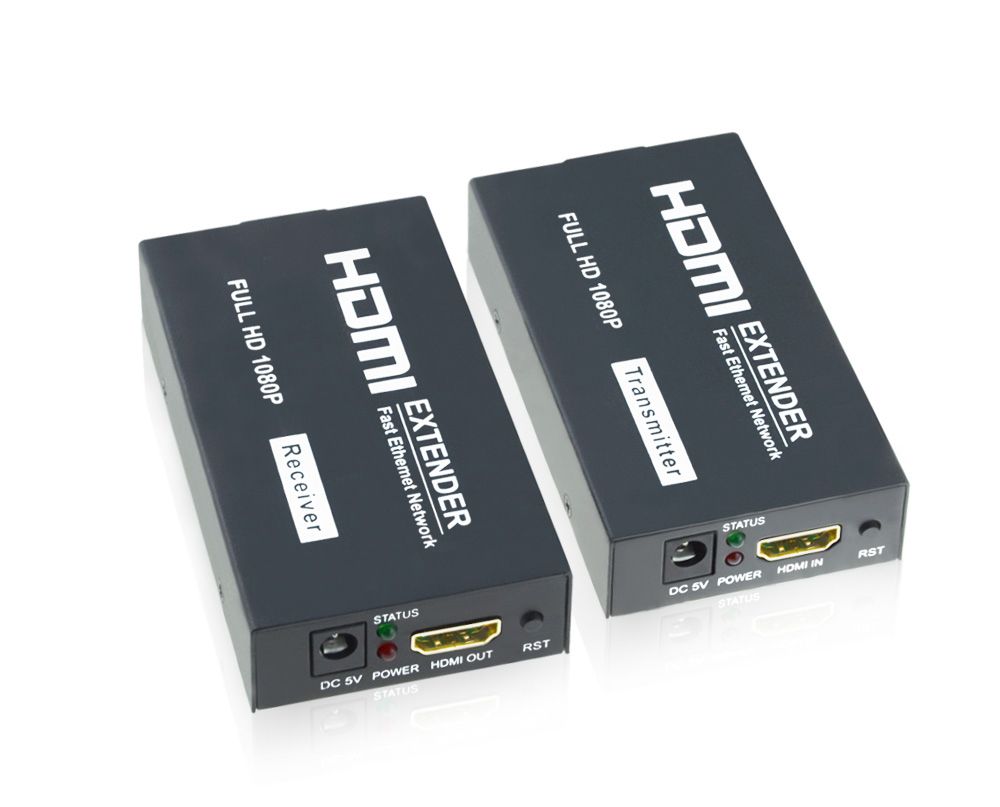

8.LStatus Light:Power Led light go bright, it means the power supply is
normal; Led 1 status light go bright, it means there is signal output; Led 2
light go bright, it means the Ethernet cable connection between the sender
and receiver is ok;

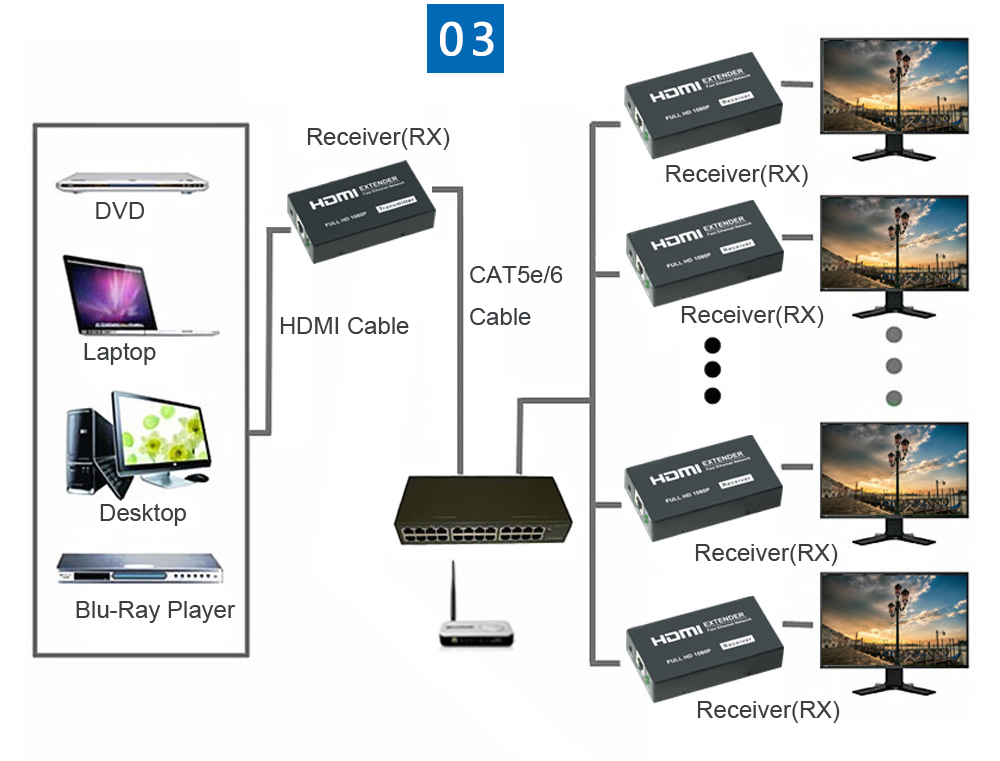

9.Support one point-to-point mode, one point-to-many mode and casecade
connection mode;
10.Use standard HDMI Cable and Ethernet Cable;
11.No loss of Signal;
12.Easy Operation and Installation;
13.With 5V Power Adaptor.

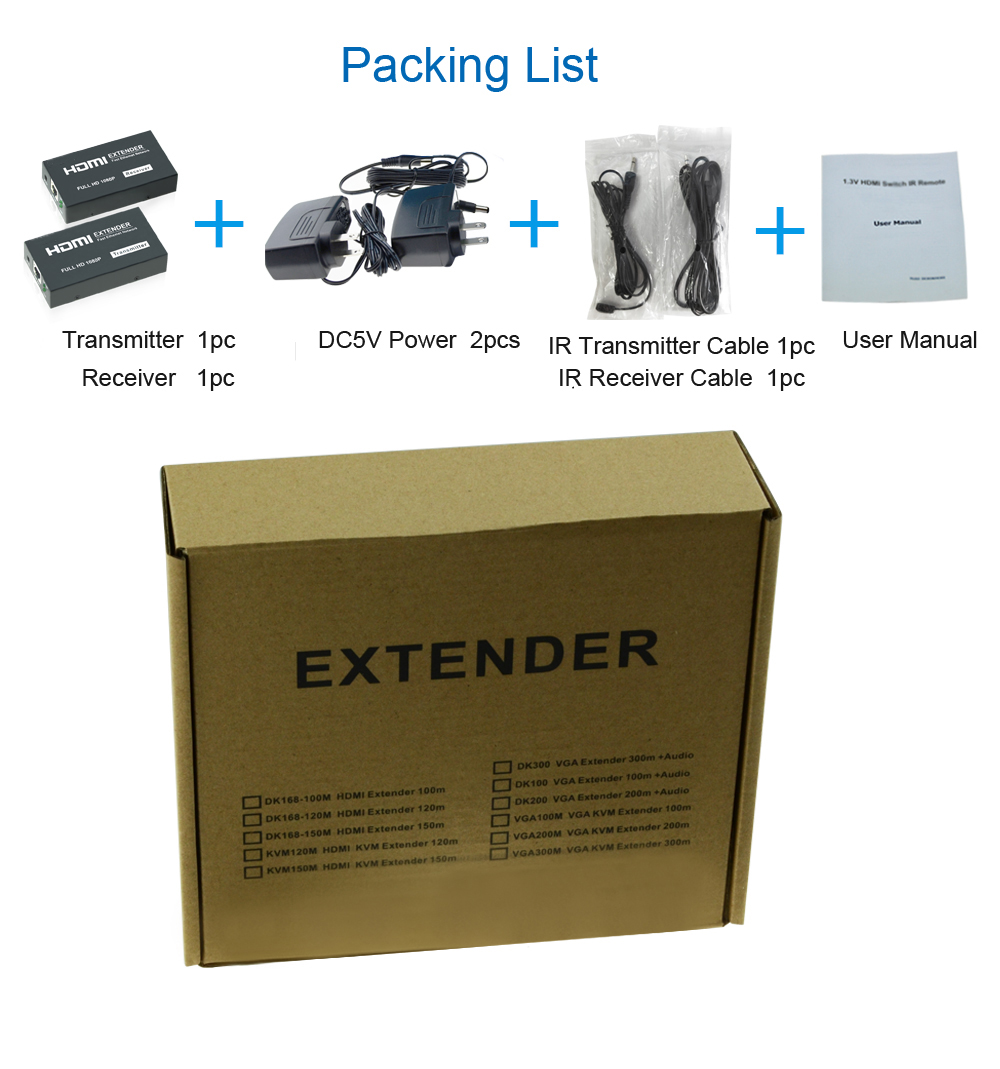

Packaging List:
One HDMI Extender will be packed in a neutral kraft paper box then 28pcs/ctn
HDMI Transmitter ………......... 1 pc
HDMI Receiver …………….......1 pc
IR TX/RX Terminal.....................1 set
DC5V Power Adapter ………….2 pcs
User Manual …………………….1 pc |
