HDMIKVM120M

HDMI USB KVM Extender 120m

Introduction:
The Extender provides extension of HDMI signals long distances over a single CAT6 cable,it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Description

395ft HDMI USB KVM Extender 120m Over Single CAT5e/6 Ethernet IR Extender Splitter Support 1080P HDCP,Keyboard Mouse

Description : 395ft HDMI USB KVM Extender 120m Over Single CAT5e/6 Ethernet IR Extender Splitter Support 1080P HDCP,Keyboard Mouse
The extender provides extension of HDMI signals long distances over a single CAT6 cable,it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.


Feature:395ft HDMI USB KVM Extender 120m Over Single CAT5e/6 Ethernet IR Extender Splitter Support 1080P HDCP,Keyboard Mouse
Transmits HDMI video and audio signal up to 100m/120m over single CAT5e/6 cable;
Support video resolution up to 1920*1080P@60Hz;
Support keyboard and mouse(HID signal) transmission;
Support the transmitter has one local HDMI output(Loop out function);
Support 802.3 Ethernet standard;
Low latency <100ms

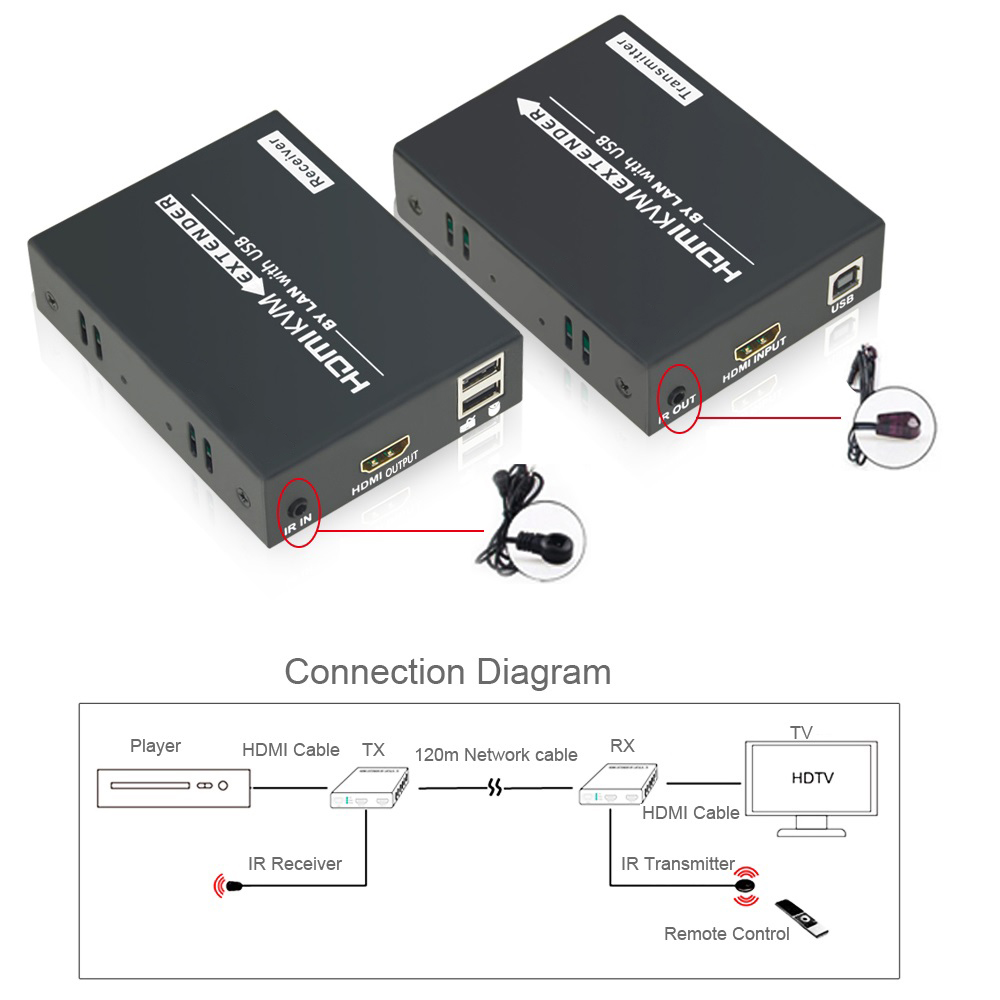

Support unidirectional IR transmission,you can control STB or Blue-Ray DVD at receiving site by
remote control;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play.

Note:395ft HDMI USB KVM Extender 120m Over Single CAT5e/6 Ethernet IR Extender Splitter Support 1080P HDCP,Keyboard Mouse

USB port :

1.It can transmit HID signal,It is unicast!It only support one to one application.

2.It can connect USB port to Scanner,Touch screen,keyboard and mouse.

3.If you want to connect to other device,please contact me!We will give you the best reply timely!

HDMI KVM Extender 120m Over Single Cat 5/5E/6/7 Ethernet Cable Signal Extension Up to 365Ft Ultra HD 1080p@60Hz



Specification: 395ft HDMI USB KVM Extender 120m Over Single CAT5e/6 Ethernet IR Extender Splitter Support 1080P HDCP,Keyboard Mouse

HDMI Version-------------------------------------------------HDMI1.3a
Transmitter Input Ports -------------------------------------HDMIx1(AF),USB(BF)x1
Transmitter Output Ports ------------------------------------HDMIx1(AF),Cat5e/6x1,IR TXx1
Receiver Input Ports-----------------------------------------Cat5e/6x1,IR RXx1
Receiver Output Ports----------------------------------------HDMIx1(AF),USB(AF)x2
Frequency Bandwidth------------------------------------------2.25Gbps (single link)
Input/Output Resolutions-------------------------------------480i/p,576p,720p,1080i/p
Audio--------------------------------------------------------Sample rate:32kHz,44.1kHz,48kHz
IR remote control--------------------------------------------38 KHz;NEC
ESD Protection Human Body Model -----------------------------± 8kV (air-gap discharge)/± 4kV (contact discharge)
Operating Temperature----------------------------------------0˚C ~ 70˚C / 32˚F ~ 104˚F
Storage Temperature -----------------------------------------20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity--------------------------------------------20~90% RH (non-condensing)
Dimensions (mm)----------------------------------------------100x102x25
