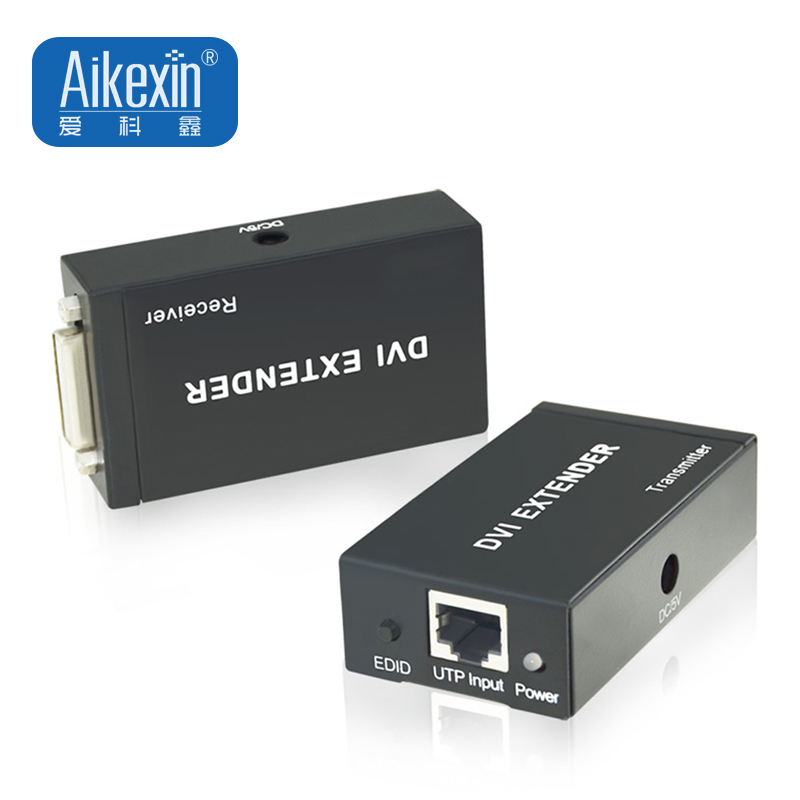

DVI60M

DVI Extender 60m

Introduction:
The DVI to RJ45 Extender use single cat-5e or cat-6(recommended) cables up to 60 meters instead of DVI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because DVI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

Description

196ft DVI Extender 60m 1080p RJ45 Network Extender Over Single Cat5e/Cat6 Ethernet Cable Extensor DVI,DVI to UTP Converter

1.0 Instructions:196ft DVI Extender 60m 1080p RJ45 Network Extender Over Single Cat5e/Cat6 Ethernet Cable Extensor DVI,DVI to UTP Converter

The DVI to RJ45 Extender use single cat-5e or cat-6(recommended) cables up to 60 meters instead of DVI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because DVI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

2.0  FEATURES:196ft DVI Extender 60m 1080p RJ45 Network Extender Over Single Cat5e/Cat6 Ethernet Cable Extensor DVI,DVI to UTP Converter

1.HDCP 1.2 protocol compliant

2. Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

3. Signal transmission :cat5e or cat-6(recommended) cables up to 60 meters instead of DVI cables are connected between TX and RX Extender.

4.  Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

5. Support EDID

6. Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

7. No loss of quality

8.Installs in minutes

9. Need DC5V/1A power supply

3.0  SPECIFICATION:196ft DVI Extender 60m 1080p RJ45 Network Extender Over Single Cat5e/Cat6 Ethernet Cable Extensor DVI,DVI to UTP Converter

Length of CAT-6 cable between Transmitter and Receiver------------Up to 60 meters(MAX)

HDMI Input------------------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format input----------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output---------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format output------------------------LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth-------------------------------------------------------------------------------165MHz

Max baud rate----------------------------------------------------------------------------------4.95Gbps

Input Video signal --------------------------------------------------------------0.5~1.5Volts p-p

Output DDC signal----------------------------------------------------------------------5Volts p-p (TT1L)

Input/Output HDMI cable distance-------------------------≤20m AWG26 HDMI standard cable

Max working current--------------------------------------------------------------------------800mA

Power adapter format------------------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range------------------------------------------------------------ (-15 to +55℃)

Operating Humidity range-------------------------------5 to 90%RH (No Condensation)

4.0  INSTALLATION AND PRECAUTIONS:196ft DVI Extender 60m 1080p RJ45 Network Extender Over Single Cat5e/Cat6 Ethernet Cable Extensor DVI,DVI to UTP Converter

To avoid electric shock , product damage and to protect your safety , please notice the following:

1.Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2.The equipment should not be placed under the sun , rain and damp or  unventilated environment.

3. Liquid items should not be placed on the equipment.

4.Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5.Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6.Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.

5.0  PACKAGING ACCESSORIES:196ft DVI Extender 60m 1080p RJ45 Network Extender Over Single Cat5e/Cat6 Ethernet Cable Extensor DVI,DVI to UTP Converter

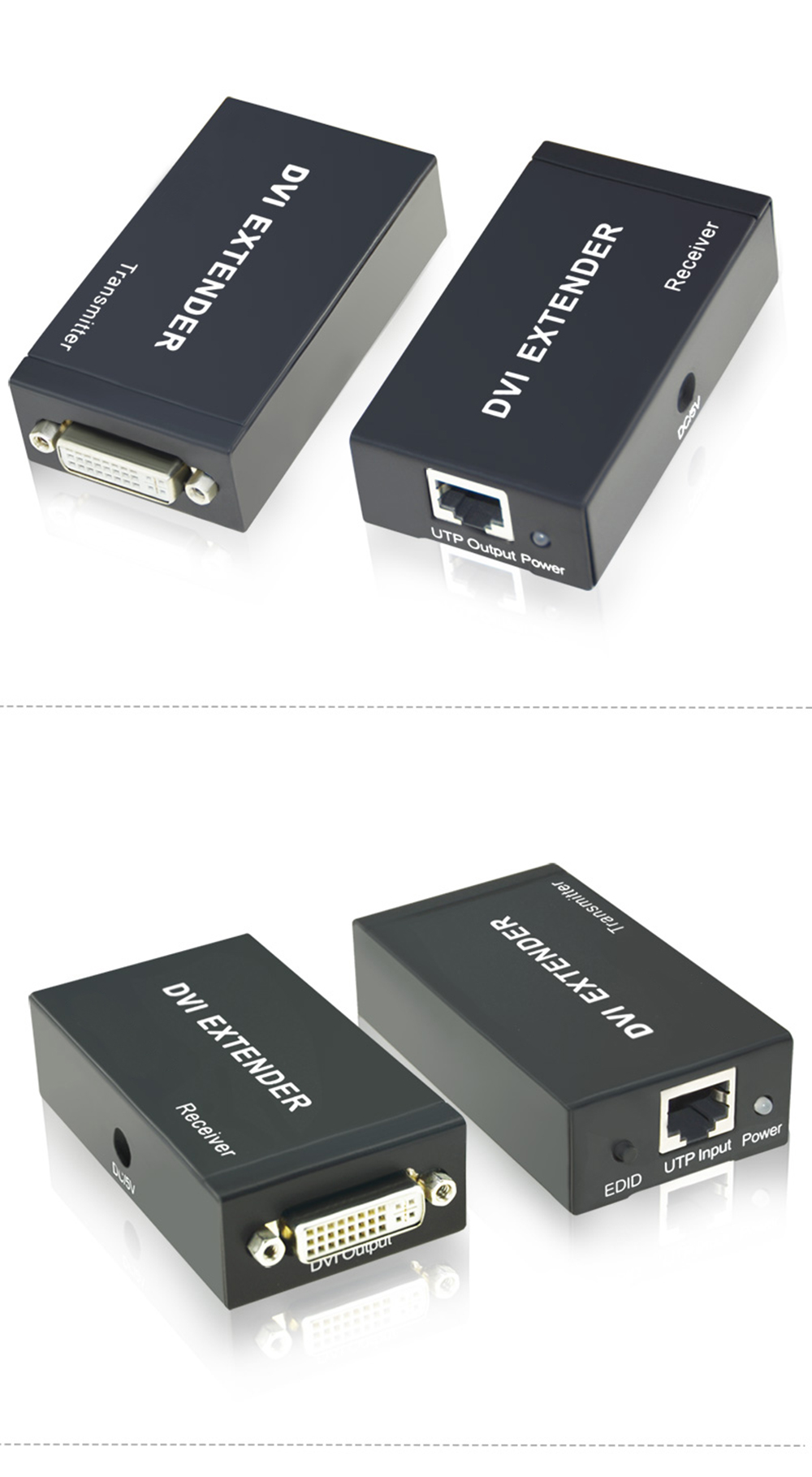

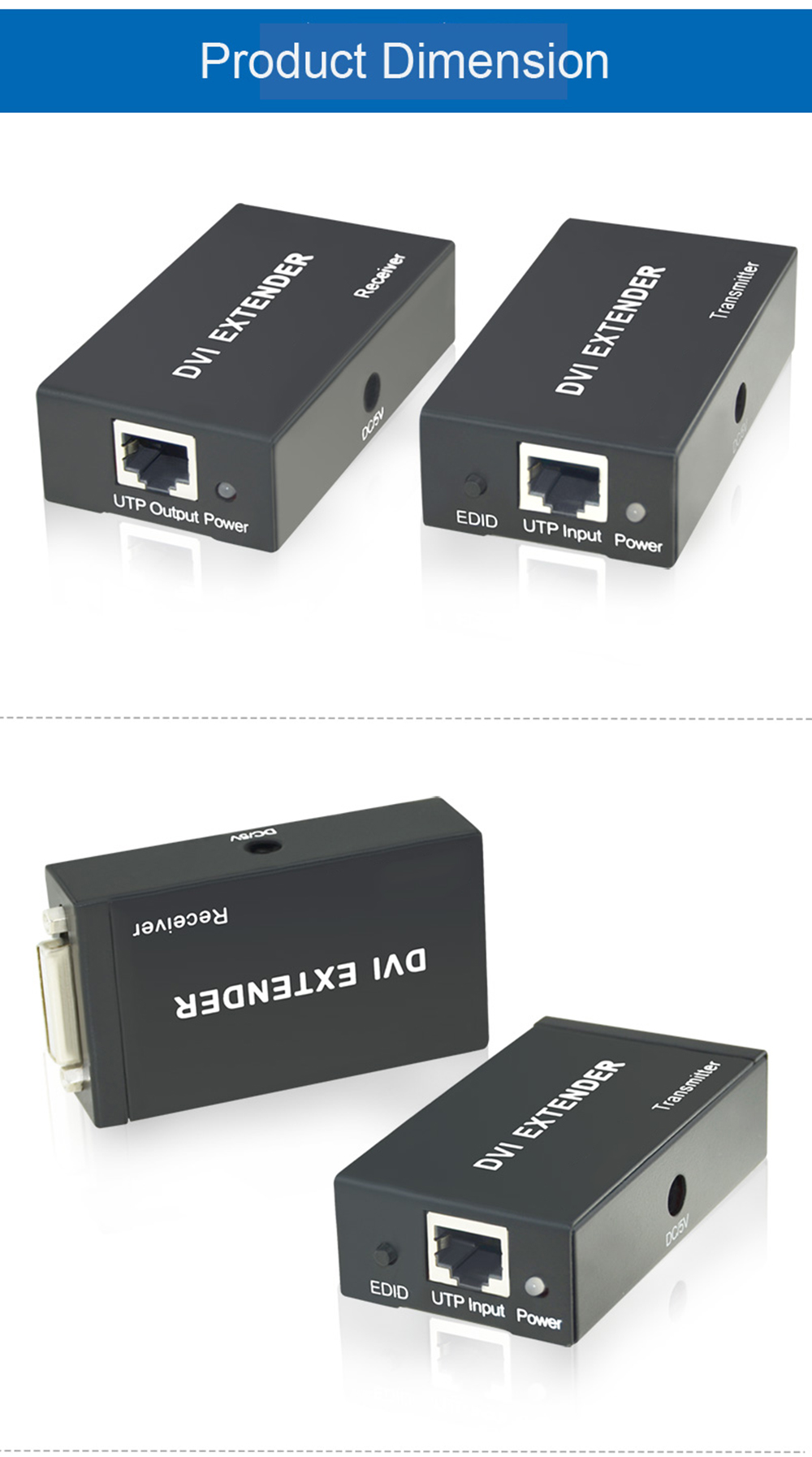

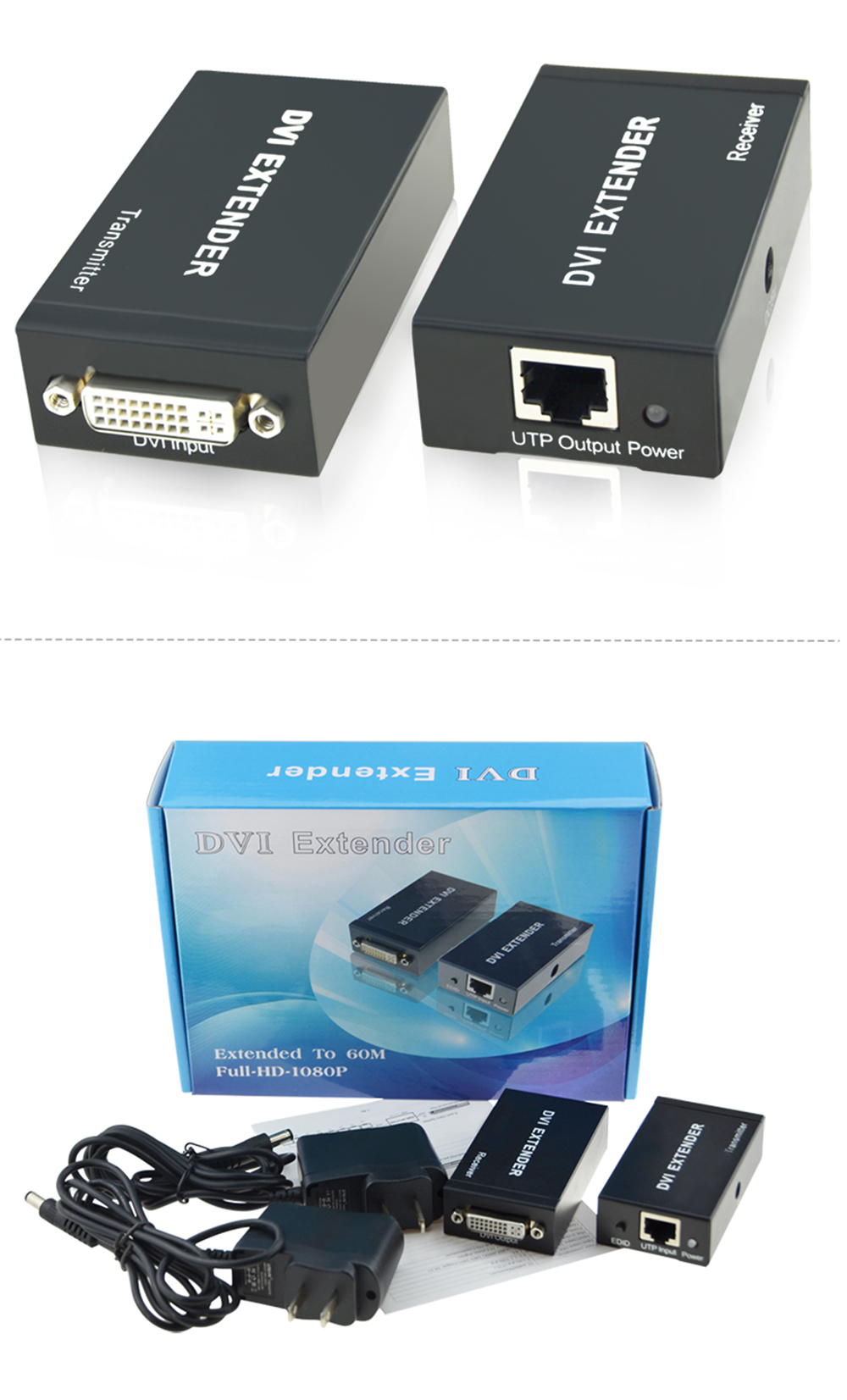

When first unpacking your extender please check to see if the following items are included:

1.Power supply-----------------------2 Pcs

2.User manual------------------------1 Pcs

3.DVI Transmitter--------------------1 Pcs

4.DVI Receiver-----------------------1 Pcs

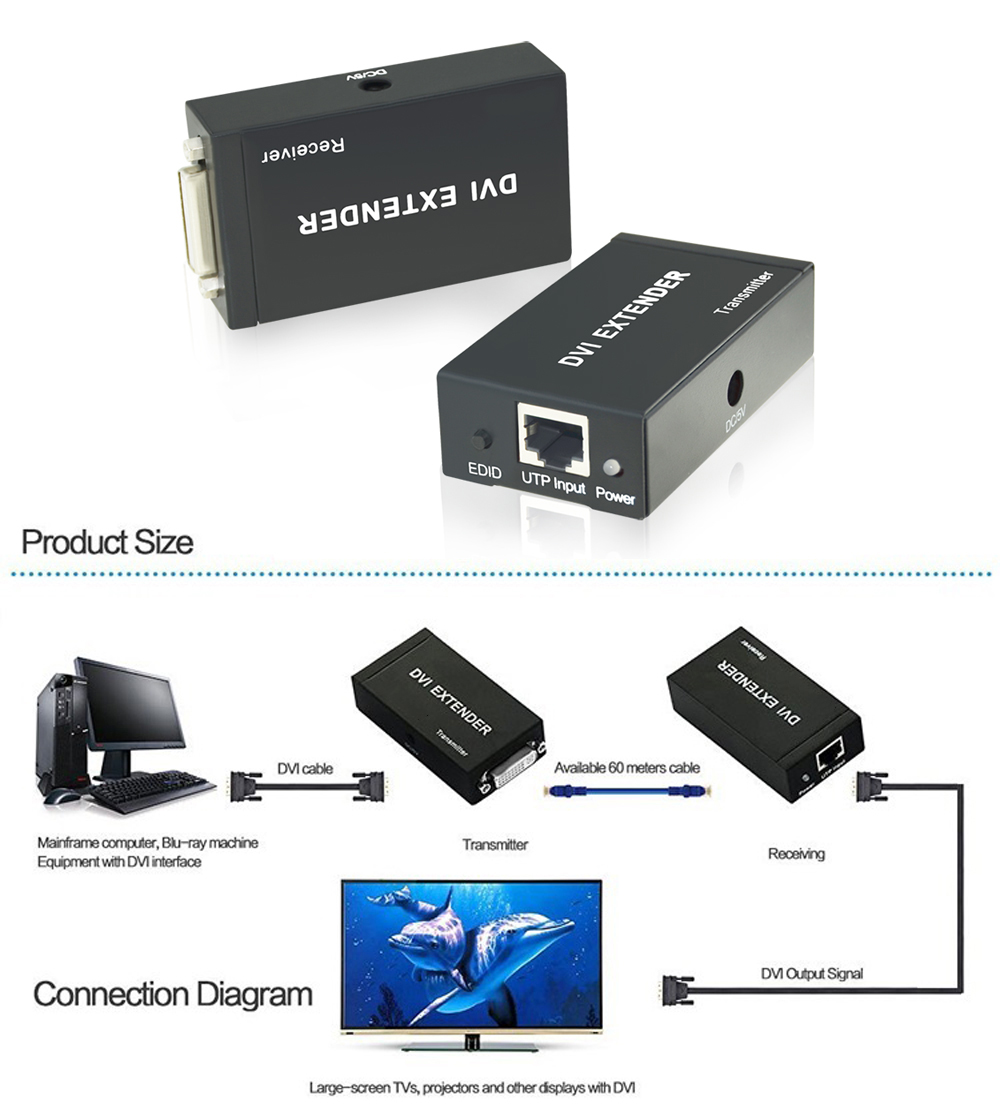

6.0 Operating and Connecting:196ft DVI Extender 60m 1080p RJ45 Network Extender Over Single Cat5e/Cat6 Ethernet Cable Extensor DVI,DVI to UTP Converter

1.Connect the DVI input source via DVI cable to the Sender(TX) DVI Input;

2.Conect the CAT5e/6 Cable between output of Transmitter(TX) and input of Receiver(RX)

3.Connect the ourput of Receiver to DVI display

4.Connect DC5V power supply to the DVI over CAT5E/6 60M TX&RX
