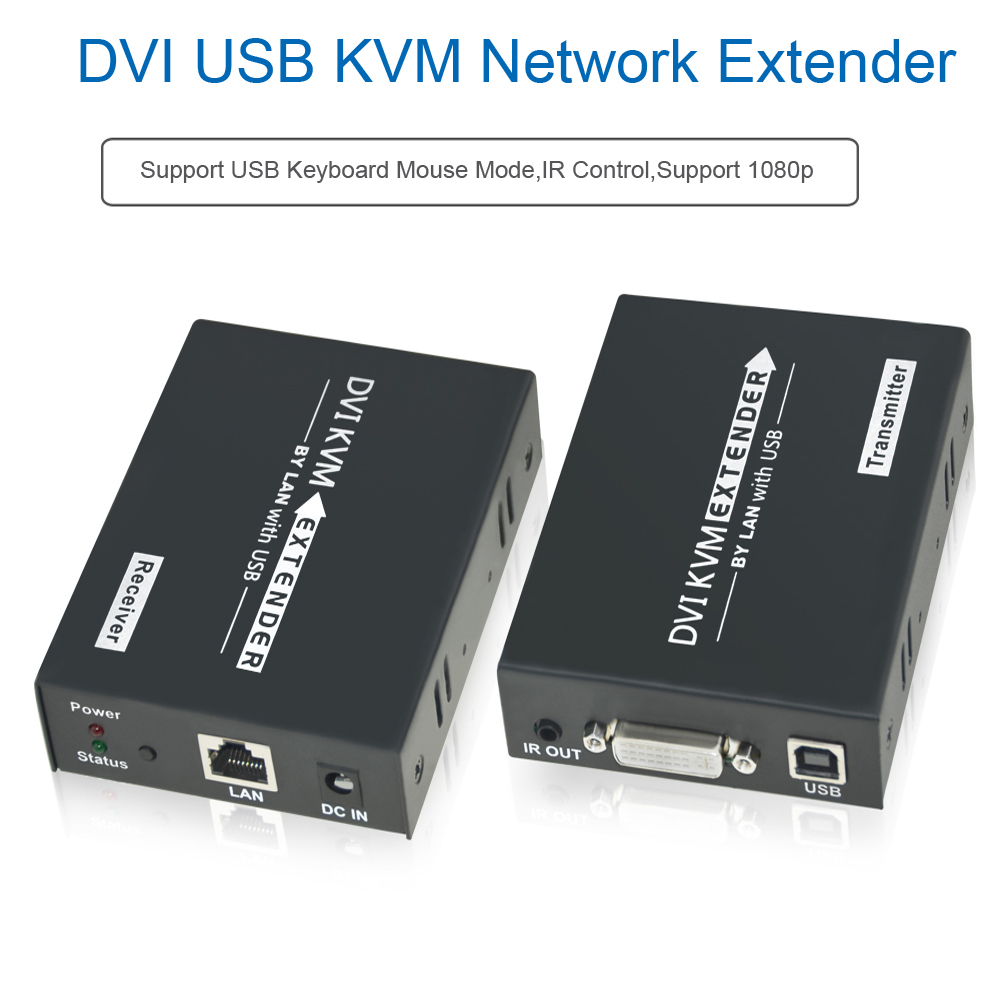

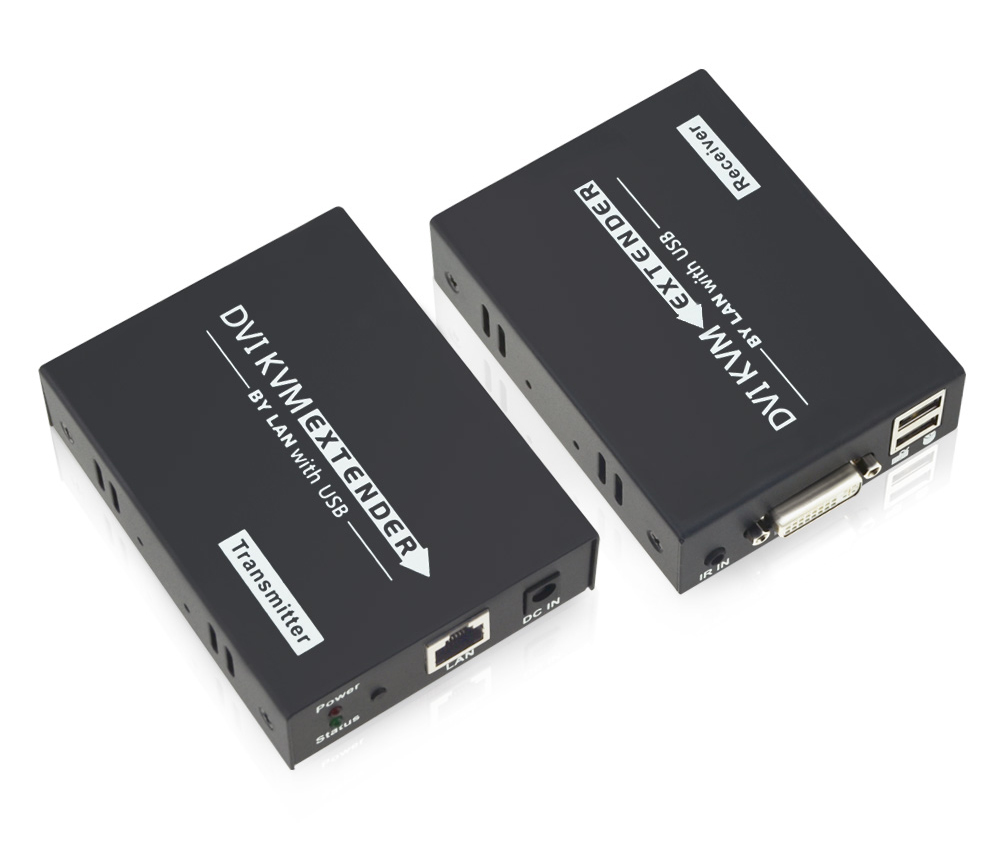

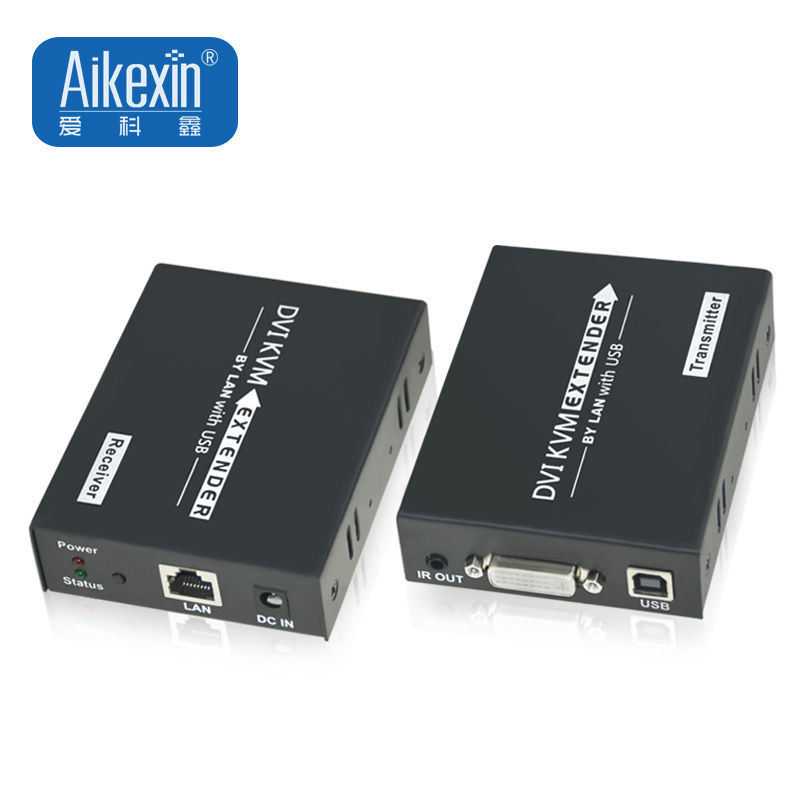

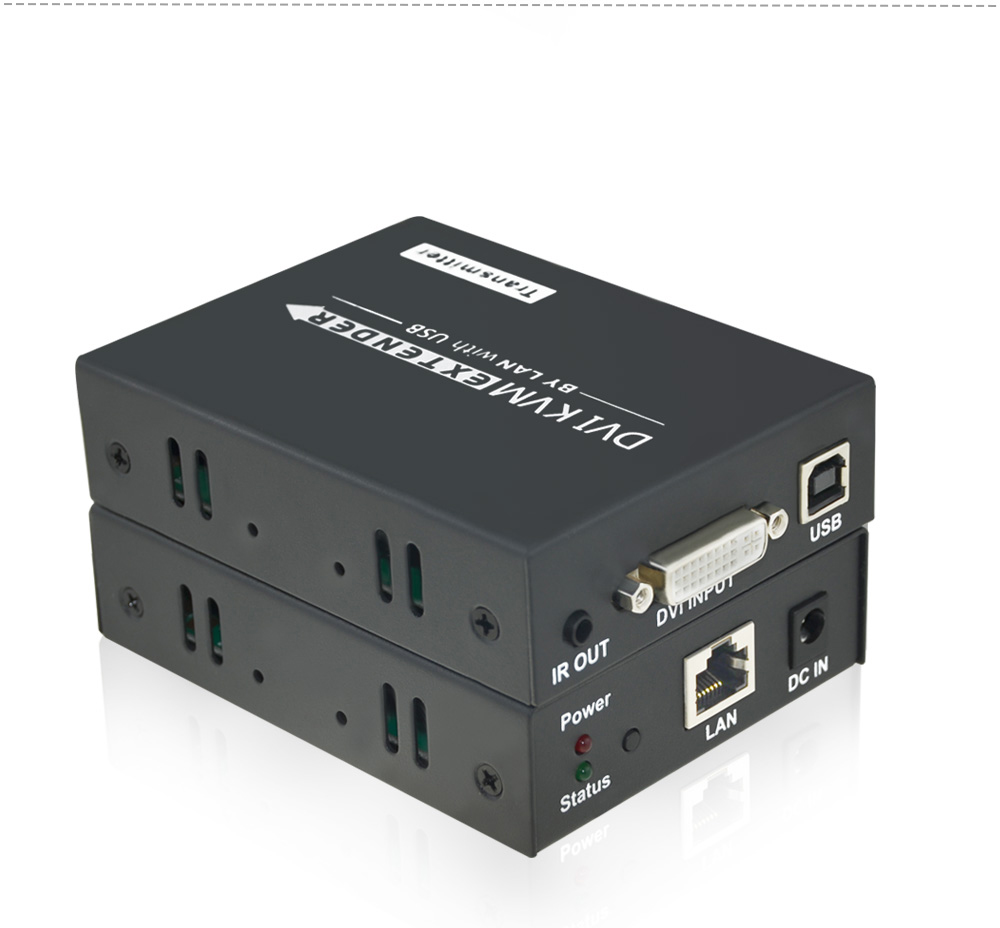

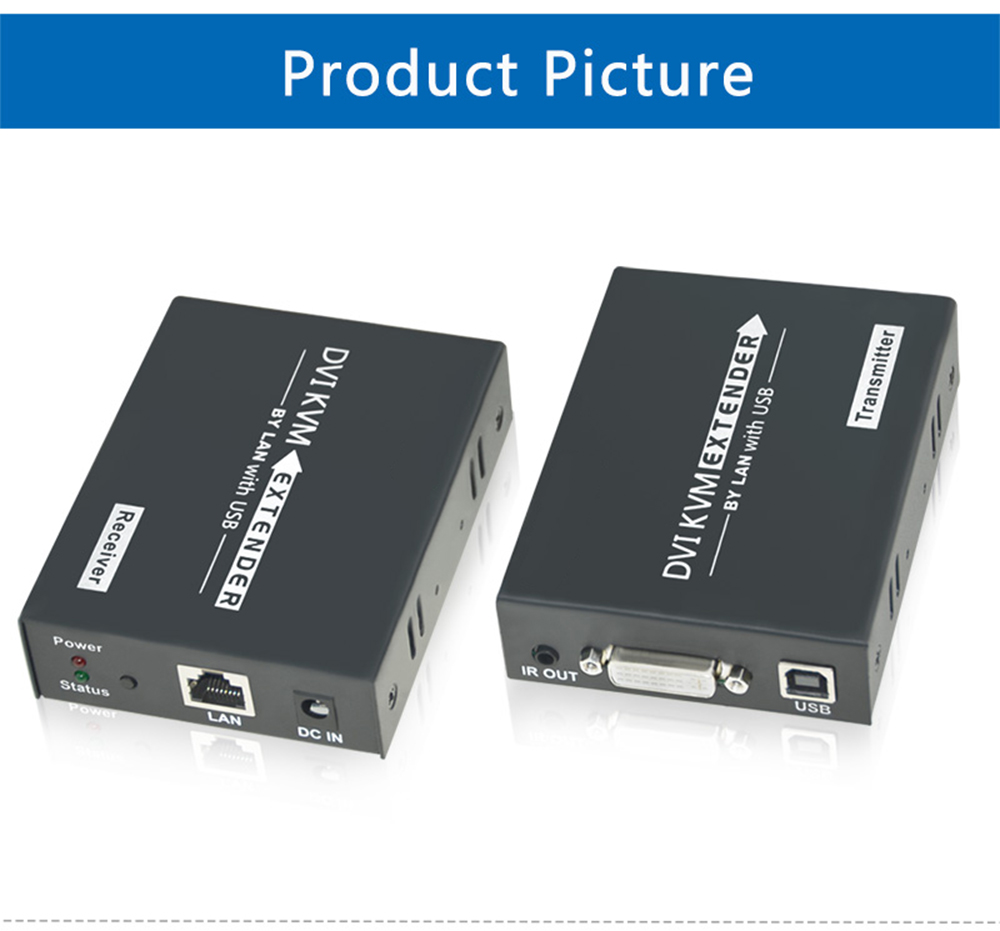

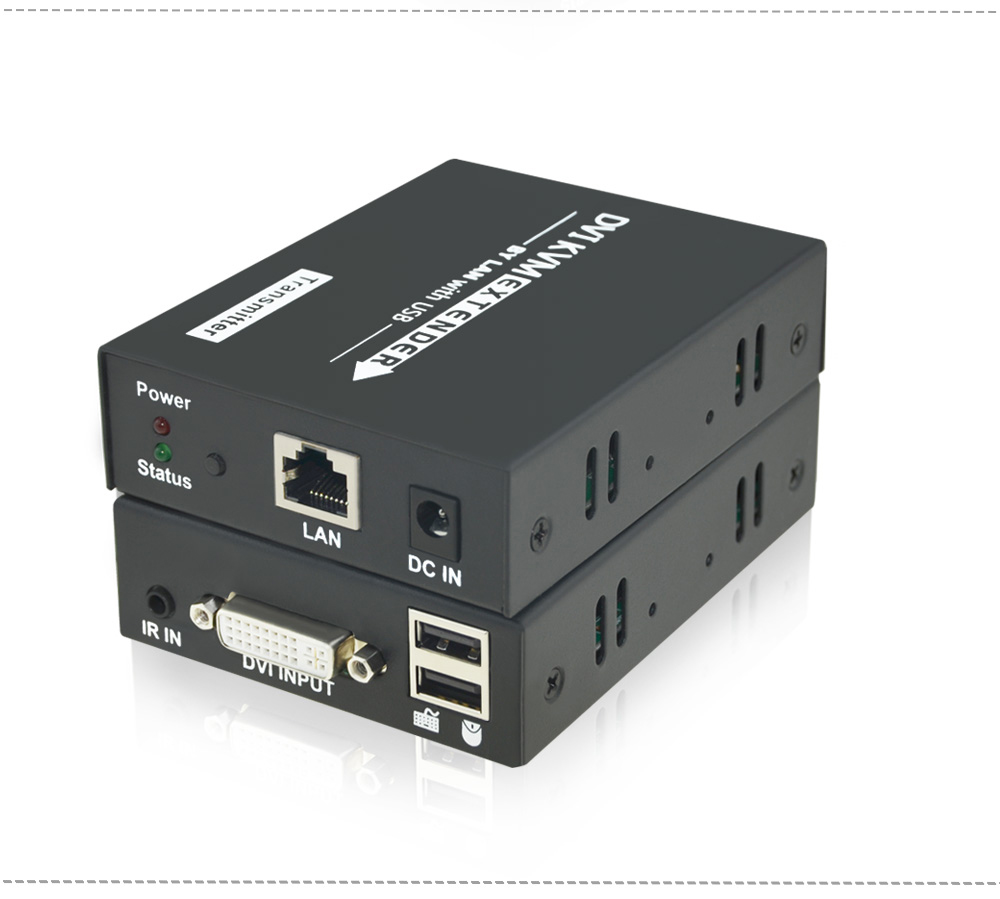

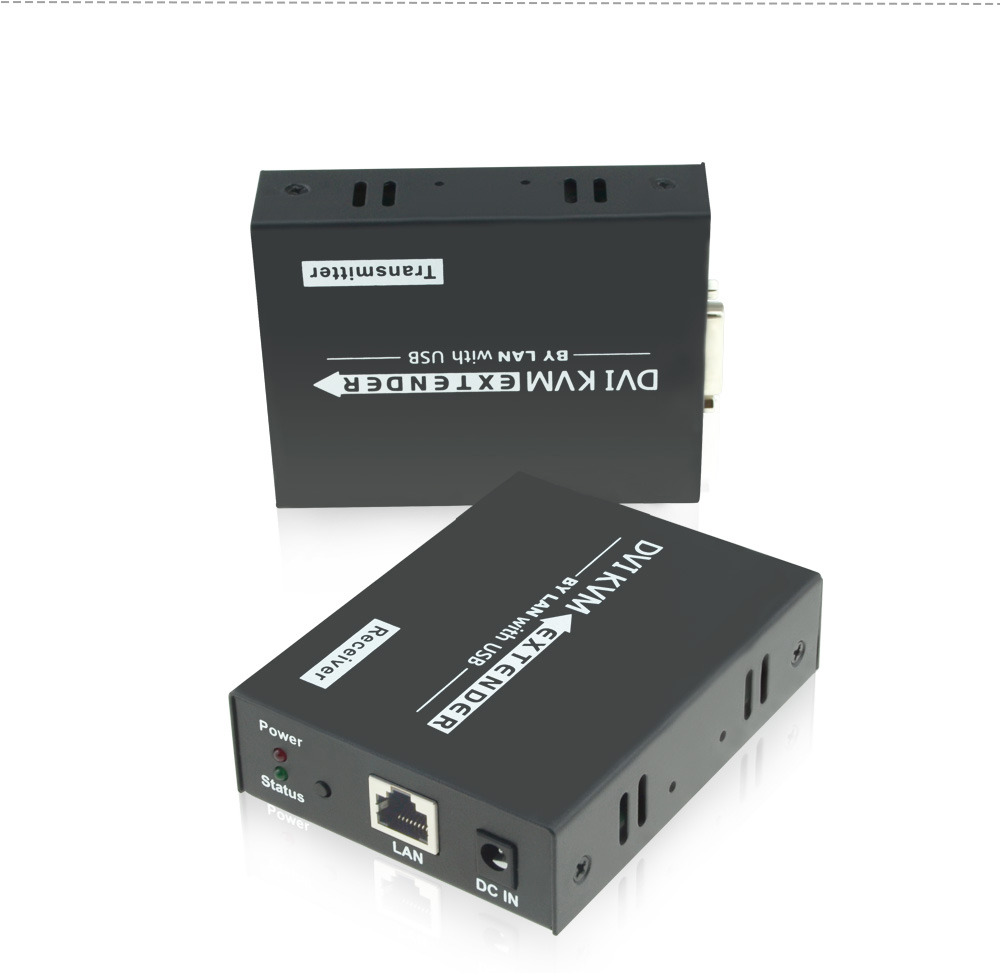

DVIKVM120M

DVI USB KVM Extender 120M

Introduction:

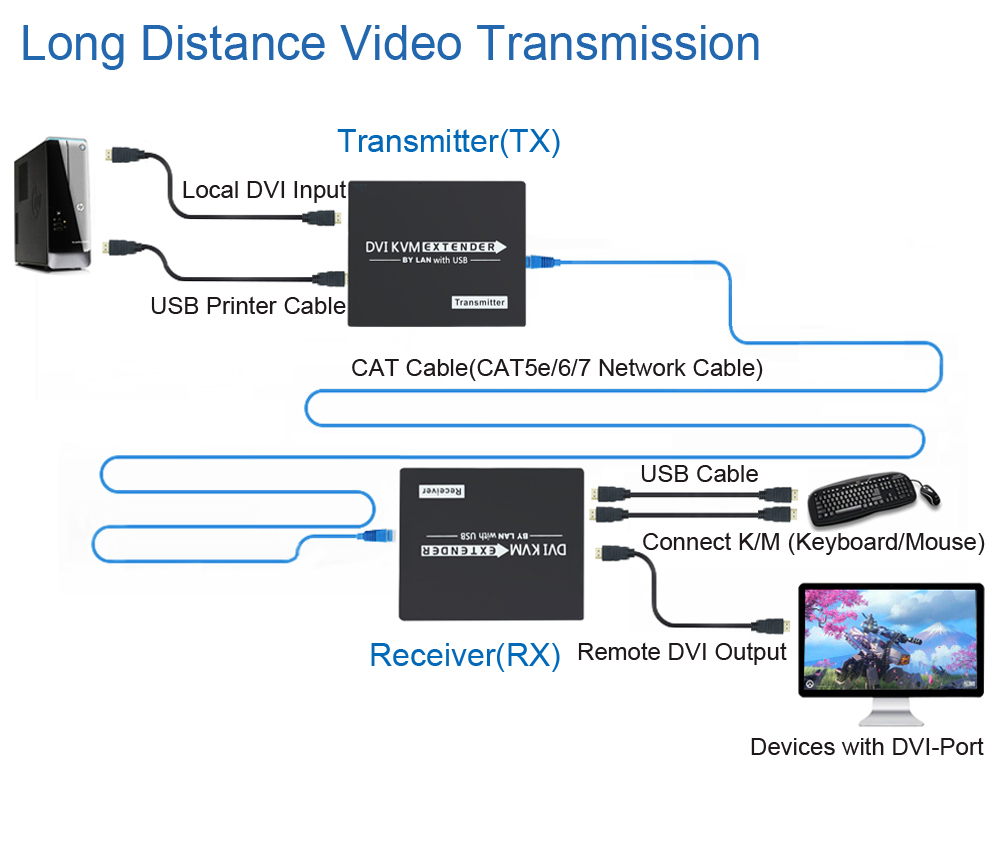

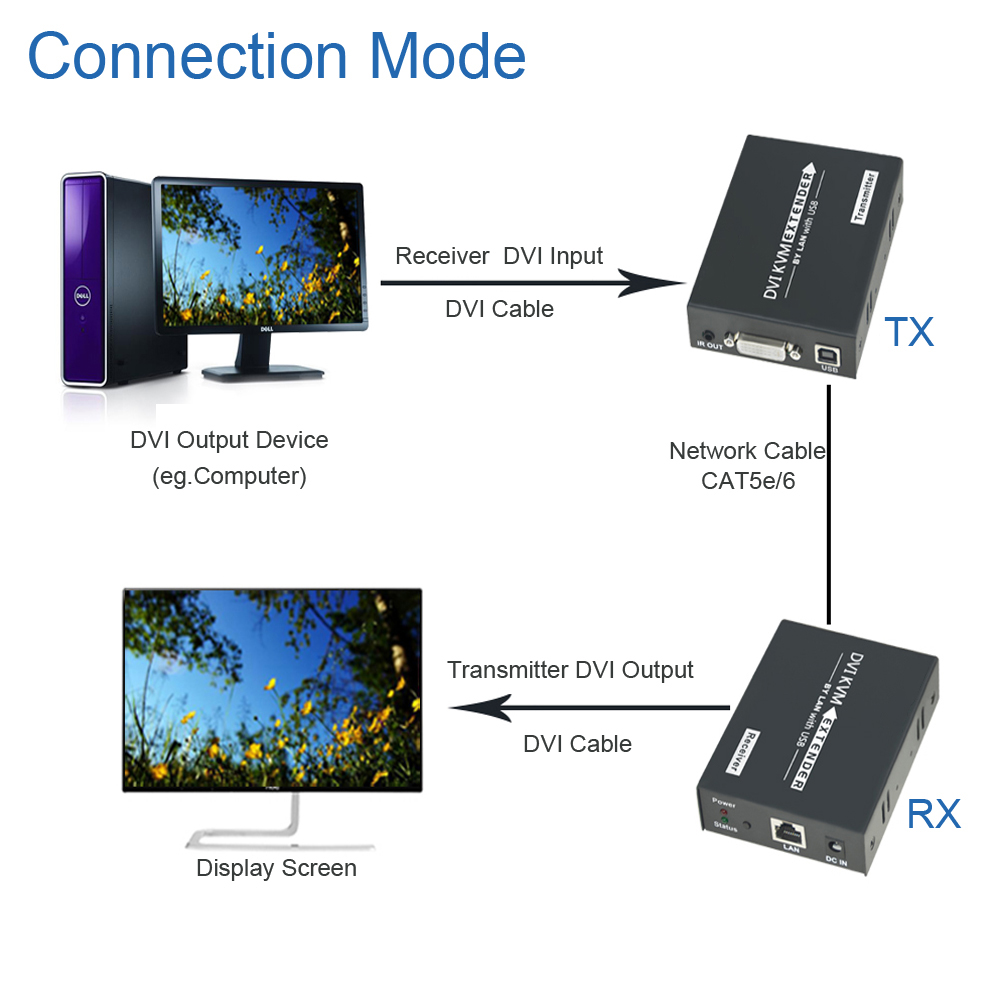

DVI KVM+IR Extender,DVIKVM120M,uses single UTP LAN cable CAT5e/6 to substitute DVI cable to achieve long distance transmission,the transmission distance extend up to 120 meters under 1080P.The 120m DVI Extender Over Cat6 provides extension of DVI signals long distances over a single CAT6 cable,it supports high resolution up to 1080p and keyboard/mouse signal transmission.The DVI Extender Over Cat6 can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Description







Introduction:  120m DVI USB KVM Extender by RJ45 Cat5e/6 Splitter,395ft DVI KVM Extender 1080P 3D Keyboard Mouse IR Transmitter+Receiver

DVI KVM+IR Extender, DVIKVM120M,uses single UTP LAN cable CAT5e/6 to substitute DVI cable to achieve long distance transmission,the transmission distance extend up to 120 meters under 1080P.The 120m DVI Extender Over Cat6 provides extension of DVI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p and keyboard/mouse signal transmission. The DVI Extender Over Cat6 can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security    .In the same time, this extender can support infrared control signal pass through.

Features: 120m DVI USB KVM Extender by RJ45 Cat5e/6 Splitter,395ft DVI KVM Extender 1080P 3D Keyboard Mouse IR Transmitter+Receiver
1. Transmits DVI video and audio signals up to 60m over a single CAT6 cable;
2. Support video resolution up to 1920*1080@60Hz, 3D signal;
3. Support keyboard and mouse signal transmission;
4.Support copy EDID function, can match many kind display device;
5. Compliance with DVI 1.3 and HDCP 1.2 standard;
6. High compatibility, can auto-match source and display device;
7. Built-in automatic adjustment system, make the image smooth, clear and stable;
8.Support Infrared control signal pass through via LAN
9.By transmitting keyboard and mouse data via LAN, it is easy to control PC remotely
10.With customized remote button, it is easy to turn on PC remotely
11. Built-in ESD protection system;
12. Simple to install, plug and play;

Specification: 120m DVI USB KVM Extender by RJ45 Cat5e/6 Splitter,395ft DVI KVM Extender 1080P 3D Keyboard Mouse IR Transmitter+Receiver

Parameter

Description

  Video

Standards

DVI 1.0; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

1920X1080@60Hz

Connector

DVI-D

Impedance

100Ω

USB

Interface

To PC: standard MINI-USB or PS2
To K/M: standard USB, PS2

optional

USB Signal

HID Signal

UTP

Interface

RJ45

Transmission Distance

CAT6-120m

Other

Power supply

The power adapter: DC 5V

Power dissipation

MAX 3W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

113*81*26mm

The warranty

1 year free warranty

Packing List:120m DVI USB KVM Extender by RJ45 Cat5e/6 Splitter,395ft DVI KVM Extender 1080P 3D Keyboard Mouse IR Transmitter+Receiver

1.Main Adapter- DVI KVM Extender 120m x2pcs( Transmitter +Receiver)

2. DC5V Power Supply x 2pcs(US EU AU UK Power Supply for your choice)

3.USB Printer Cable x1pc

4. User Manual x 1pc
