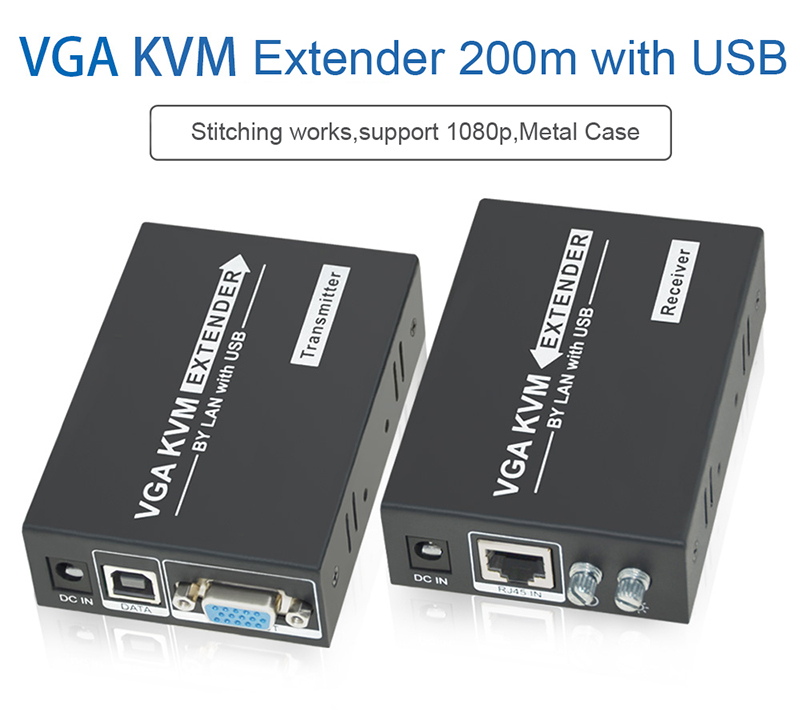

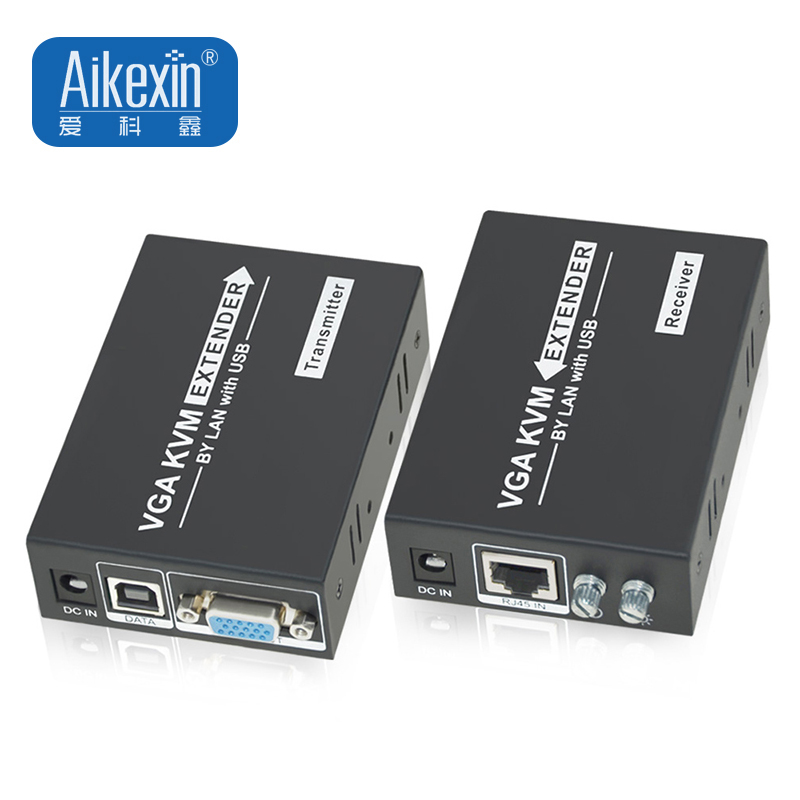

The VGA KVM extender provides extension of VGA video audio signal long distances over a single Ethernet RJ45 CAT5e/6 cable, it supports high resolution up to 1920*1080@60Hz and keyboard/mouse signal and external stereo audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:650ft VGA KVM Extender 200m over Single UTP CAT5e/6 LAN RJ45 Splitter Extender, USB Keyboard Mouse VGA KVM Extender TX+RX

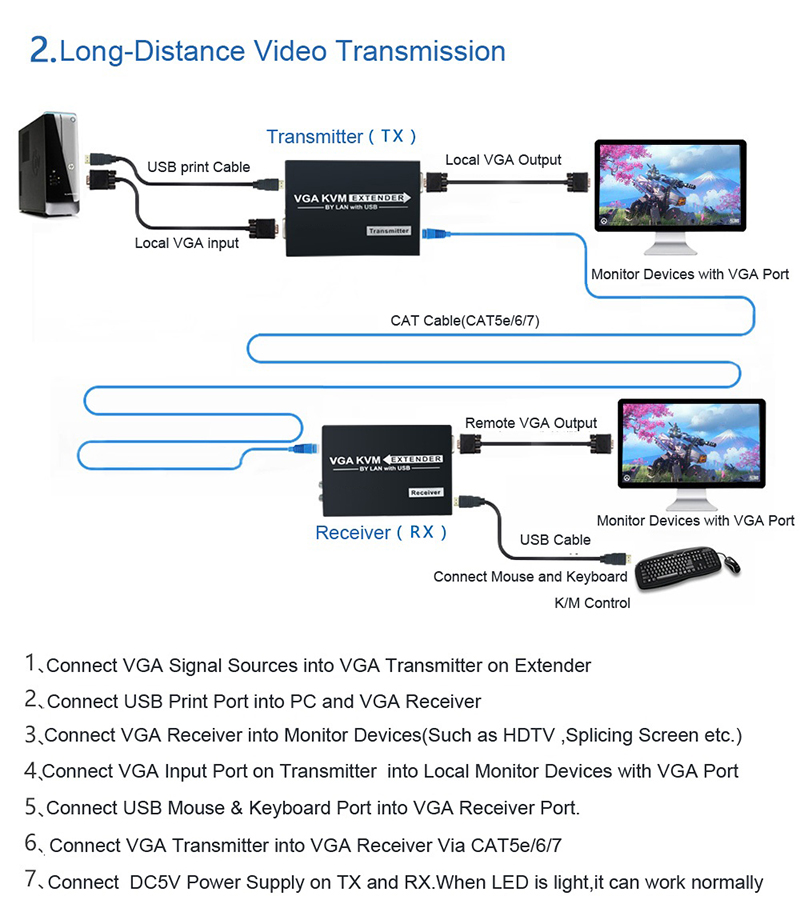

- Transmits VGA video and audio signals up to 200m/660ft over a single CAT6 cable.
- Support video resolution up to 1920*1080@60HZ.
- Compliance with VGA standard.
- Support keyboard and mouse signal transmission.
- High compatibility, can auto-match source and display device.
- Built-in automatic adjustment system, make the image smooth, clear and stable.
- Built-in ESD protection system.
- Simple to install, plug and play
Specifications:650ft VGA KVM Extender 200m over Single UTP CAT5e/6 LAN RJ45 Splitter Extender, USB Keyboard Mouse VGA KVM Extender TX+RX
Video Standards VGA
Maximum Pixel Clock 380MHz
Maximum Data Rate 6.75Gbps
Resolution Max: 1920X1080@60Hz
Connector VGA
USB Interface USB,HID signal
UTP Interface IEEE 568B
Transmission Distance Cat5e Max: 150m
Cat6 Max: 200m
Other Power Supply The power adapter: DC 5V
Power Dissipation Max: 4W
Temperature Operating: -5 ~ +70
Humidity Operating: 5% ~ 90%

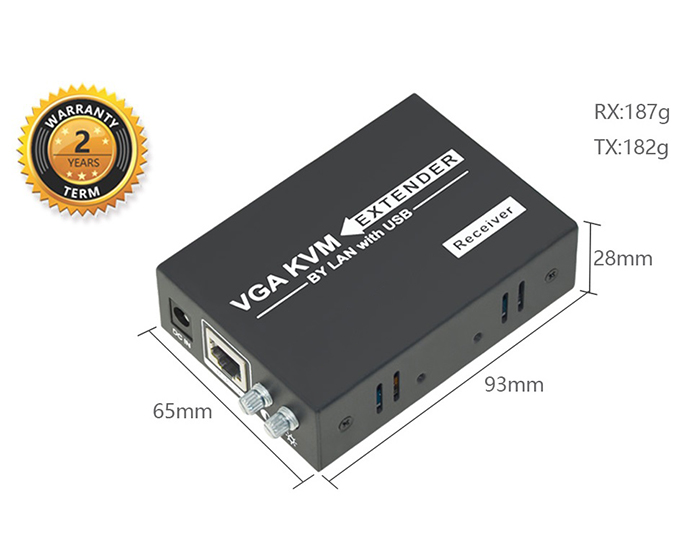

Dimension 95x65x26mm
The Warranty 1 Year Free Warranty
Packing List:650ft VGA KVM Extender 200m over Single UTP CAT5e/6 LAN RJ45 Splitter Extender, USB Keyboard Mouse VGA KVM Extender TX+RX
1.Main Adapter- VGA KVM Extender 200m x 2pcs (1pc Transmitter +1pc Receiver)
2.DC12V Power Supply x 2pcs- US EU UK AU Power Plug for your choice
3.USB Printer Cable x1pc
4.User Manual
