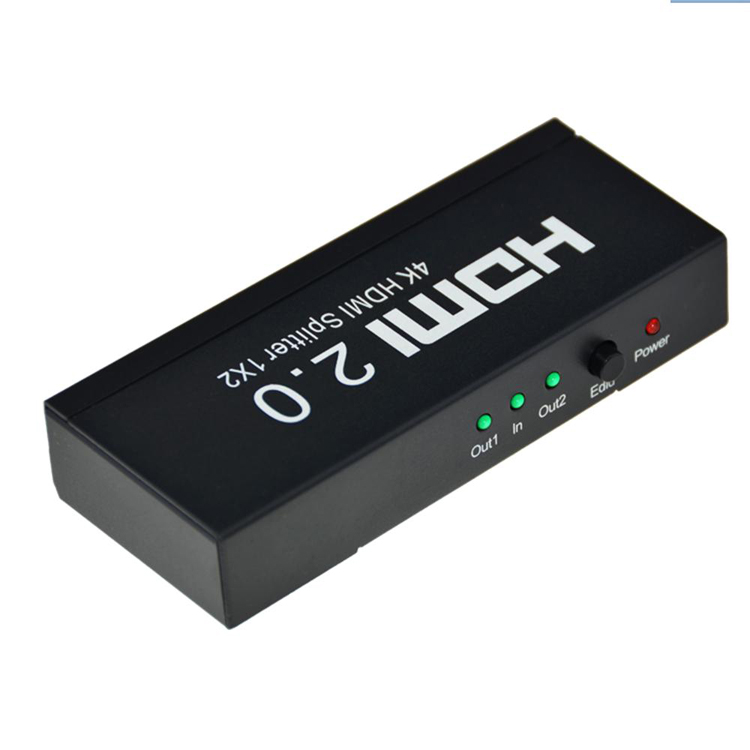

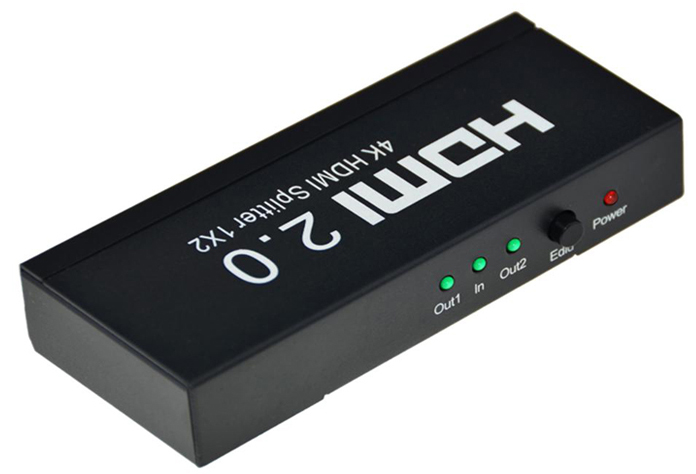

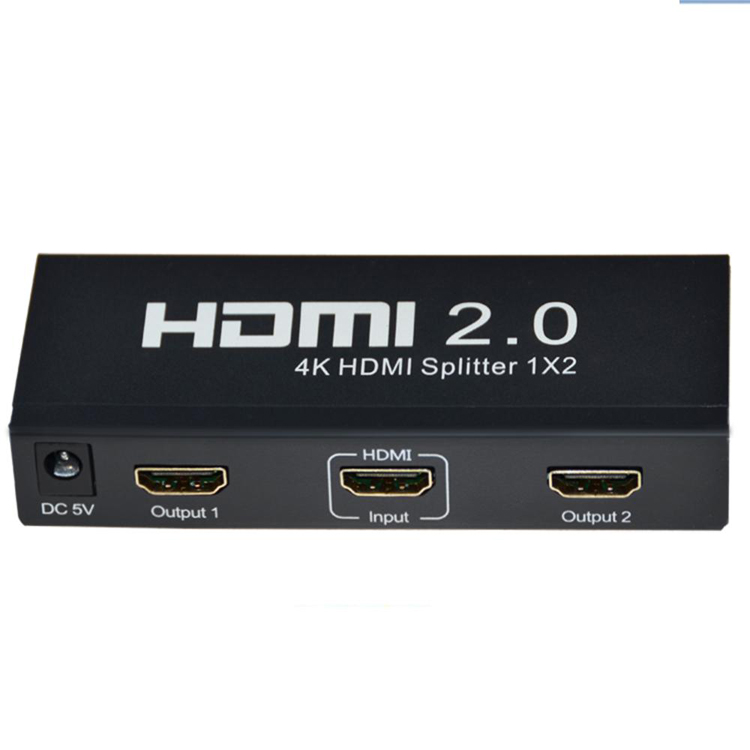

1x2 HDMI Splitter 2.0 Version,HDCP 2.2

Introduction:
This 1 by 2 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to two HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV420) resolution and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of reliable and high quality HDMI distribution

Features:
Compliant with HDMI2.0, HDCP2.2 and DVI 1.0.
Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0.
Support 3D frame sequential video format up to 1080p@60Hz.
Support high resolution VESA mode video format up to QSXGA@60Hz.
Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio.
Support smart EDID control.

Specifications:
HDMI 2.0 Output Port   2 Ports
HDMI resolution   480i -1080p50/60, 4Kx2K@24/30  4k2k@60Hz with 12bit YCBCR 4:2:0  VGA-UXGA
Video Bandwidth  300MHz/10.2 Gbps
ESD Protection
Human Body model:  ±8 kV (air-gap discharge)  ±4 kV (contact discharge)
Power Supply  5 V/1A DC
Dimensions   118*48*20
Max working current  500mA
Weight   153g
Operating Temperature range  -15 to +55℃
Silkscreen Color  Black
Chassis Material  Metal
Operating Temperature  0 °C~40 °C/ 32 °F~104 °F
Power Consumption   1.5W

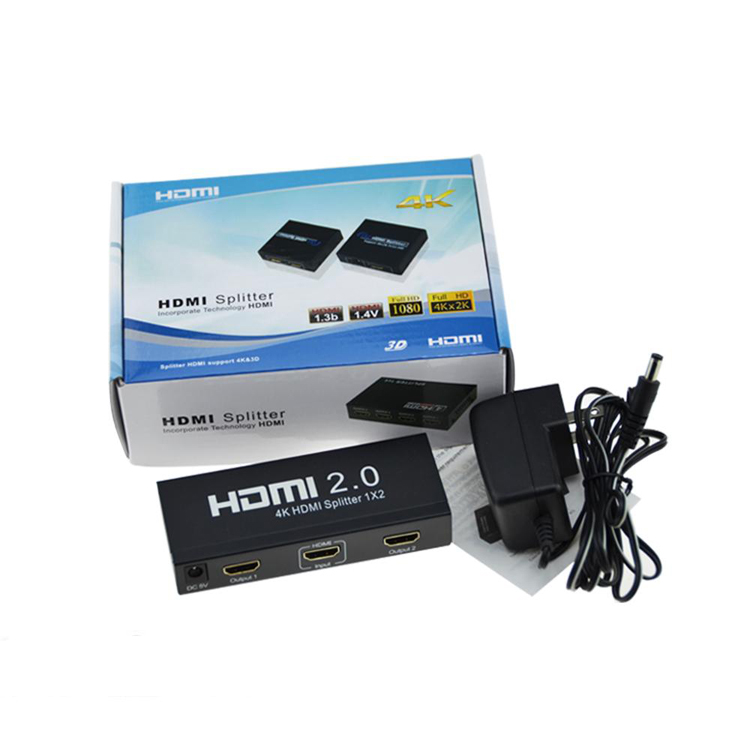

Packing Contents:
1)Main HDMI splitter 1x2 4Kx2K-2.0 version
2)5VDC Power Supply
3)Operating Instructions
