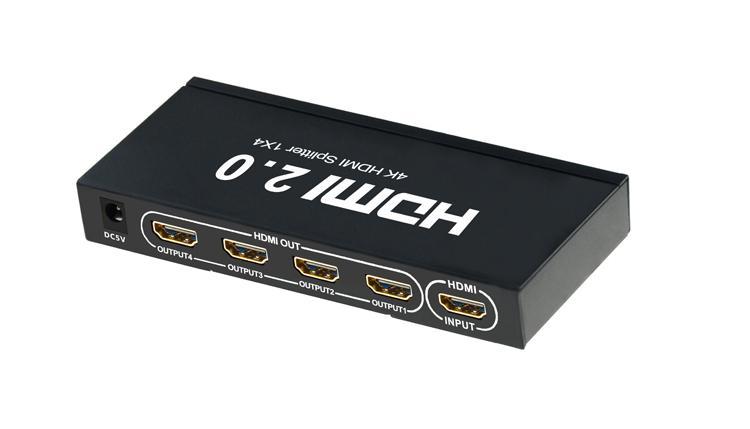

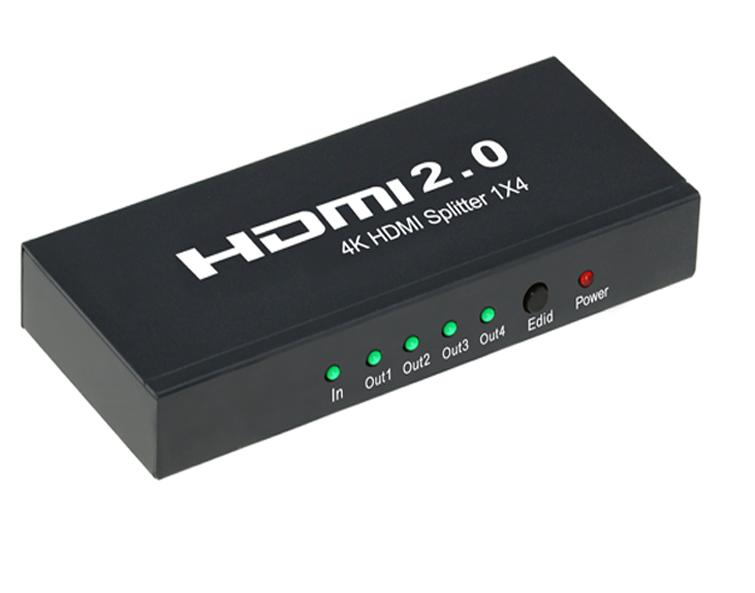

1x4 HDMI Splitter 2.0 Version,HDCP 2.2 with EDID

Features:

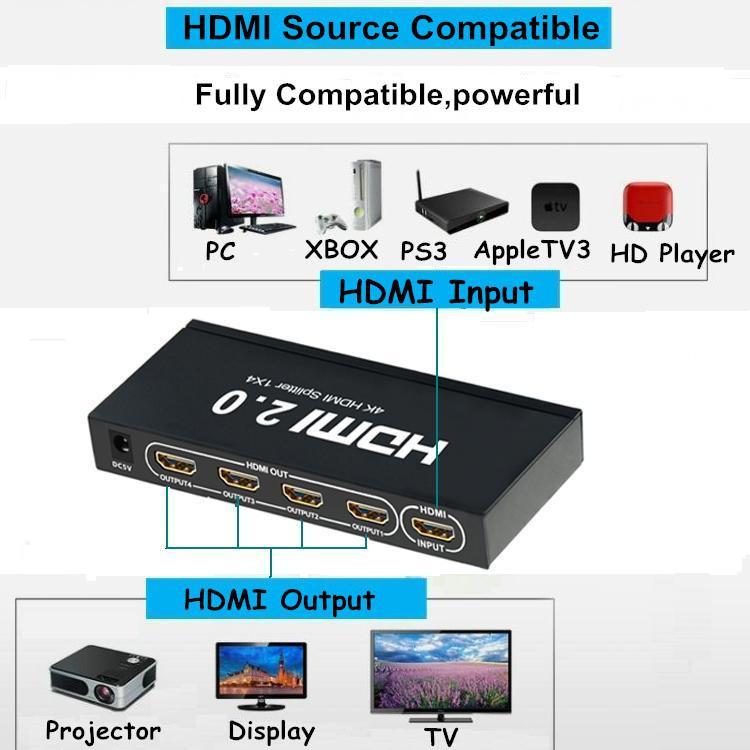

One HDMI 2.0 input signal split to four HDMI 2.0 sink devices
Support HDR
Support 4K*2K @60Hz resolution
Support deep color 24bit, 30bit, 36bit
Video Format Support: 4Kx2K/60Hz 10Bit YcbCr4:2:0; 4Kx2K/60Hz 12Bit YcbCr 4:2:0 ; 4Kx2K/60Hz 8Bit YcbCr 4:4:4/ YcbCR4:2:0(Note:It only support the standard HDMI Source YcbCR4:4:4 Signal)
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Input/Output Cable distance can be up to 10m transmit the 1080P signal by using standard AWG24 HDMI Cable
HDMI Input/Output Cable distance can be up to 5m transmit the 4Kx2K signal by using standard AWG24 HDMI Cable
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V/2A power supply

SPECIFICATIONS:
HDMI resolution: 4K@60Hz /4K@30Hz/3D/1080P/1080i/720p/576p/576i/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth: 450MHz
Max baud rate: 13.5Gbps
Input/Output TMDS signal : 5Volts p-p (TTL)
Input/Output cable distance: ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable
Max working current: 1000mA
Power adapter format: Input: AC (50HZ, 60HZ) :100V-240V; Output: DC5V/2A
Operating Temperature range: 0 to +40℃
Storage Temperature range:- 20 to +60℃
Operating Humidity range: 5 to 85%RH (No Condensation)
Storage Humidity range: 5 to 95%RH (No Condensation)
Dimension (L x W x H): 139X64X22(mm)
Weigh: 220g

PACKAGE CONTENTS:
1. Main unit 1pc
2. Power Adaptor 1pc
3. User manual 1pc
