  Home - Products -HDMI Splitter

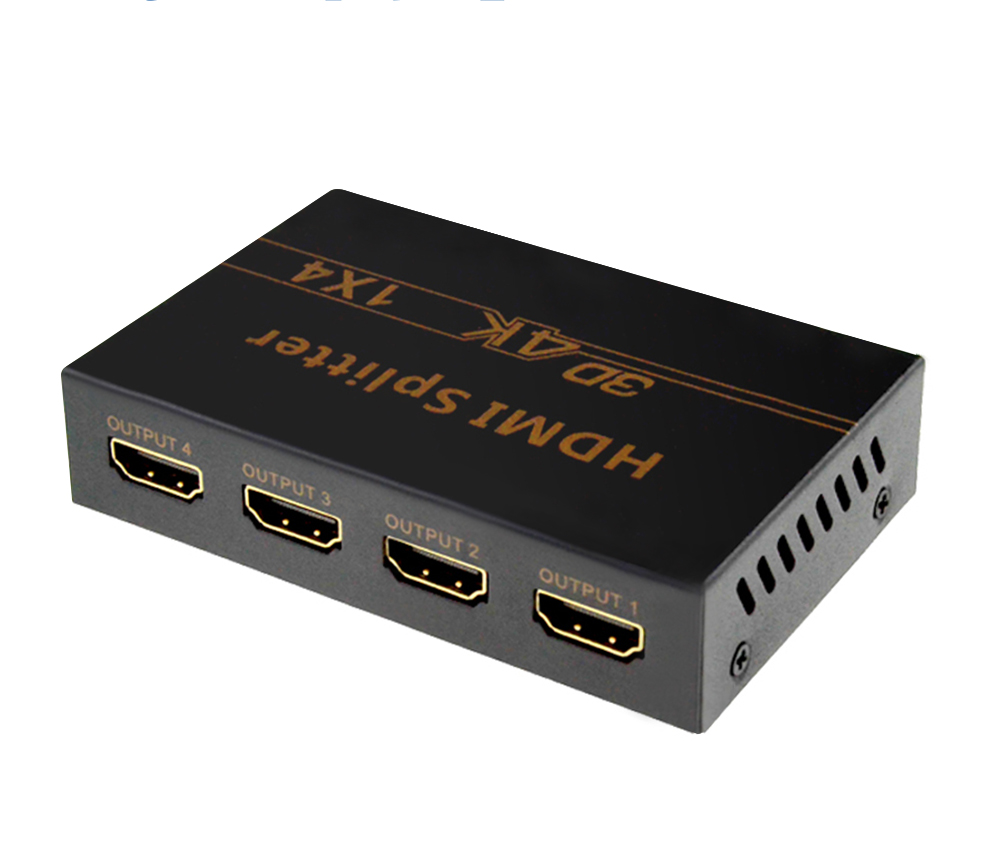

4KDK104C

HDMI Splitter 1x4

Introduction:
1.4v HDMI Splitter supports all the mandatory and several optional 4k formats described in HDMI 1.4 specifications, maintains sharp HDTV resolution up to 4kx2k full HD and 3D.
This 1×4 HDMI Splitter uses a single HDMI sources, accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Description



Ultra HD 4 Port HDMI Splitter 1x4,HDMI Splitter 1 In 4 Out Splitter HDMI 1.4 Divisor 4Kx2K 1080P 3D For HDTV Projector

Instruction:Ultra HD 4 Port HDMI Splitter 1x4,HDMI Splitter 1 In 4 Out Splitter HDMI 1.4 Divisor 4Kx2K 1080P 3D For HDTV Projector

1.4v HDMI Splitter supports all the mandatory and several optional 4k formats described in HDMI 1.4 specifications, maintains sharp HDTV resolution up to 4kx2k full HD and 3D.

This 1×4 HDMI Splitter uses a single HDMI sources, accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.



FEATURES: Ultra HD 4 Port HDMI Splitter 1x4,HDMI Splitter 1 In 4 Out Splitter HDMI 1.4 Divisor 4Kx2K 1080P 3D For HDTV Projector

1)HDMI 1.4V with 4Kx2K

2)Distributes 1 HDMI source to 4 HDMI Displays simultaneously.

3)Supports all the mandatory and several optional 4k formats

4)Supports High Definition Resolutions : 3840x2160@30Hz,3D 1080p@24HZ, 1080P@60Hz,  720p/1080i @ 120Hz

5) Compatible blue-ray,PS3 media format,fully support 3D,4K display

6) EIDI Duration: 4 seconds

SPECIFICATION



Name of the product

HDMI Splitter

Signal Inputs/ Output

1 input ..4 outputs

HDMI Connector

Type A 19 pin female

HDMI Version

HDMI 1.4V +HDCP1.3(compatible HDMI 1.3/1.2/1.1/1.0)

Support video format

DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080p/3D/3840x2160 video

Support audio format

DTS-HD Master Audio、Dolby true-HD etc.

Support video color format

Xv-YCC/deep color up to 48bit

Max baud rate

10.2Gps

Operating Frequency

Up to 340MHz

Max.cable extension

15 meters by 28AWGHDMI cable;20 meters by 26AWGHDMI cable

Power consumption

10 watts(Maximum)

Input/output DDC Signal

5 volts p-p (TTL)

Input/Output TMDS Signal

0.5~1.5 Volts p-p

Max working current

1.4A

Power adapter format... Input

AC(50HZ,60HZ) 100V-240V; Output: DC5V

Operating Temperature range

(- 15 to + 55 Celsius degree)

Operating Humidity range

5 to 90% RH (No Condensation)

Size

95X61X21mm

NW

116g

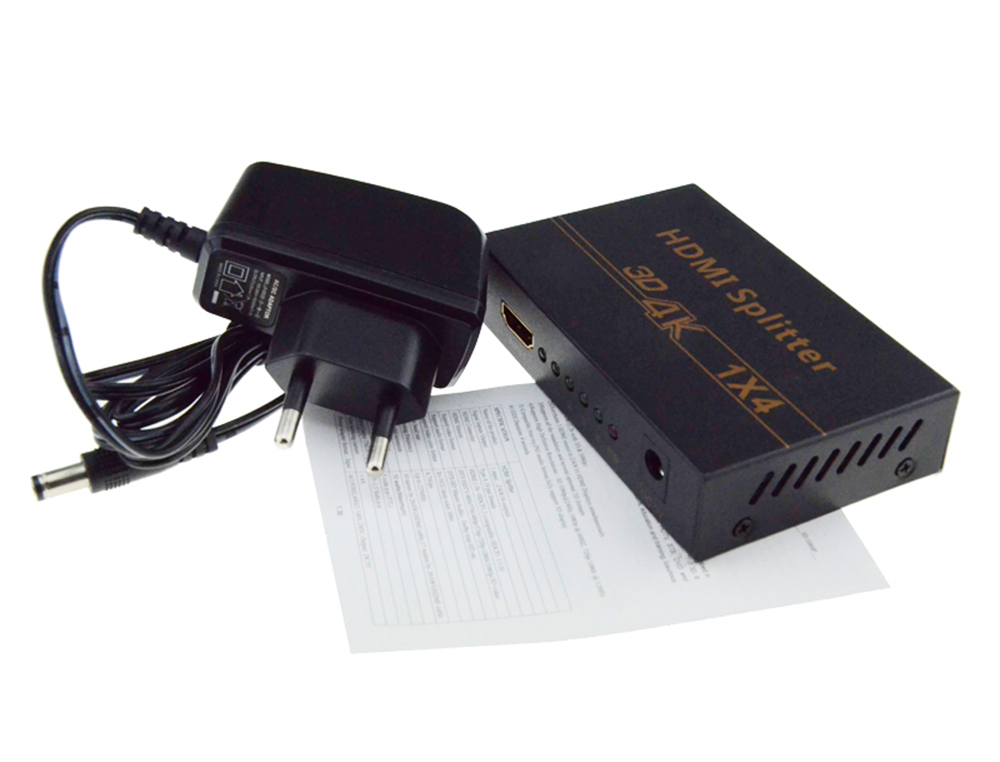

Packing List:  Ultra HD 4 Port HDMI Splitter 1x4,HDMI Splitter 1 In 4 Out Splitter HDMI 1.4 Divisor 4Kx2K 1080P 3D For HDTV Projector

1.Main Adapter- 1x4 HDMI Splitter 4Kx2K

2.DC5V Power Supply(US EU UK AU Power Supply for your choice)

3.User Manual
