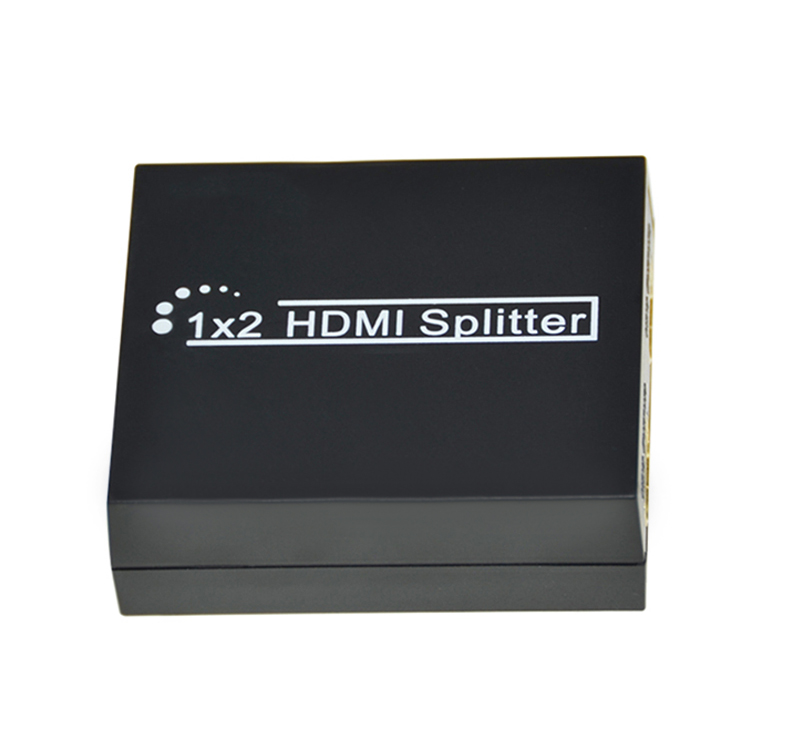

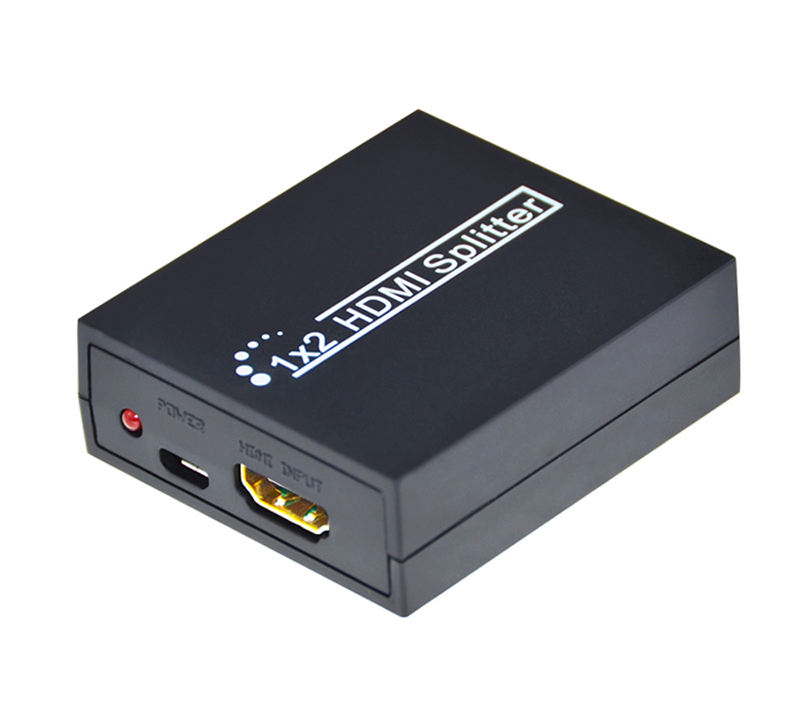

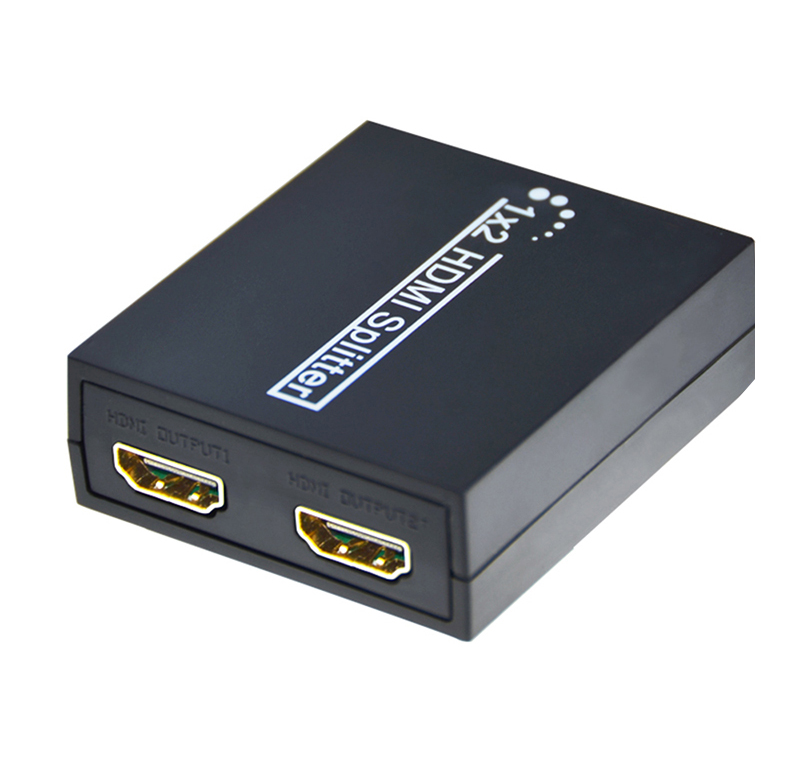

HDMI Splitter 1x2- plastic case HDMI Splitter for Full HD 1080P 3D support HDMI Splitter 1 input 2 output Box with USB cable
Instruction:HDMI Splitter 1x2-plastic case HDMI Splitter 1 input 2 output switcher splitter hdmi support Full HD 1080P with USB cable
The HDMI Splitter uses a single HDMI sources, accessing to multiple HDMI sinks. The 1x2 Splitter allows one HDMI devices to be split easily to two HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
FEATURES:HDMI Splitter 1x2-plastic case HDMI Splitter 1 input 2 output switcher splitter hdmi support Full HD 1080P with USB cable
1)HDMI TM (1.3b with 3D & 1080p)
2)Distributes 1 HDMI source to 2 HDMI Displays simultaneously.
3)Supports all the mandatory and several optional 3D formats
4)Supports High Definition Resolutions : 3D 1080p@24Hz,1080p @ 60HZ, 720p/1080i @ 120Hz
5) Compatible blue-ray,PS3 media format,fully support 3D display
6) EIDI Duration: 4 seconds
|
SPECIFICATION |
|
|
Name of the product |
1× 2 HDMI Splitter |
|
Signal Inputs/ Output |
1 input ...2 outputs |
|
HDMI Connector |
Type A 19 pin female |
|
HDMI Version |
HDMI 1.3b |
|
HDCP Version |
HDCP 1.2 (compatible with 1.1/1.0) |
|
HDMI Resolution |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Support video color format |
24bit/deep color 30bit 36bit |
|
Support audio format |
DTS-HD/Dolly-true HD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
Max bandwidth |
225MHz |
|
Max baud rate |
6.75Gps |
|
Input cable distance |
≤10m HDMI AWG26 |
|
Output cable distance |
≤15m AWG26 HDMI 1.4 standard cable |
|
Input/output DDC Signal |
5 volts p-p (TTL) |
|
Input/Output TMDS Signal |
0.5~1.5 Volts p-p |
|
Max working current |
1.4A |
|
Power adapter format... Input |
AC(5OHZ,60HZ) 100V-240V;Output: DC5V |
|
Operating Temperature range |
(- 15 to + 55 Celsius degree) |
|
Operating Humidity range |
5 to 90% RH (No Condensation) |
|
Power Supply |
micro USB power supplier cable |
|
Accessories with the Machine |
a) 5V power adapter b ) one pc of manual |
|
Size |
62x54x20mm |
|
NW. |
39g |
Packing List: HDMI Splitter 1x2-plastic case HDMI Splitter 1 input 2 output switcher splitter hdmi support Full HD 1080P with USB cable
1.Main Adapter- HDMI Splitter 1x2
2.USB Cable Power Supply
3.User Manual
|
