  Home - Products -HDMI Splitter

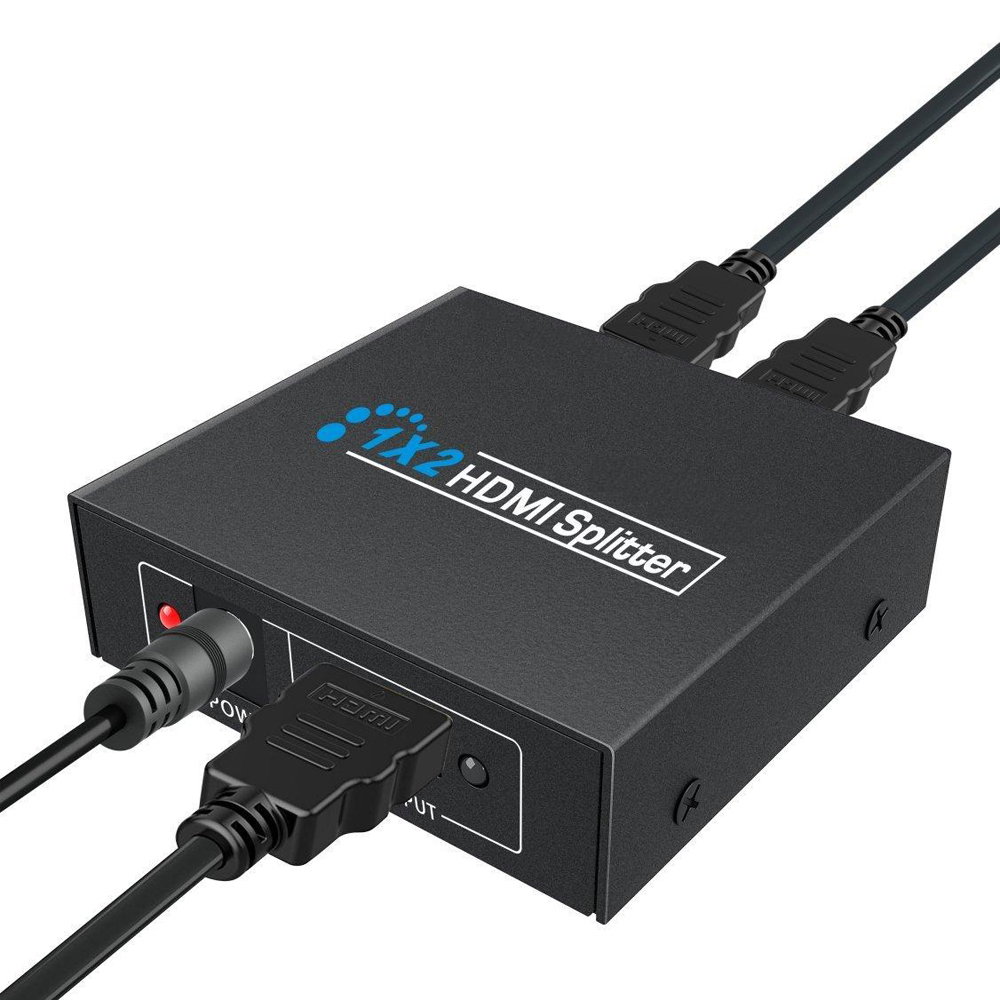

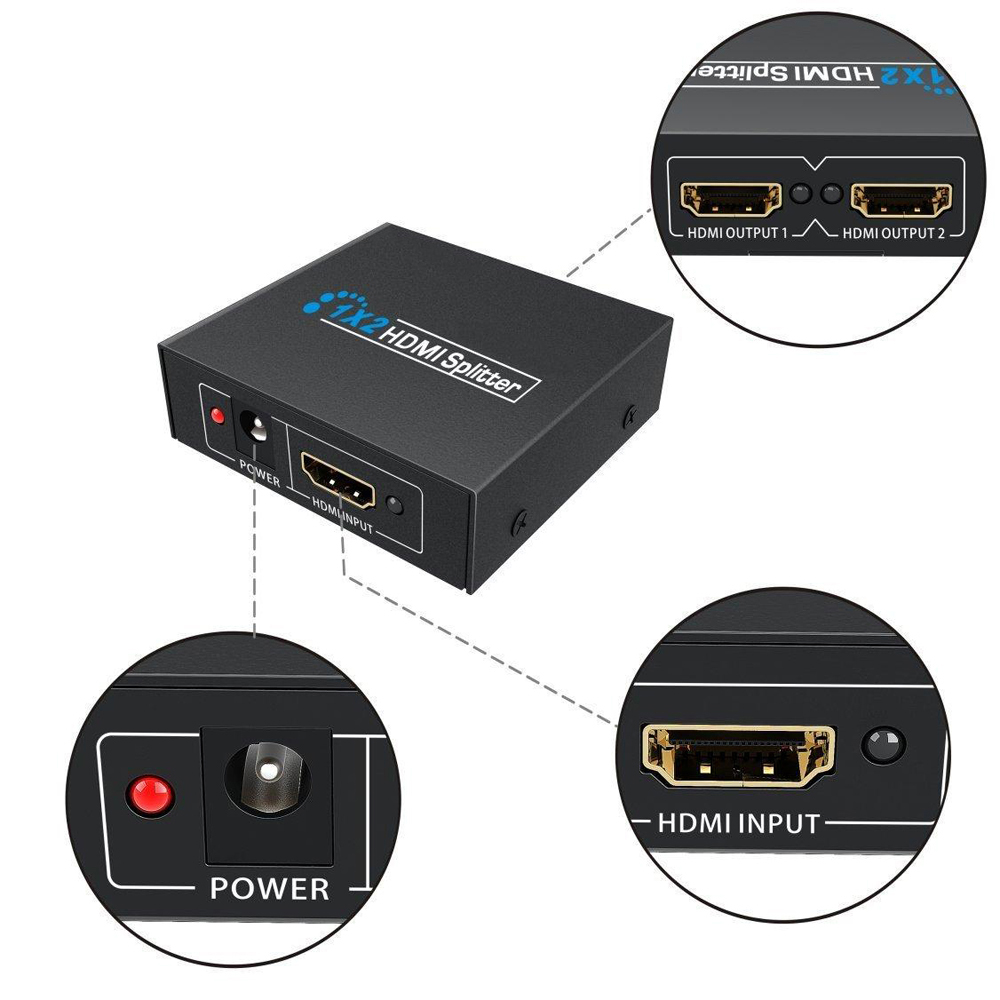

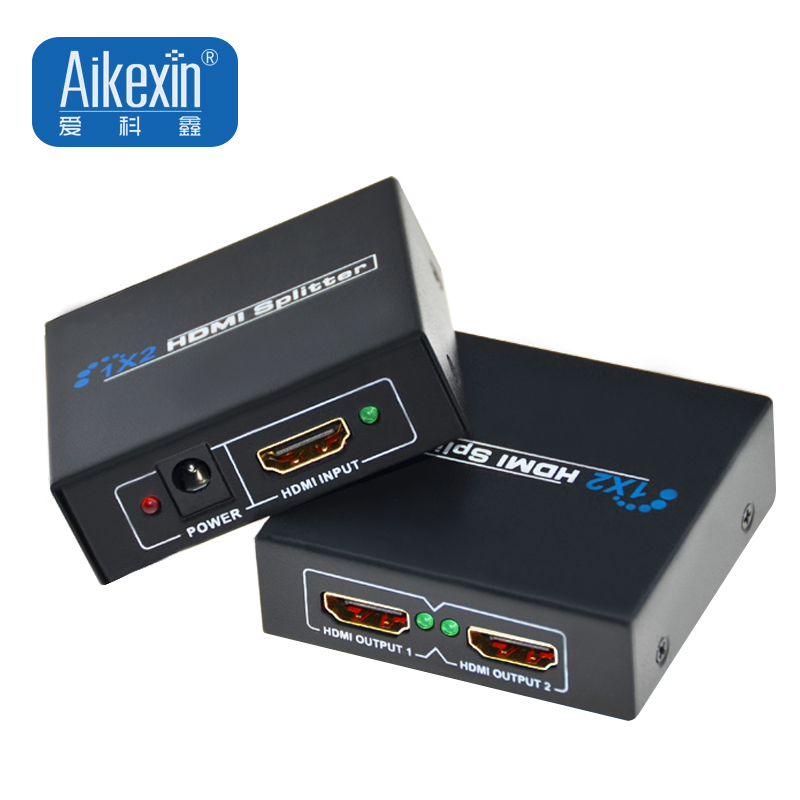

DK102

HDMI Splitter 1x2

Introduction:
1x2 HDMI splitter distributes 1 HDMI source to 2 HDMI displays simultaneously.
It offers HD video solution for super market , shopping mall , HDTV, STB, DVD, projector factory, noise, data control center , information distribution, conference room presentation, education and training, corporation show room & home theater etc.

Description

2 Port HDMI Splitter 1x2 Distribuidor Divisor HDMI Splitter 1 input 2 output support Full HD 1080P 3D with Power Supply​

Instruction: 2 Port HDMI Splitter 1x2 Distribuidor Divisor Splitter 1 input 2 output HDMI support Full HD 1080P 3D with Power Supply


    1x2 HDMI splitter distributes 1 HDMI source to 2 HDMI displays simultaneously.
It offers HD video solution for super market , shopping mall , HDTV, STB, DVD, projector factory, noise, data control center , information distribution, conference room presentation, education and training, corporation show room & home theater etc.

FEATURES: 2 Port HDMI Splitter 1x2 Distribuidor Divisor Splitter 1 input 2 output HDMI support Full HD 1080P 3D with Power Supply




1)HDMI TM (1.3b with 3D & 1080p)

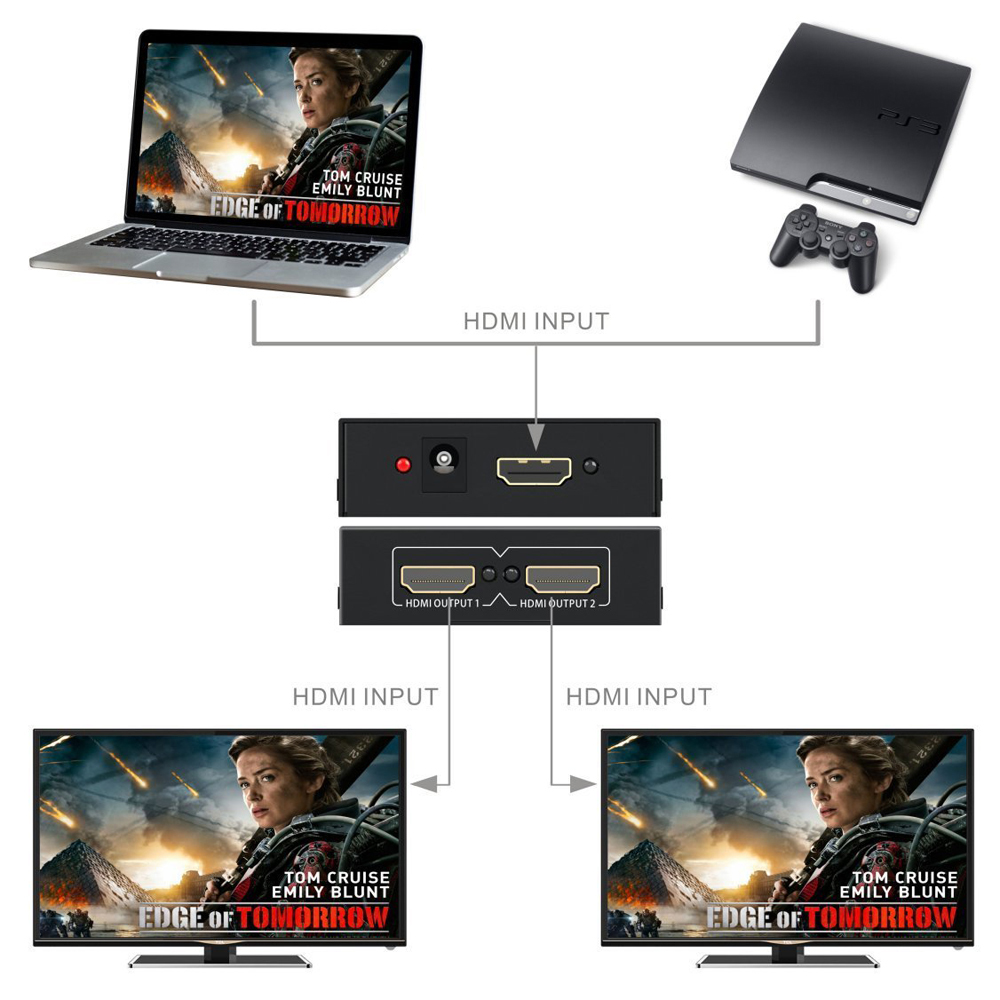

2)Distributes 1 HDMI source to 2 HDMI Displays simultaneously.
3)Supports all the mandatory and several optional 3D formats
4)Supports High Definition Resolutions : 3D 1080p@24Hz,1080p @ 60HZ, 720p/1080i @ 120Hz
5) Compatible blue-ray,PS3 media format,fully support 3D display
6) EIDI Duration: 4 seconds

SPECIFICATION

Name of the product                              HDMI Splitter 1x2
Signal Inputs/ Output                             1 input 2 outputs
Housing Material & Color                       Metal case & black
HDMI Connector                                    Type A 19 pin female
HDMI Version                                         HDMI 1.3b +HDCP1.2 (compatible HDCP1.1/1.0)
Support video format                              DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080p/3D video
Support audio format                              DTS-HD Master Audio、Dolby true-HD etc.
Support video color format                     Xv-YCC/deep color 36bit
Max baud rate                                         6.75Gps
Operating Frequency                              Up to 225MHz
Max.cable extension                               10 meters by 28AWGHDMI cable;15 meters by 26AWGHDMI cable
Power consumption                                10 watts(Maximum)
Input/output DDC Signal                         5 volts p-p (TTL)
Input/Output TMDS Signal                      0.5~1.5 Volts p-p
Max working current                                1.4A
Power adapter format... Input                  AC(5OHZ,60HZ) 100V-240V; Output: DC5V
Operating Temperature range                 (- 15 to + 55 Celsius degree)
Operating Humidity range                        5 to 90% RH (No Condensation)
Size                                                          65x61x20mm
NW.                                                          95g


Packing List:2 Port HDMI Splitter 1x2 Distribuidor Divisor Splitter 1 input 2 output HDMI support Full HD 1080P 3D with Power Supply
1.Main Adapter- HDMI Splitter 1x2
2.DC5V Power Supply
3.User Manual
