INTRODUCTION:   Ultra HD 4K 2 Port HDMI Splitter 1x2 Splitter Signal Distributor Divisor HDMI 1.4 Splitter 1 In 2 Out support 4Kx2K
Newest 1.4v HDMI Splitter 1x2 supports all the mandatory and several optional 4k formats described in HDMI 1.4 specifications, maintains sharp HDTV resolution up to 4kx2k full HD and 3D. It offers HD video solutions for supper market, shopping mall; HDTV, STB, DVD and projector factory; data control center; conference rooms; education and training; luxurious house; home theaters etc.

FEATURES: Ultra HD 4K 2 Port HDMI Splitter 1x2 Splitter Signal Distributor Divisor HDMI 1.4 Splitter 1 In 2 Out support 4Kx2K
1)HDMI 1.4V with 4Kx2K

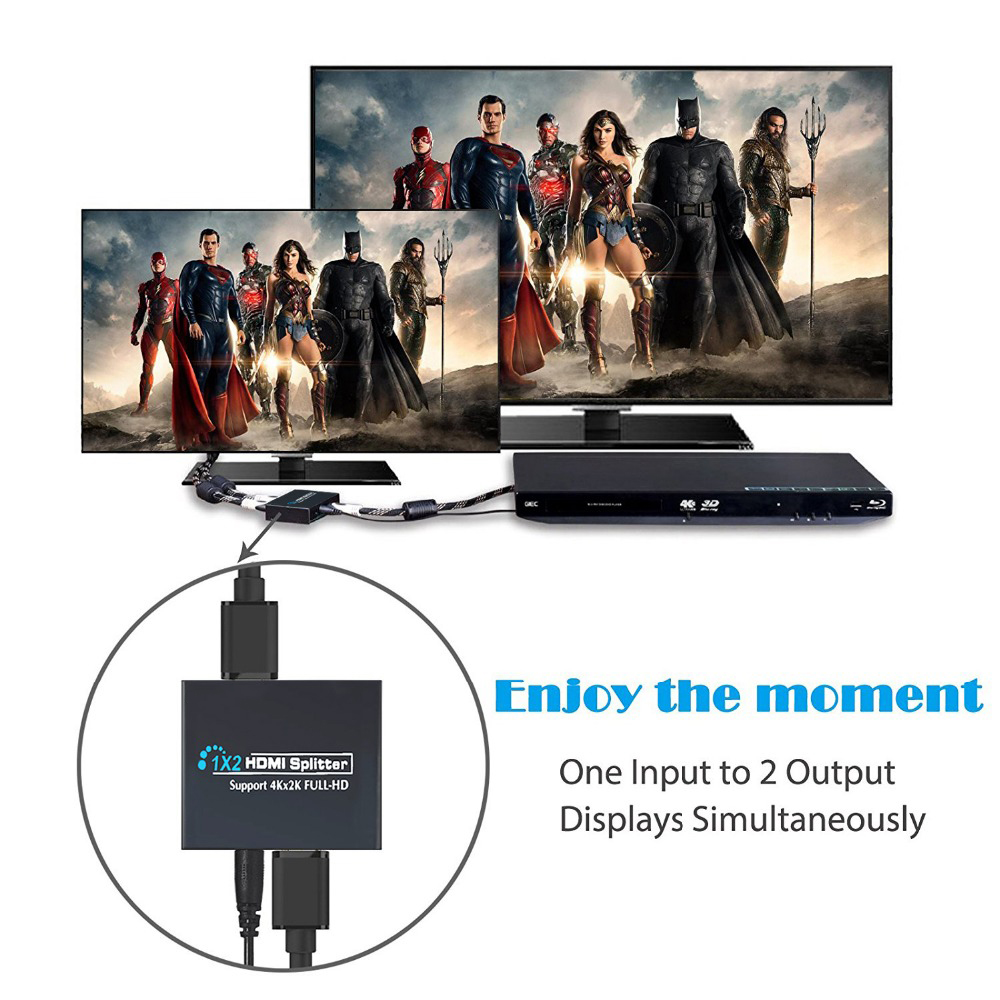

2)Distributes 1 HDMI source to 2 HDMI Displays simultaneously.
3)Supports all the mandatory and several optional 4k formats
4)Supports High Definition Resolutions : 3840x2160@30Hz,3D 1080p@24HZ, 1080P@60Hz,  720p/1080i @ 120Hz
5) Compatible blue-ray,PS3 media format,fully support 3D,4K display
6) EIDI Duration: 4 seconds
SPECIFICATION:

Name of the product                        HDMI Splitter
Signal Inputs/ Output                       1 input ...2 outputs
HDMI Connector                              Type A 19 pin female
HDMI Version                                   HDMI 1.4V +HDCP1.3(compatible HDMI 1.3/1.2/1.1/1.0)
Support video format                        DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080p/3D/3840x2160 video
Support audio format                        DTS-HD Master Audio、Dolby true-HD etc.
Support video color format               Xv-YCC/deep color up to 48bit
Max baud rate                                  10.2Gps
Operating Frequency                        Up to 340MHz
Max.cable extension                        15 meters by 28AWGHDMI cable;20 meters by 26AWGHDMI cable
Power consumption                          10 watts(Maximum)
Input/output DDC Signal                   5 volts p-p (TTL)
Input/Output TMDS Signal                0.5~1.5 Volts p-p
Max working current                          1.4A
Power adapter format... Input            AC(50HZ,60HZ) 100V-240V; Output: DC5V
Operating Temperature range           (- 15 to + 55 Celsius degree)
Operating Humidity range                  5 to 90% RH (No Condensation)

PACKING CONTENTS: Ultra HD 4K 2 Port HDMI Splitter 1x2 Splitter Signal Distributor Divisor HDMI 1.4 Splitter 1 In 2 Out support 4Kx2K
1) Main Adapter-HDMI splitter 1x2
2) 5VDC Power Supply
3) User Manual
