  Home - Products -HDMI Splitter


4KDK102B

4K HDMI Splitter 1x2

Introduction:
Newest 1.4v HDMI Splitter 1x2 supports all the mandatory and several optional 4k formats described in HDMI 1.4 specifications, maintains sharp HDTV resolution up to 4kx2k full HD and 3D. It offers HD video solutions for supper market, shopping mall; HDTV, STB, DVD and projector factory; data control center; conference rooms; education and training; luxurious house; home theaters etc.

Description

1x2 HDMI Splitter,1.4v HDMI Splitter 1 input 2 output Splitter HDMI Support 4Kx2K 3840x2160 at 30Hz with CEC Function

INTRODUCTION:  1x2 HDMI Splitter,1.4v HDMI Splitter 1 input 2 output Splitter HDMI Support 4Kx2K 3840x2160 at 30Hz with CEC Function

Newest 1.4v HDMI Splitter 1x2 supports all the mandatory and several optional 4k formats described in HDMI 1.4 specifications, maintains sharp HDTV resolution up to 4kx2k full HD and 3D. It offers HD video solutions for supper market, shopping mall; HDTV, STB, DVD and projector factory; data control center; conference rooms; education and training; luxurious house; home theaters etc.



FEATURES: 1x2 HDMI Splitter,1.4v HDMI Splitter 1 input 2 output Splitter HDMI Support 4Kx2K 3840x2160 at 30Hz with CEC Function

1)HDMI 1.4V with 4Kx2K

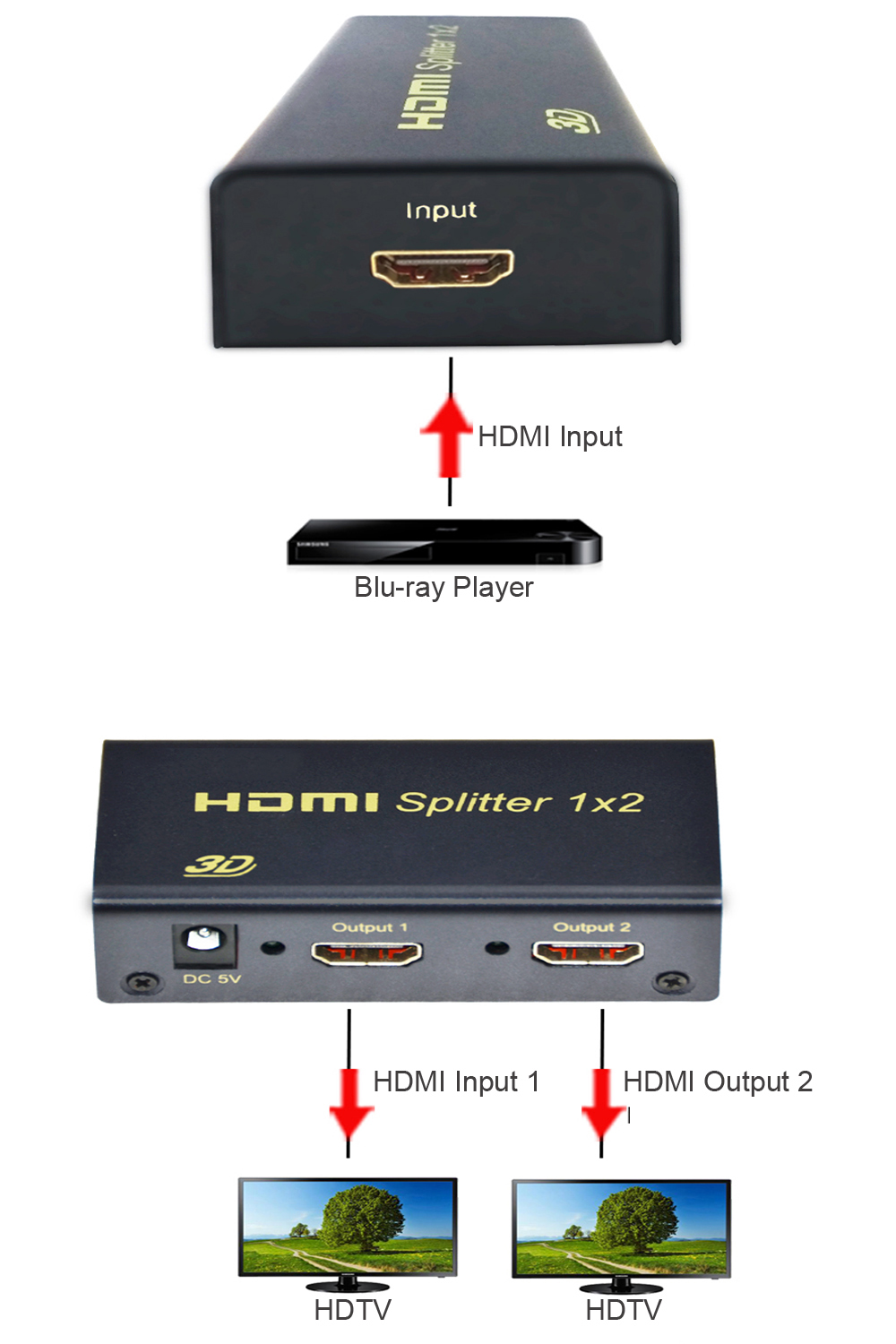

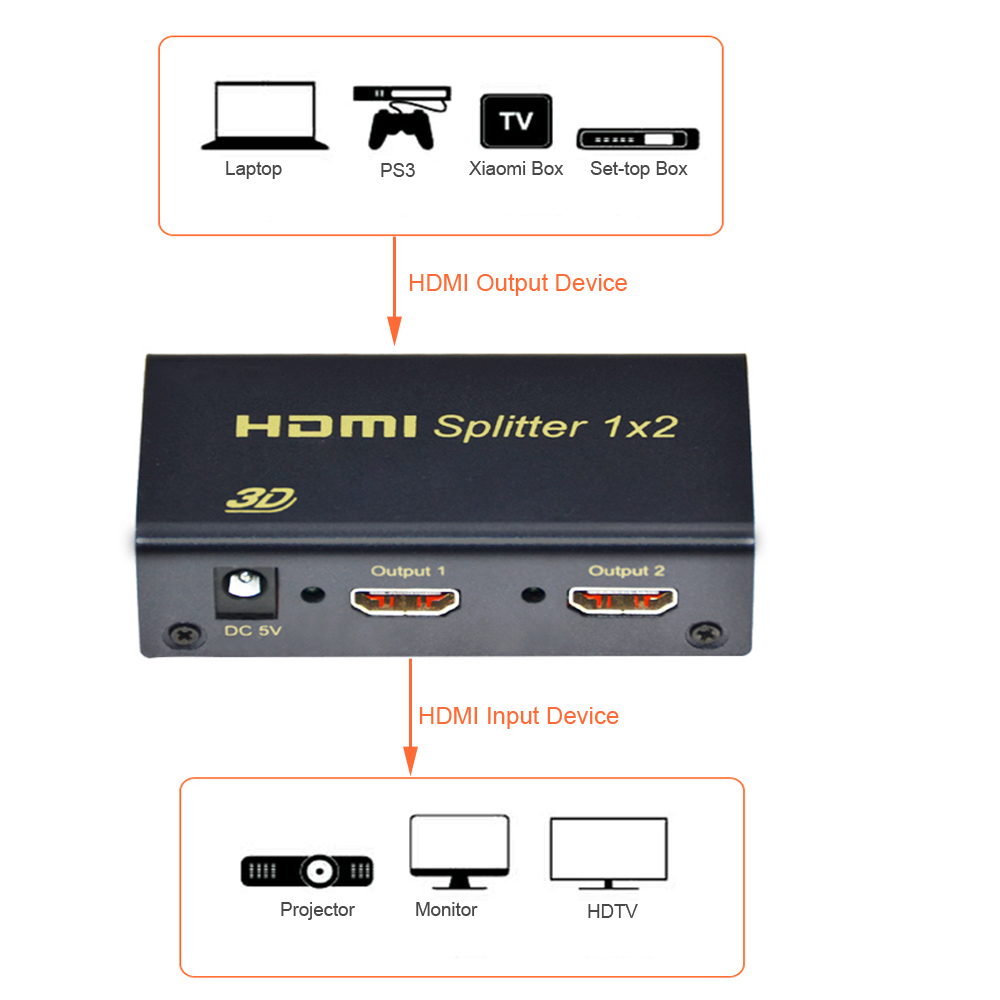

2)Distributes 1 HDMI source to 2 HDMI Displays simultaneously.

3)Supports all the mandatory and several optional 4k formats

4)Supports High Definition Resolutions : 3840x2160@30Hz,3D 1080p@24HZ, 1080P@60Hz,  720p/1080i @ 120Hz

5) Compatible blue-ray,PS3 media format,fully support 3D,4K display

6) EIDI Duration: 4 seconds

SPECIFICATION:



Name of the product

      HDMI Splitter

Signal Inputs/  Output

1 input ...2 outputs

HDMI Connector

Type A 19 pin female

HDMI Version

HDMI 1.4V +HDCP1.3(compatible HDMI 1.3/1.2/1.1/1.0)

Support video format

DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080p/3D/3840x2160 video

Support audio format

DTS-HD Master Audio、Dolby true-HD etc.

Support video color format

Xv-YCC/deep color up to 48bit

Max baud rate

10.2Gps

Operating Frequency

Up to 340MHz

Max.cable extension

15 meters by 28AWGHDMI cable;20 meters by 26AWGHDMI cable

Power consumption

10 watts(Maximum)

Input/output DDC Signal

5 volts p-p (TTL)

Input/Output TMDS Signal

0.5~1.5 Volts p-p

Max working current

1.4A

Power adapter format... Input

AC(50HZ,60HZ) 100V-240V; Output: DC5V

Operating Temperature range

(- 15 to + 55 Celsius degree)

Operating Humidity range

5 to 90% RH (No Condensation)



PACKING CONTENTS: 1x2 HDMI Splitter,1.4v HDMI Splitter 1 input 2 output Splitter HDMI Support 4Kx2K 3840x2160 at 30Hz with CEC Function

1) Main Adapter- 4Kx2K HDMI splitter 1x2

2) 5V DC Power Supply

3) User Manual
