4 port HDMI Splitter 1 in 4 out HDMI 1.3/1.4 Powered Distributor Splitter 1x4 for 4Kx2K Full HD 1080P and 3D Compatible
Instruction: 4 port HDMI Splitter 1 in 4 out HDMI 1.3 Powered Distributor Splitter 1x4 for Full HD 1080P and 3D Compatible

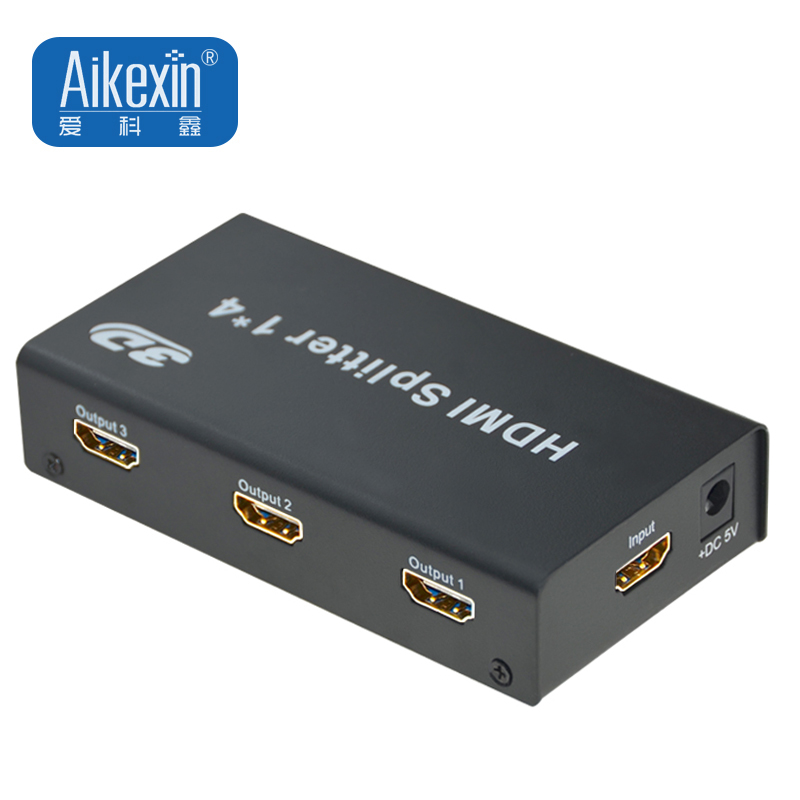

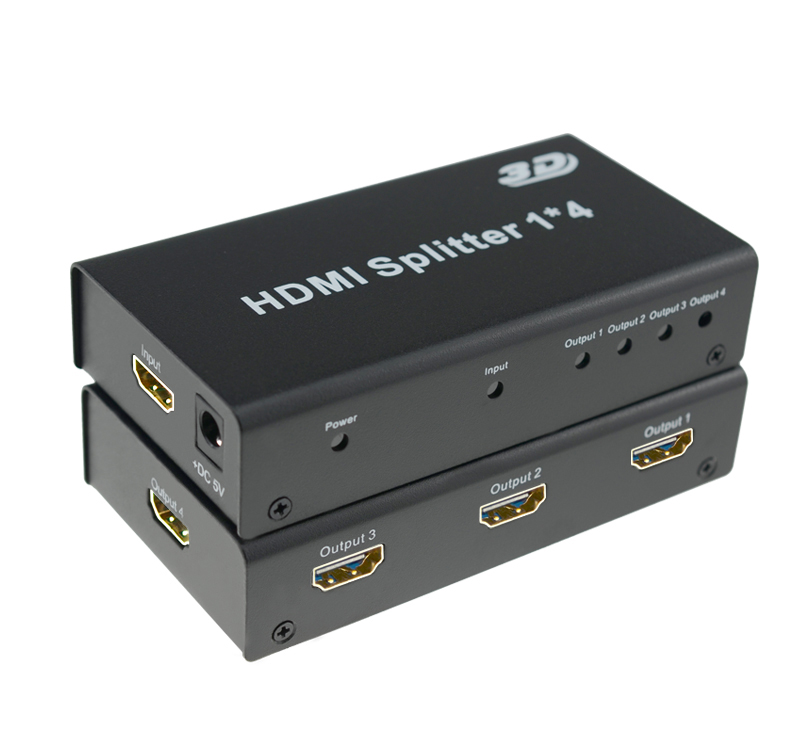

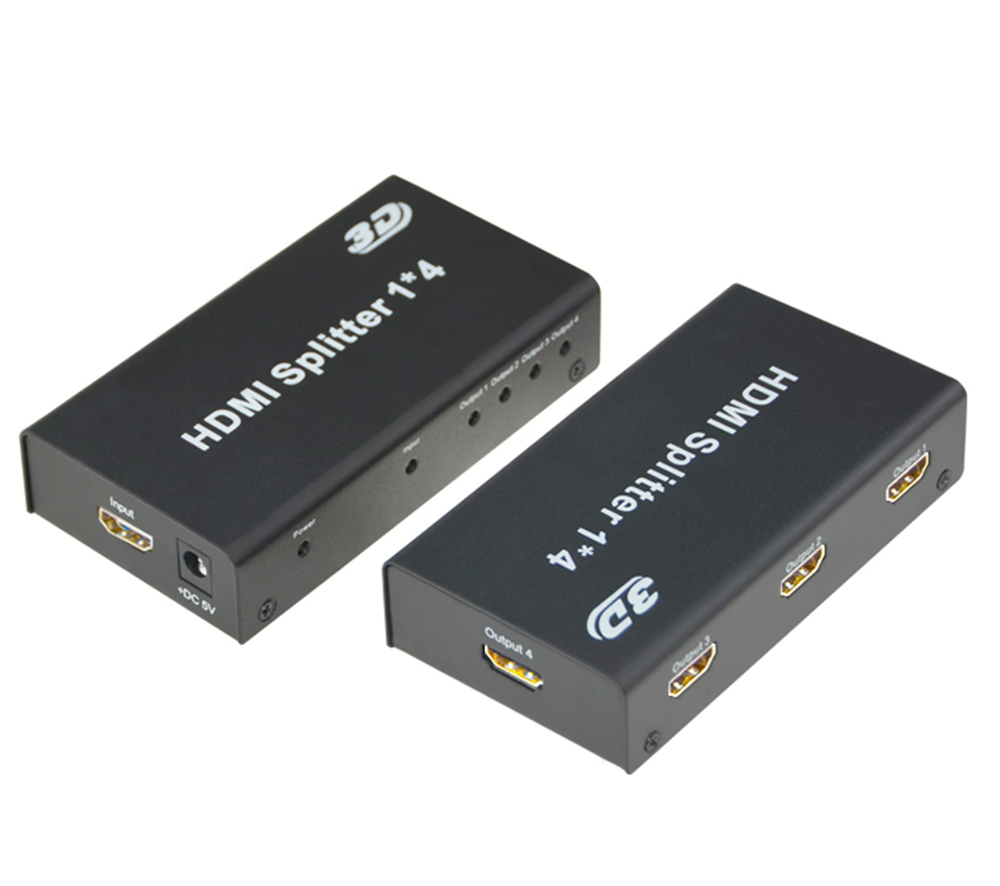

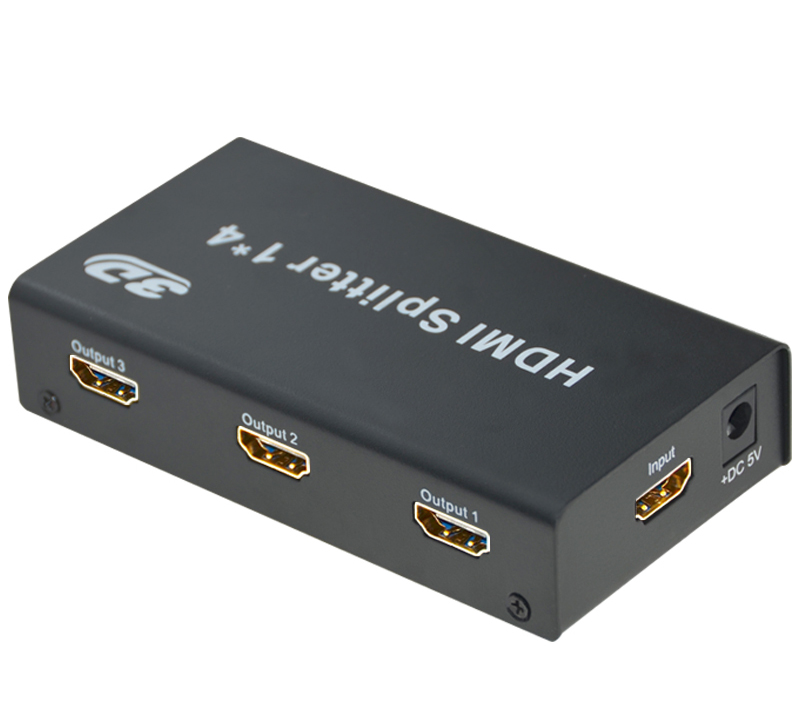

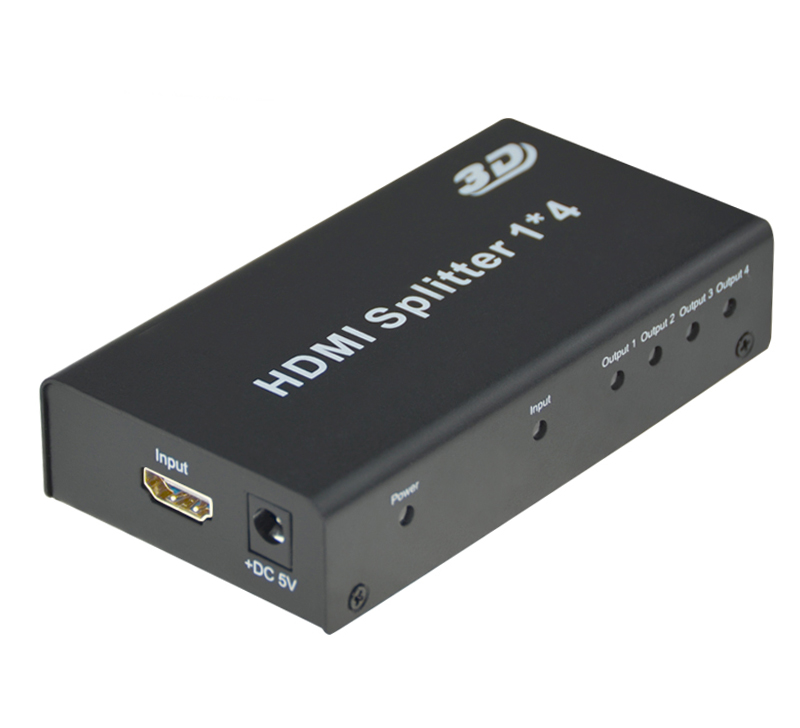

The 1×4 HDMI Splitter uses a single HDMI sources, accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
FEATURES:4 port HDMI Splitter 1 in 4 out HDMI 1.3 Powered Distributor Splitter 1x4 for Full HD 1080P and 3D Compatible
1)HDMI TM (1.3b with 3D & 1080p)
2)Distributes 1 HDMI source to 4 HDMI Displays simultaneously.
3)Supports all the mandatory and several optional 3D formats
4)Supports High Definition Resolutions : 3D 1080p@24Hz,1080p @ 60HZ, 720p/1080i @ 120Hz
5) Compatible blue-ray,PS3 media format,fully support 3D display
6) EIDI Duration: 4 seconds
|
SPECIFICATION |
|
|
Name of the product |
1x4 HDMI Splitter |
|
Signal Inputs/ Output |
1 input ...4 outputs |
|
HDMI Connector |
Type A 19 pin female |
|
HDMI Version |
HDMI 1.3b |
|
HDCP Version |
HDCP 1.2 (compatible with 1.1/1.0) |
|
HDMI Resolution |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Support video color format |
24bit/deep color 30bit 36bit |
|
Support audio format |
DTS-HD/Dolly-true HD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
Max bandwidth |
225MHz |
|
Max baud rate |
6.75Gps |
|
Input cable distance |
≤10m HDMI AWG26 |
|
Output cable distance |
≤15m AWG26 HDMI 1.4 standard cable |
|
Input/output DDC Signal |
5 volts p-p (TTL) |
|
Input/Output TMDS Signal |
0.5~1.5 Volts p-p |
|
Max working current |
1.4A |
|
Power adapter format... Input |
AC(5OHZ,60HZ) 100V-240V;Output: DC5V |
|
Operating Temperature range |
(- 15 to + 55 Celsius degree) |
|
Operating Humidity range |
5 to 90% RH (No Condensation) |
|
Power Supply |
5V |
|
Accessories with the Machine |
a) 5V power adapter b ) one pc of manual |
|
Size |
115x62x25mm |
|
NW. |
179g |
Packing List: 4 port HDMI Splitter 1 in 4 out HDMI 1.3 Powered Distributor Splitter 1x4 for Full HD 1080P and 3D Compatible
1.Main Adapter- HDMI Splitter 1x4
2.DC5V Power Supply
3.User Manual |
