  Home - Products -HDMI Splitter


DK108

HDMI Splitter 1X8

Introduction:
1.3b HDMI splitter supports all the mandatory and several optional 3D formats described in HDMI 1.3 specifications, maintains sharp HDTV resolution up to 1080p full HD and 3D. It offers HD video solutions for supper market, shopping mall; HDTV, STB, DVD and projector factory; data control center; conference rooms; education and training; luxurious house; home theaters etc.

Description

1x8 HDMI Splitter 8 Port Splitter V1.3 HDMI 1 In 8 Out Support 3D,Full HD 1080P,4Kx2K HD Display on 8 TVs Metal Case



1x8 HDMI Splitter 8 Port 1x8 1 In 8 Out V1.3 Splitter HDMI

INTRODUCTION:1x8 HDMI Splitter 8 Port Splitter V1.3 HDMI 1 In 8 Out Support 3D,Full HD 1080P HD Display on 8 TVs Metal Case

1.3b HDMI splitter supports all the mandatory and several optional 3D formats described in HDMI 1.3 specifications, maintains sharp HDTV resolution up to 1080p full HD and 3D. It offers HD video solutions for supper market, shopping mall; HDTV, STB, DVD and projector factory; data control center; conference rooms; education and training; luxurious house; home theaters etc.



FEATURES: 1x8 HDMI Splitter 8 Port Splitter V1.3 HDMI 1 In 8 Out Support 3D,Full HD 1080P HD Display on 8 TVs Metal Case

1)HDMI TM (1.3b with 3D & 1080p)

2)Distributes 1 HDMI source to 8  HDMI Displays simultaneously.

3)Supports all the mandatory and several optional 3D formats

4)Supports High Definition Resolutions : 3D 1080p@24Hz,1080p @ 60HZ, 720p/1080i @ 120Hz

5) Compatible blue-ray,PS3 media format,fully support 3D display

6) EIDI Duration: 4 seconds

SPECIFICATION



Name of the product

HDMI Splitter

Signal Inputs/ Output

1 input ...8 outputs

HDMI Connector

Type A 19 pin female

HDMI Version

HDMI 1.3b +HDCP1.2 (compatible HDCP1.1/1.0)

Support video format

DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080p/3D video

Support audio format

DTS-HD Master Audio、Dolby true-HD etc.

Support video color format

Xv-YCC/deep color 36bit

Max baud rate

6.75Gps

Operating Frequency

Up to 225MHz

Max.cable extension

10 meters, by 28AWGHDMI cable;15 meters by 26AWGHDMI cable

Power consumption

10 watts(Maximum)

Input/output DDC Signal

5 volts p-p (TTL)

Input/Output TMDS Signal

0.5~1.5 Volts p-p

Max working current

1.4A

Power adapter format... Input

AC(5OHZ,60HZ) 100V-240V; Output: DC5V

Operating Temperature range

(- 15 to + 55 Celsius degree)

Operating Humidity range

5 to 90% RH (No Condensation)

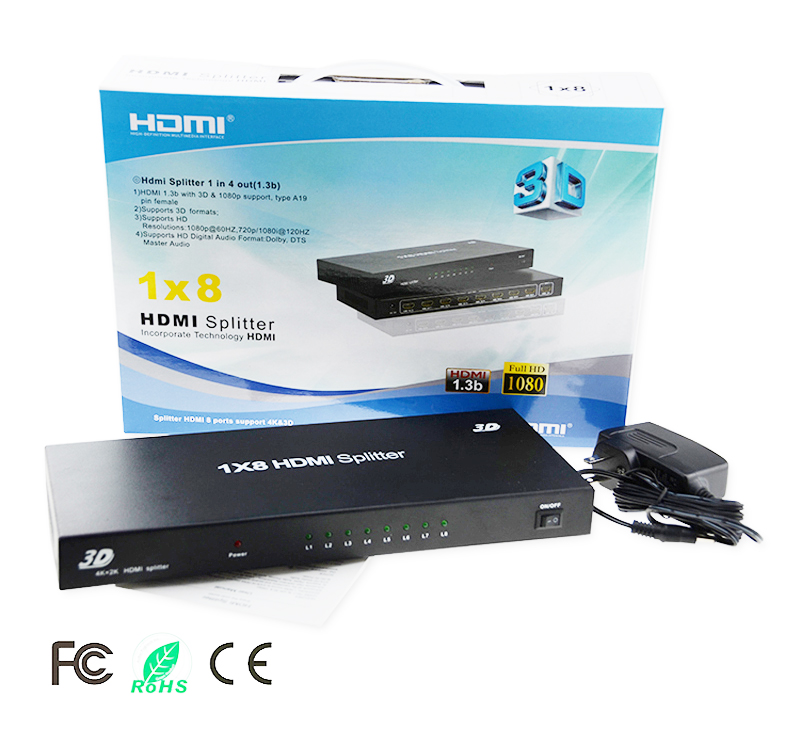

Packing List: 1x8 HDMI Splitter 8 Port Splitter V1.3 HDMI 1 In 8 Out Support 3D,Full HD 1080P HD Display on 8 TVs Metal Case

1.Main Adapter-HDMI Splitter 1x8

2.DC5V Power Supply

3.User Manua
